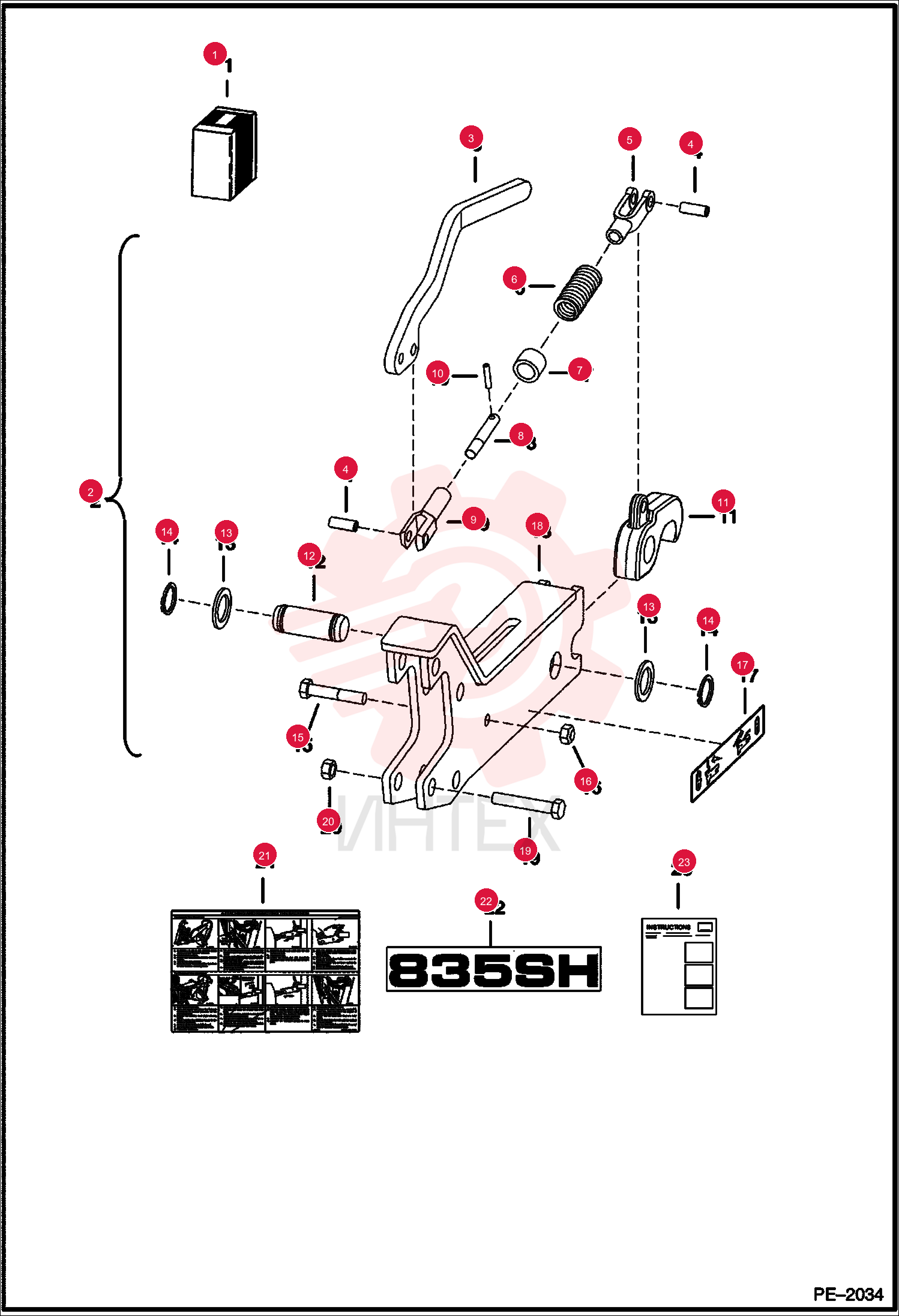

LATCH ASSEMBLY 6815937

LATCH ASSEMBLY 6815937

LATCH ASSEMBLY 6815937

1 6815937

  • 6815937 - LATCH ASSEMBLY
  • L.H. - W/Ref. 2 - 17

2 6815938

  • 6815938 - LATCH ASSEMBLY
  • L.H. - W/Ref. 2 - 17

3 6815923

  • 6815923 - HANDLE
  • L.H.

4 6815924

  • 6815924 - HANDLE
  • L.H.

5 14J5020

  • 14J5020 - PIN
  • ROLL

6 6533159

  • 6533159 - CLEVIS

7 6578253

  • 6578253 - SPRING
  • COMPRESSION

8 6533160

  • 6533160 - BUSHING

9 6533158

  • 6533158 - ROD

10 6704248

  • 6704248 - PIVOT
  • WEDGE

11 14J2520

  • 14J2520 - PIN

12 6816819

  • 6816819 - LATCH

13 6812834

  • 6812834 - PIN
  • PIVOT

14 6532519

  • 6532519 - WASHER

15 22J20

  • 22J20 - SNAP RING

16 17C844

  • 17C844 - BOLT

17 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

18 6815155

  • 6815155 - DECAL
  • lock

19 6815154

  • 6815154 - DECAL
  • lock

20 6815920

  • 6815920 - LATCH

21 17C1244

  • 17C1244 - BOLT

22 85D12

  • 85D12 - NUT
  • 5

23 6814337

  • 6814337 - DECAL
  • 835SH

24 6814338

  • 6814338 - DECAL
  • MOUNTING

25 6902410

  • 6902410 - INSTRUCTIONS
