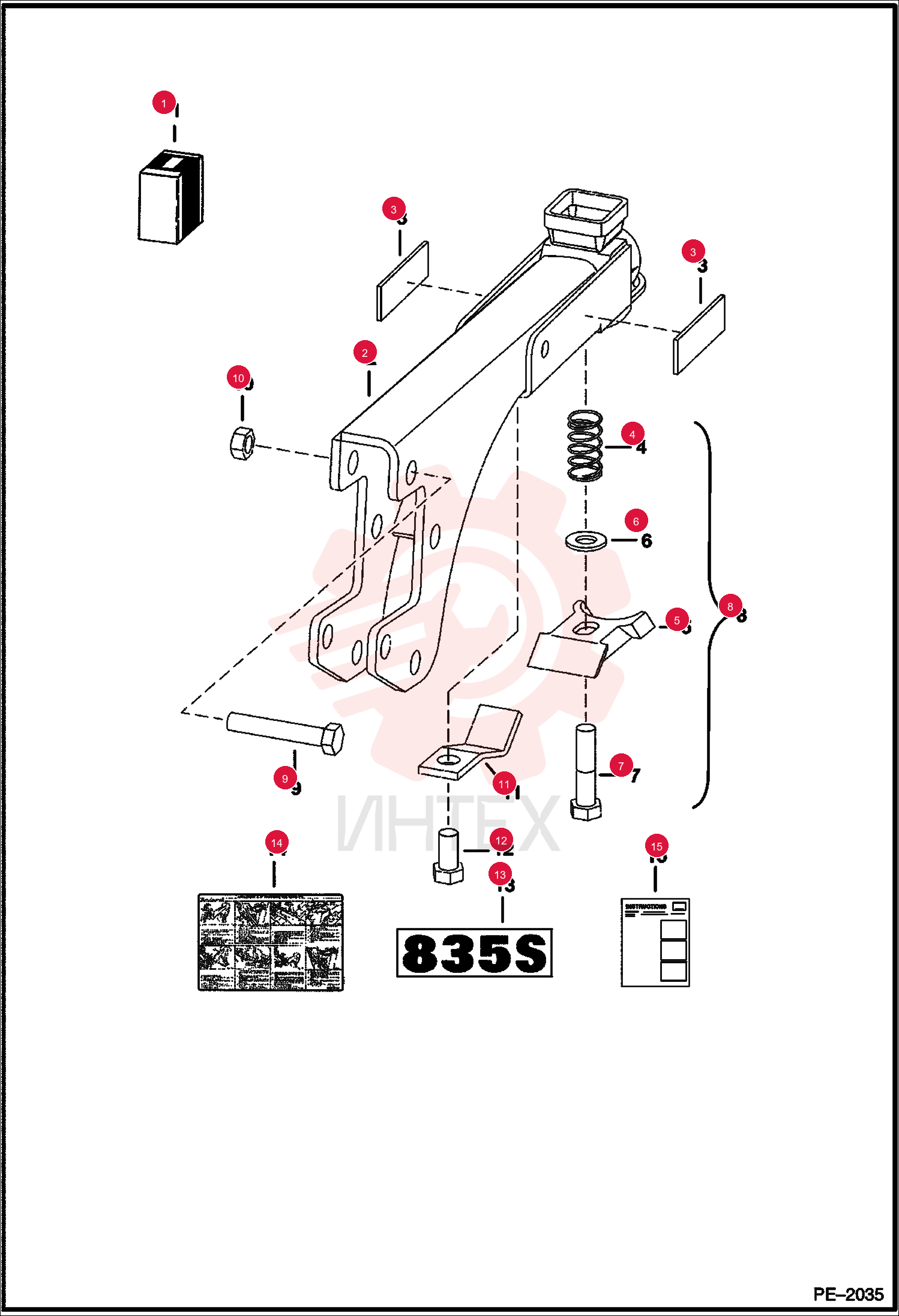

MOUNT 6815572

MOUNT 6815572

MOUNT 6815572

1 6815572

  • 6815572 - MOUNT
  • W/Ref. 3 - 7

2 6592196

  • 6592196 - BRACKET
  • Reinforcing

3 25E25

  • 25E25 - WASHER FLAT PLAIN

4 17C1044

  • 17C1044 - BOLT

5 6598834

  • 6598834 - KIT
  • REPAIR
  • W/Ref. 4 - 7

6 17C1252

  • 17C1252 - BOLT

7 85D12

  • 85D12 - NUT
  • 5

8 17C816

  • 17C816 - BOLT

9 6539352

  • 6539352 - DECAL
  • 835S

10 6538568

  • 6538568 - DECAL
  • Mounting

11 6902411

  • 6902411 - INSTRUCTIONS
