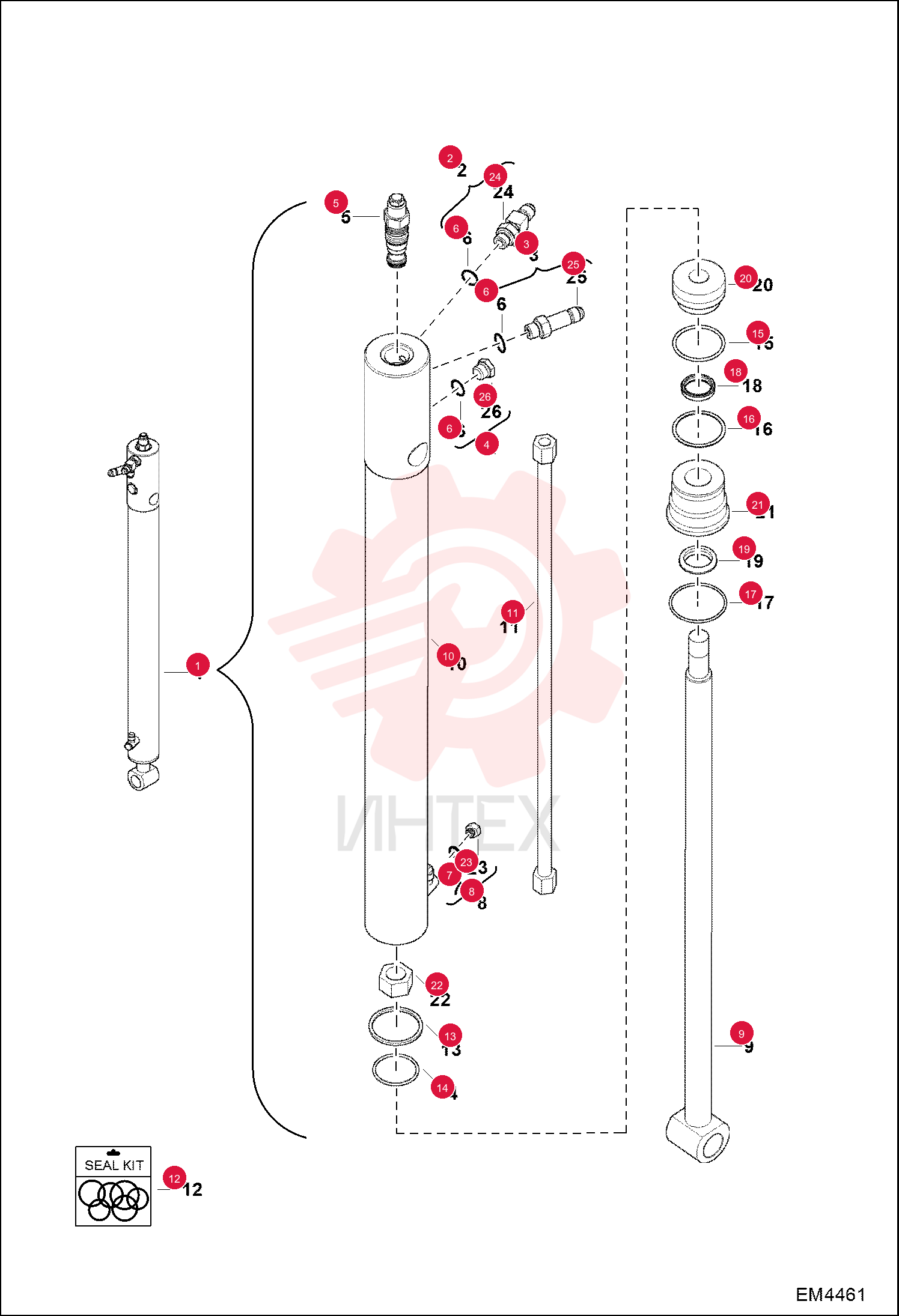

TEE 6814409

TEE 6814409

TEE 6814409

1 6814409

  • 6814409 - TEE
  • W/Ref. 6
  • 24

2 6814410

  • 6814410 - ADAPTER
  • W/Ref. 6
  • 25

3 6812171

  • 6812171 - PLUG
  • W/Ref. 6
  • 26

4 6665481

  • 6665481 - VALVE

5 75K6

  • 75K6 - O-RING

6 75K3

  • 75K3 - O-RING

7 6812170

  • 6812170 - PLUG
  • W/Ref. 7
  • 23

8 6532231

  • 6532231 - ROD

9 6595002

  • 6595002 - TUBE
  • W/Ref. 4
  • 8
  • 17

10 6589968

  • 6589968 - TUBELINE

11 7137771

  • 7137771 - SEAL KIT
  • Ref. 3 & 9-15 - Was 6803472

12 6516231

  • 6516231 - SEAL

13 54K30118

  • 54K30118 - O-RING

14 54K40124

  • 54K40124 - O-RING

15 73K224

  • 73K224 - O-RING

16 82K136

  • 82K136 - O-RING

17 6667323

  • 6667323 - SEAL

18 6666542

  • 6666542 - WIPER
  • ROD CYL

19 6504931

  • 6504931 - PISTON
  • CYL

20 6538595

  • 6538595 - HEAD
  • CYL HYD

21 92D12

  • 92D12 - NUT 5
