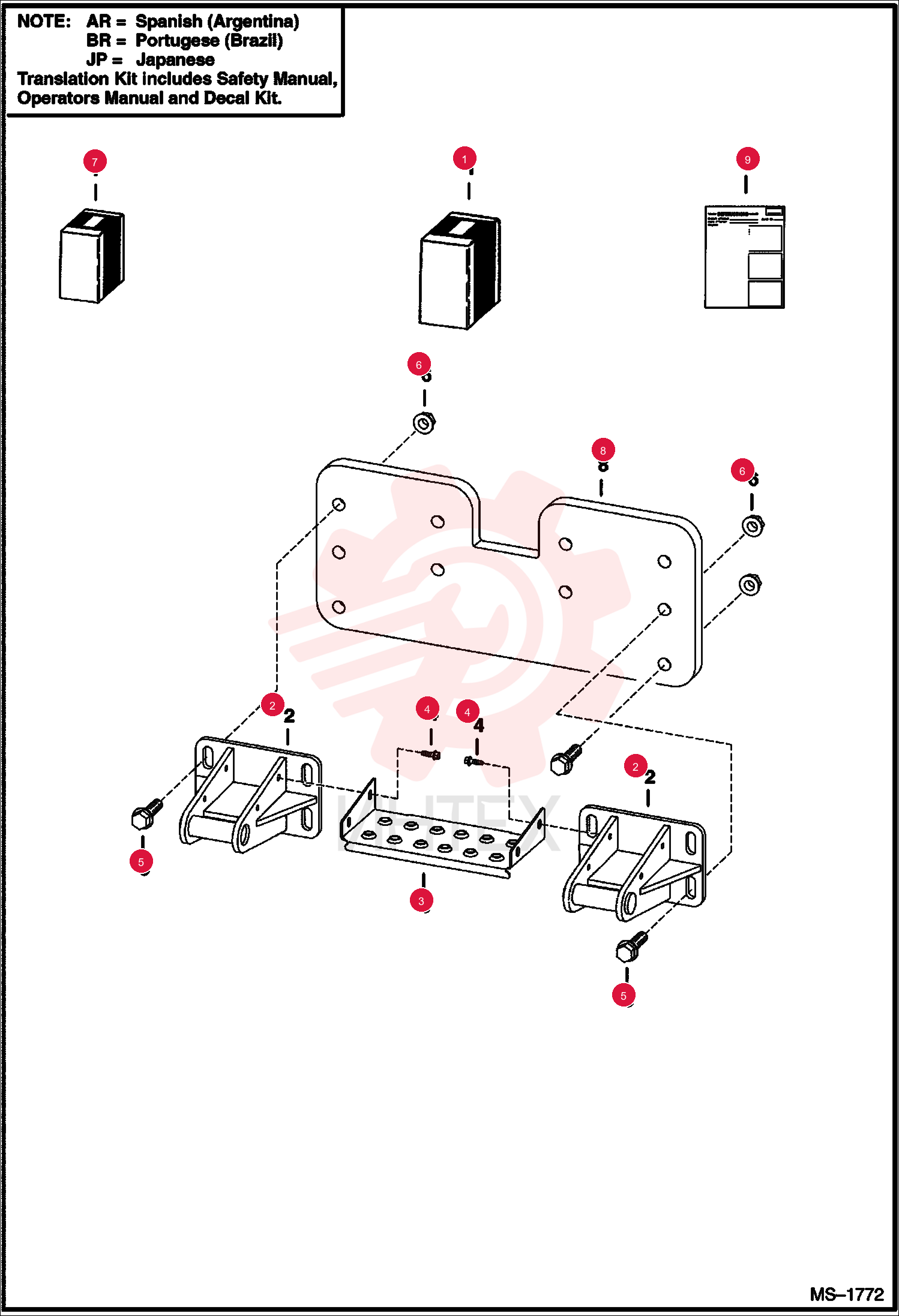

KIT MOUNT BKH 8811 6813148 (2)

KIT MOUNT BKH 8811 6813148 (2)

KIT MOUNT BKH 8811 6813148 (2)

1 6813148

  • 6813148 - KIT MOUNT BKH 8811
  • Ref. 2-9 - Was SALES

2 6812627

  • 6812627 - MOUNT
  • 8811

3 6813078

  • 6813078 - STEP

4 84G3710

  • 84G3710 - SCREW

5 31C1028

  • 31C1028 - BOLT 5

6 53D10

  • 53D10 - NUT

7 6813149BR

  • 6813149BR - KIT
  • TRANSLATION

8 6813149AR

  • 6813149AR - KIT
  • TRANSLATION

9 6815419

  • 6815419 - PLATE

10 6901785

  • 6901785 - INSTRUCTIONS
