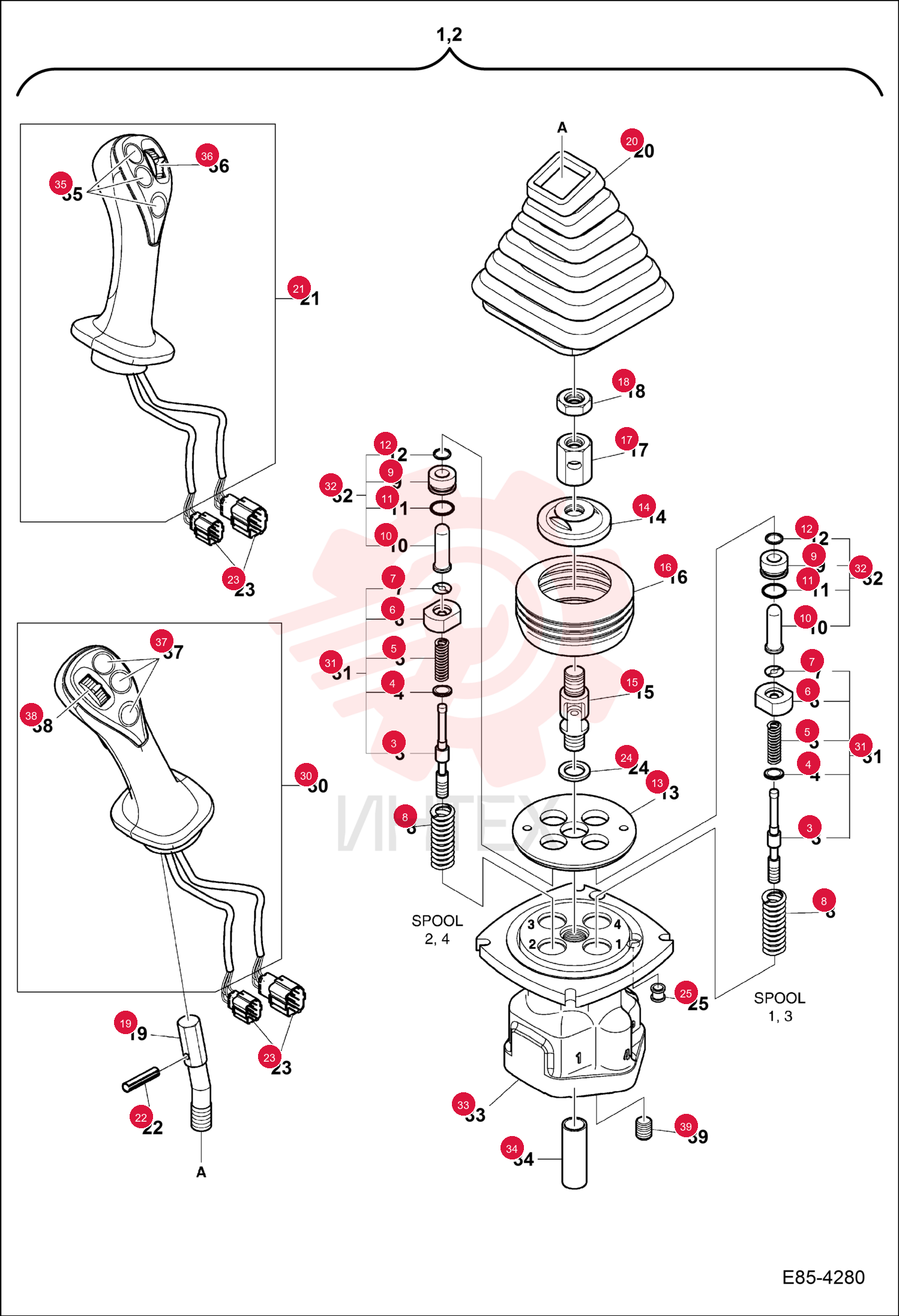

VALVE, JOYSTICK LH 7301831 (2)
1 7301831
- 7301831 - VALVE
- JOYSTICK LH
- - one wire - Was 7300546
2 7301828
- 7301828 - VALVE
- JOYSTICK RH
- - one wire - Was 7300548
3 7003837
- 7003837 - SEAT SPRING
4 7003927
- 7003927 - STOP
5 7296301
- 7296301 - SPRING
6 7003840
- 7003840 - ROD PUSH
7 7007913
- 7007913 - O-RING
- Was 7007912
8 7006819
- 7006819 - SEAL ROD
9 7029288
- 7029288 - PLATE
10 7029927
- 7029927 - PLATE
11 7276049
- 7276049 - SWASHPLATE
12 7003749
- 7003749 - COUPLER JOINT ASSY
13 7028816
- 7028816 - JOINT
- ASSY
14 7028733
- 7028733 - BOOT
- RUBBER
15 7003733
- 7003733 - NUT HEX
16 7029242
- 7029242 - NUT
17 7029391
- 7029391 - SHAFT
18 7028731
- 7028731 - BOOT
- RUBBER
19 7326092
- 7326092 - COVER LH
- black
20 7311740
- 7311740 - PIN SPRING
21 7007859
- 7007859 - PIN SPRING
22 7028923
- 7028923 - CONNECTOR ASSEMBLY
- W/terminals
23 7318638
- 7318638 - CONNECTER ASSY
- W/terminals
24 7311741
- 7311741 - SPACER ROUND
- Was 7030043
25 7276032
- 7276032 - SPACER
26 7003711
- 7003711 - BUSHING
27 7326094
- 7326094 - COVER RH
- black
28 7029408
- 7029408 - KIT
- SPOOL
- Ref. 3-7
29 7283278
- 7283278 - KIT
- SPOOL
- W/Ref. 3-7
30 7029311
- 7029311 - KIT
- PLUG
- W/Ref. 9-12
- 15
- 16
31 7283277
- 7283277 - KIT
- PLUG
- W/Ref. 9-12
- 15
- 16
32 7028772
- 7028772 - BUSHING
33 7296187
- 7296187 - BUSHING
34 7029513
- 7029513 - SWITCH
- PUSH-BUTTON
35 7029452
- 7029452 - SWITCH
- PRESS
36 7029513
- 7029513 - SWITCH
- PUSH-BUTTON
37 7029452
- 7029452 - SWITCH
- PRESS
38 7004671
- 7004671 - PLUG PT 1/8
