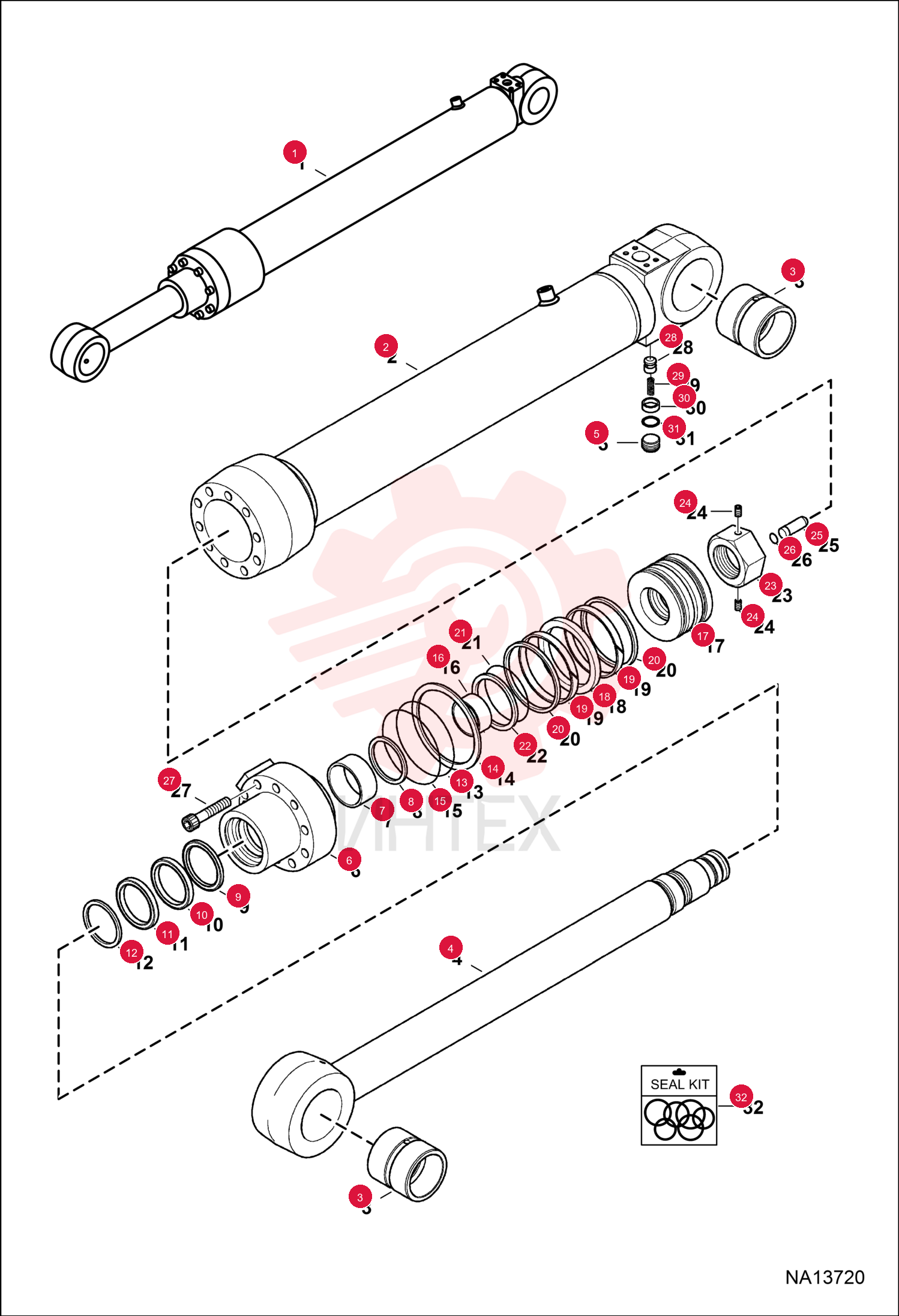

CYLINDER ARM 7302677
1 7302677
- 7302677 - CYLINDER ARM
- Ref. 2-31
2 7280544
- 7280544 - TUBE CASE CYLINDER
3 7028773
- 7028773 - BUSHING
4 7278032
- 7278032 - ROD CYLINDER
5 7278033
- 7278033 - FITTING PLUG
6 7007509
- 7007509 - COVER ROD
7 7003709
- 7003709 - BUSHING DD
8 7003722
- 7003722 - RING RETAINING
9 7003788
- 7003788 - SEAL BUFFER
10 7003758
- 7003758 - SEAL
11 7003791
- 7003791 - WIPER DUST
12 7003862
- 7003862 - RING RETAINING
13 7007944
- 7007944 - O-RING
14 7003766
- 7003766 - RING BACK-UP
15 7007945
- 7007945 - O-RING
16 7006835
- 7006835 - RING CUSHION
17 7006847
- 7006847 - PISTON
18 7003947
- 7003947 - SEAL SLIPPER
19 7007507
- 7007507 - RING WEAR
20 7007502
- 7007502 - RING DUST
21 7003755
- 7003755 - O-RING
22 7006829
- 7006829 - RING BACK-UP
23 7006830
- 7006830 - NUT PISTON
24 7007792
- 7007792 - SCREW SET
25 7003836
- 7003836 - DIAPHRAGM PLUNGER CUSHION
26 7003728
- 7003728 - RING STOP
27 7007772
- 7007772 - BOLT HEX SOCKET
28 7003826
- 7003826 - VALVE CHECK
29 7003742
- 7003742 - SPRING
30 7003804
- 7003804 - SUPPORT SPRING
31 7284551
- 7284551 - O-RING
32 7007412
- 7007412 - KIT
- SEAL
- Ref. 9-11
- 13-15 & 18-22
