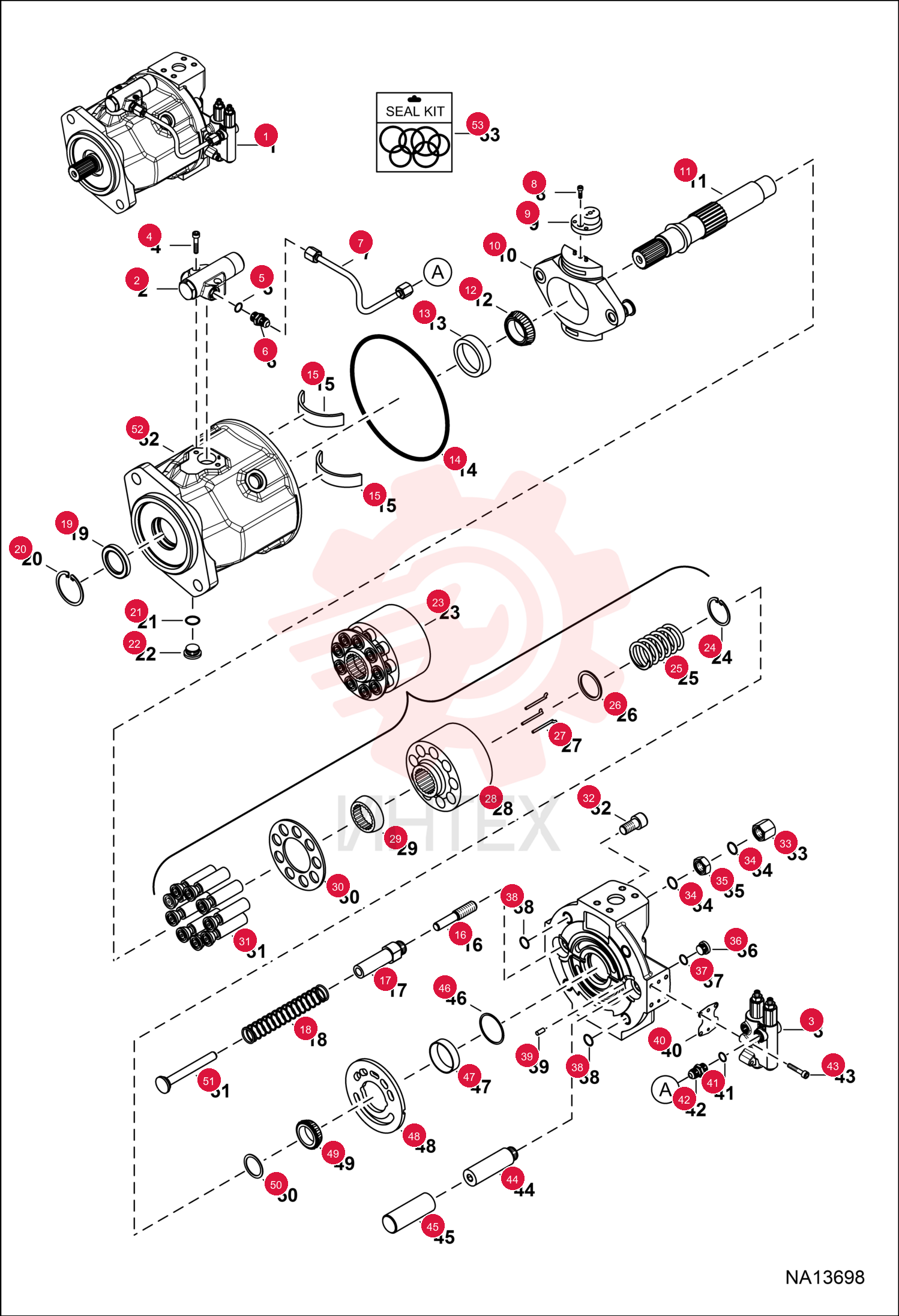

PUMP HYDRAULIC 7300084

PUMP HYDRAULIC 7300084

PUMP HYDRAULIC 7300084

1 7300084

  • 7300084 - PUMP HYDRAULIC
  • Ref. 2-53

2 6692558

  • 6692558 - SCREW

3 7009736

  • 7009736 - FITTING

4 7009739

  • 7009739 - TUBE

5 6676372

  • 6676372 - YOKE
  • Was 7009738

6 6676373

  • 6676373 - SHAFT
  • Was 7009742

7 6676375

  • 6676375 - BEARING

8 6676377

  • 6676377 - DISC
  • Was 7009727

9 7009722

  • 7009722 - SEAL SHAFT

10 6676379

  • 6676379 - RETAINER

11 6671748

  • 6671748 - PLUG
  • W/ O-ring

12 7009737

  • 7009737 - GRP ROTARY

13 7009732

  • 7009732 - RING SNAP

14 7009718

  • 7009718 - SPRING

15 7009719

  • 7009719 - PLATE

16 6690417

  • 6690417 - PIN

17 7009710

  • 7009710 - BALL RETAINING

18 7009709

  • 7009709 - PLATE RETAINING

19 7009708

  • 7009708 - PISTON

20 7009716

  • 7009716 - BOLT HEX SOCKET

21 6967416

  • 6967416 - SCREW
  • W/ O-RING - Was 7337424

22 6691519

  • 6691519 - GASKET

23 7009735

  • 7009735 - RING
  • RETAINER

24 6672255

  • 6672255 - BOLT

25 6676386

  • 6676386 - PLATE
  • Was 7337425

26 6676376

  • 6676376 - BEARING
  • Was 7009720

27 7009731

  • 7009731 - HOUSING PUMP
