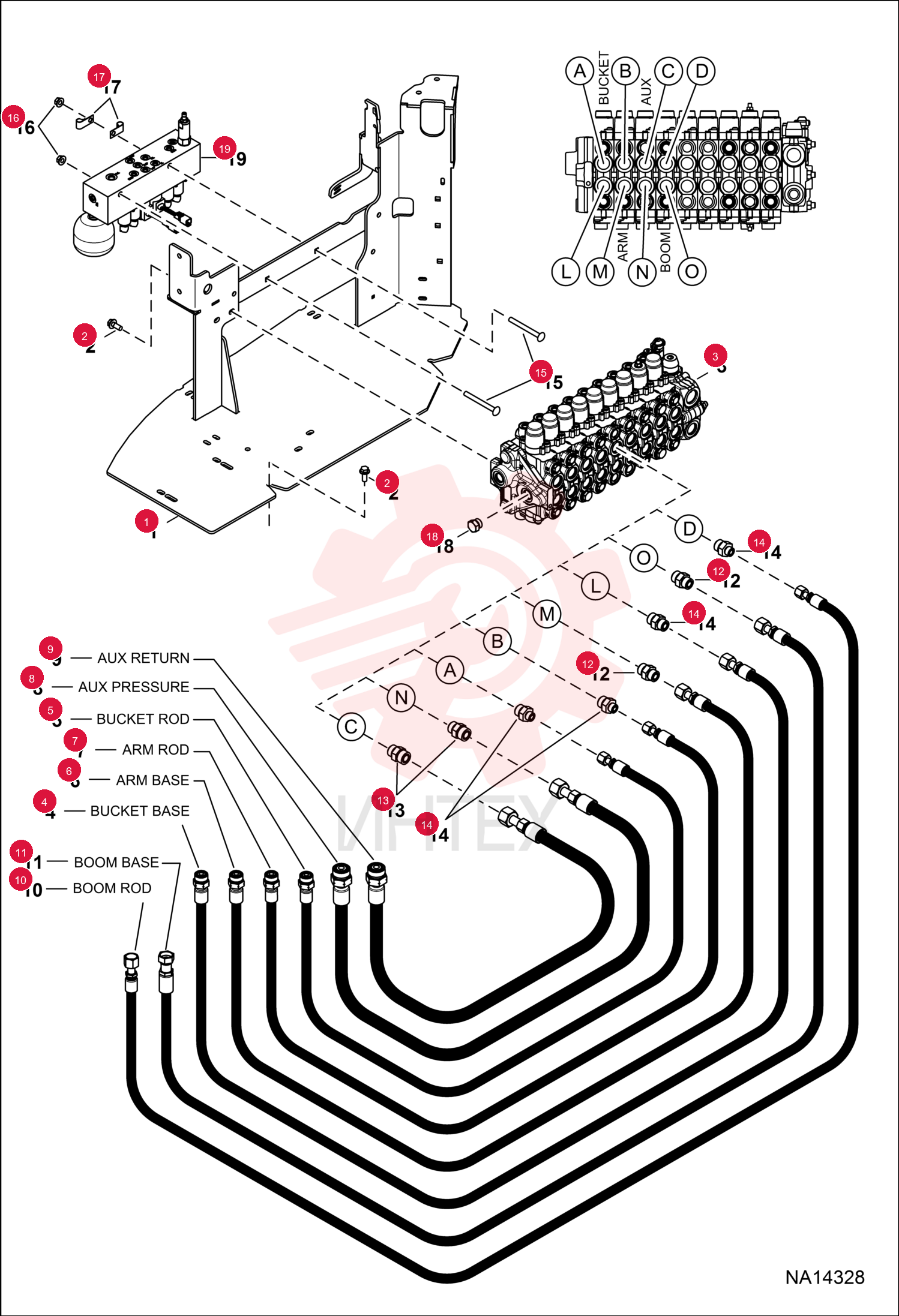

MOUNT VALVE 7300644

MOUNT VALVE 7300644

MOUNT VALVE 7300644

1 7300644

  • 7300644 - MOUNT VALVE

2 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

3 7334686

  • 7334686 - HOSE HYDRAULIC ASSY

4 7299542

  • 7299542 - HOSE HYDRAULIC ASSY

5 7299540

  • 7299540 - HOSE HYDRAULIC ASSY

6 7299543

  • 7299543 - HOSE HYDRAULIC ASSY

7 7299541

  • 7299541 - HOSE HYDRAULIC ASSY

8 7299544

  • 7299544 - HOSE HYDRAULIC ASSY

9 7299545

  • 7299545 - HOSE HYDRAULIC ASSY

10 7299546

  • 7299546 - HOSE HYDRAULIC ASSY

11 52E1012

  • 52E1012 - ADAPTER

12 52E1212

  • 52E1212 - ADAPTER

13 52E0812

  • 52E0812 - FITTING ADAPTER

14 28CM10100

  • 28CM10100 - BOLT

15 43DM10

  • 43DM10 - NUT FLANGED HEX

16 30HJ608

  • 30HJ608 - CLAMP

17 24K7

  • 24K7 - PLUG
