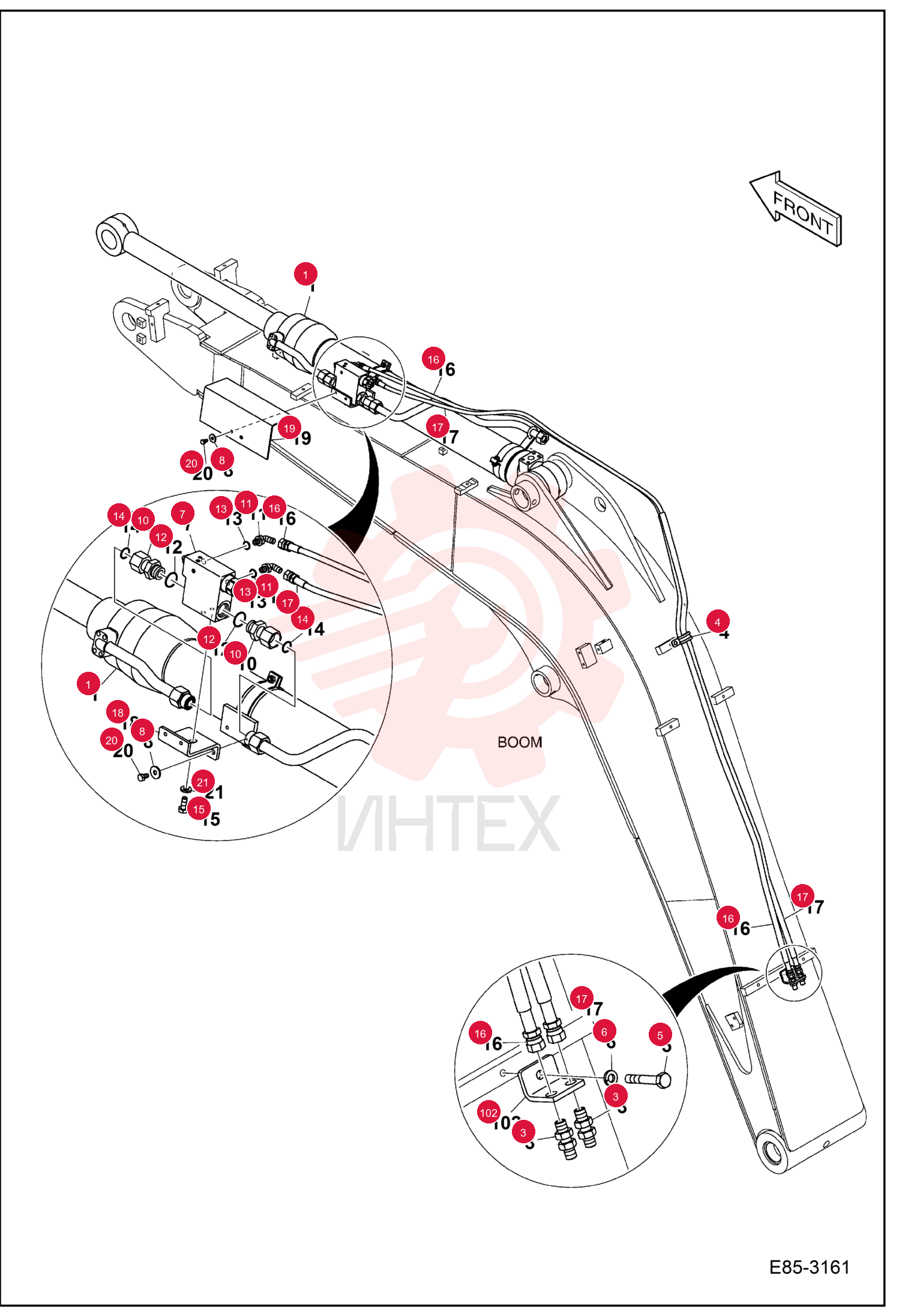

CYLINDER LOCK 7332443 (1)

CYLINDER LOCK 7332443 (1)

CYLINDER LOCK 7332443 (1)

1 7332443

  • 7332443 - CYLINDER LOCK

2 7003949

  • 7003949 - ADAPTER

3 7028904

  • 7028904 - CLIP

4 7331994

  • 7331994 - CLAMP HOSE

5 7007675

  • 7007675 - BOLT

6 7007835

  • 7007835 - WASHER SPRING

7 7332460

  • 7332460 - VALVE LOCK

8 7004470

  • 7004470 - WASHER PLAIN

9 7005552

  • 7005552 - ADAPTER

10 7004713

  • 7004713 - ELBOW

11 7007917

  • 7007917 - O-RING

12 7283267

  • 7283267 - O-RING

13 7007960

  • 7007960 - O-RING

14 7007628

  • 7007628 - BOLT

15 7332461

  • 7332461 - HOSE HYDRAULIC

16 7332462

  • 7332462 - HOSE HYDRAULIC

17 7303200

  • 7303200 - BRACKET

18 7303201

  • 7303201 - COVER
  • LOCK

19 7007615

  • 7007615 - BOLT

20 7288586

  • 7288586 - WASHER

21 7003968

  • 7003968 - BRACKET
