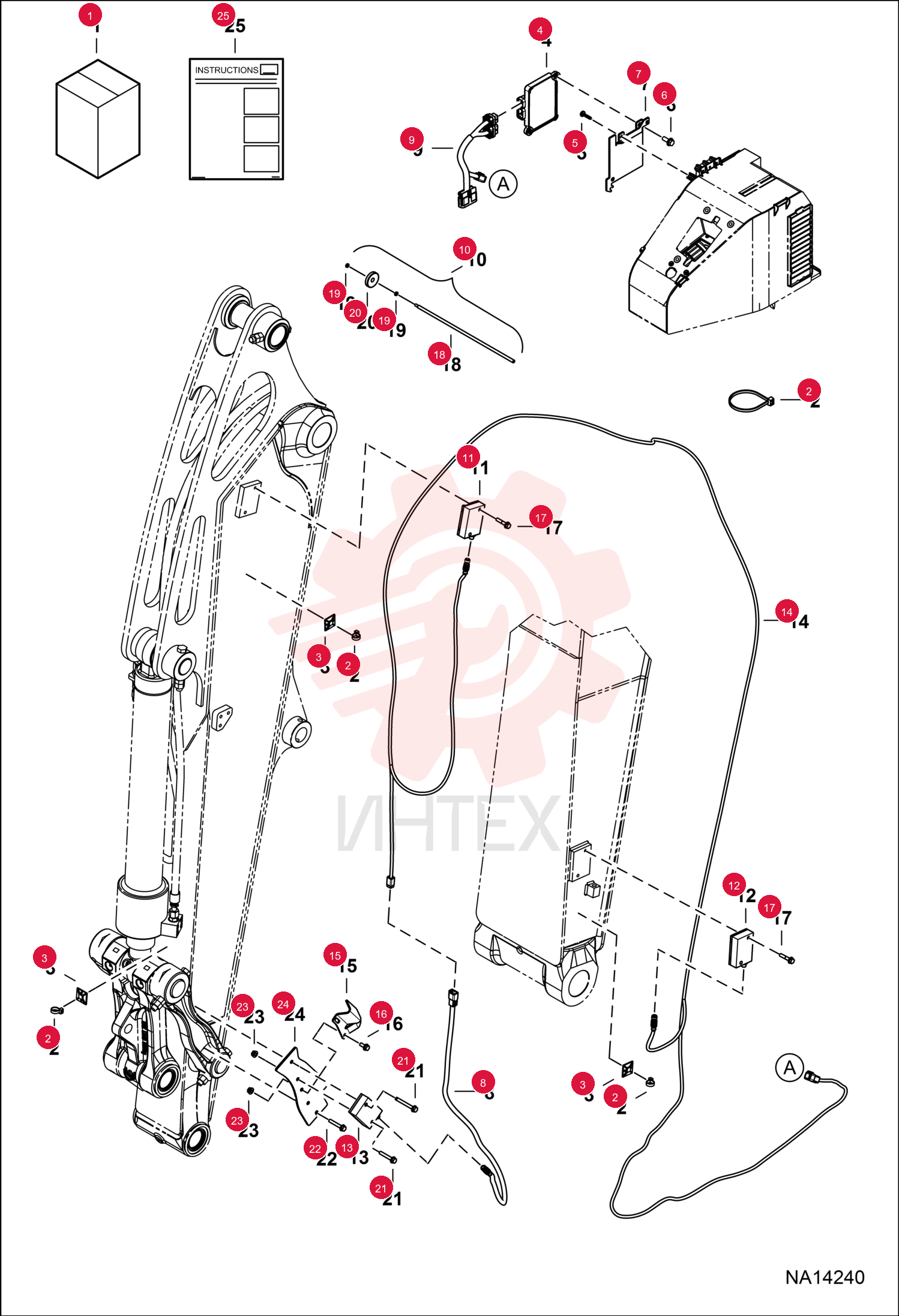

KIT DEPTH CHECK 7313758

KIT DEPTH CHECK 7313758

KIT DEPTH CHECK 7313758

1 7313758

  • 7313758 - KIT DEPTH CHECK
  • W/Ref. 2-25

2 6624289

  • 6624289 - STRAP
  • TIE

3 6693924

  • 6693924 - MOUNT

4 7260941

  • 7260941 - CONTROLLER
  • SECONDARY

5 7223129

  • 7223129 - SCREW

6 7168429

  • 7168429 - BOLT
  • CONTROLLER

7 7283828

  • 7283828 - MOUNT
  • CONTROLLER

8 7234680

  • 7234680 - HARNESS
  • SENSOR

9 7333116

  • 7333116 - HARNESS DEPTH CHECK

10 7248427

  • 7248427 - PIN
  • Ref. 18-20 - magnetic calibration

11 7254480

  • 7254480 - SENSOR

12 7254481

  • 7254481 - SENSOR

13 7254482

  • 7254482 - SENSOR

14 7314093

  • 7314093 - HARNESS BOOM LA

15 7315760

  • 7315760 - BRACKET GUIDE

16 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

17 29CM840

  • 29CM840 - SCREW FLGD HEX CAP

18 29CM870

  • 29CM870 - BOLT

19 29CM850

  • 29CM850 - SCREW

20 43DM8

  • 43DM8 - NUT FLANGED HEX

21 7314032

  • 7314032 - BRACKET SIDE

22 7332735ENUS

  • 7332735ENUS - INSTRUCTIONS
