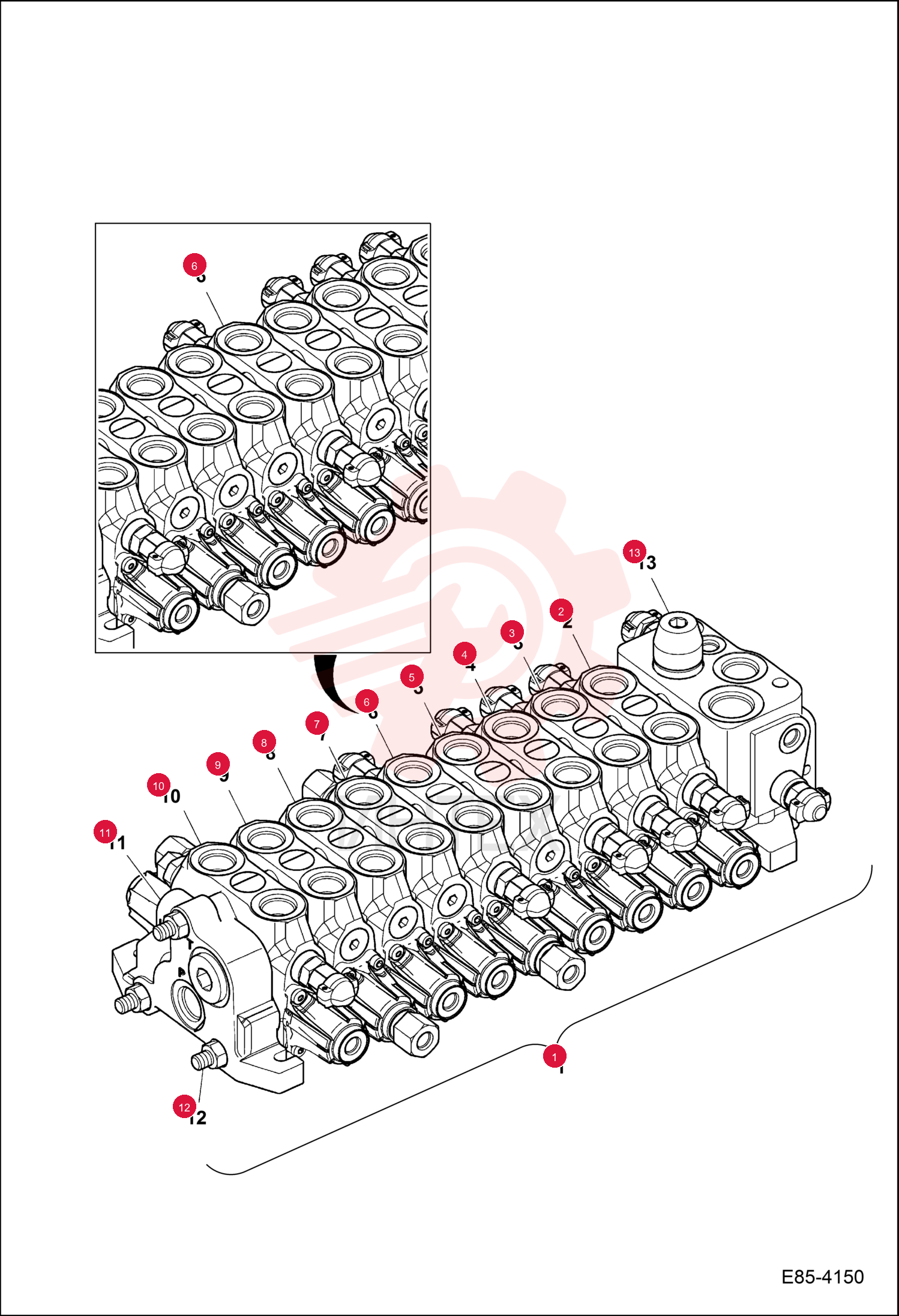

VALVE CONTROL 7347565 (1)

VALVE CONTROL 7347565 (1)

VALVE CONTROL 7347565 (1)

1 7347565

  • 7347565 - VALVE CONTROL
  • Ref. 2-13

2 7029367

  • 7029367 - SECTION
  • VALVE
  • boom

3 7029368

  • 7029368 - SECTION
  • VALVE
  • bucket

4 7029366

  • 7029366 - SECTION
  • VALVE
  • arm

5 7029370

  • 7029370 - SECTION
  • VALVE
  • blade

6 7029373

  • 7029373 - SECTION
  • VALVE
  • auxiliary

7 7284552

  • 7284552 - SECTION
  • VALVE
  • auxiliary - Was 7277025

8 7029375

  • 7029375 - SECTION
  • VALVE
  • RH travel

9 7029376

  • 7029376 - SECTION
  • VALVE
  • LH travel

10 7029374

  • 7029374 - SECTION
  • VALVE
  • slew

11 7029372

  • 7029372 - SECTION
  • VALVE
  • boom swing

12 7028696

  • 7028696 - BLOCK
  • OUTLET

13 7029341

  • 7029341 - ROD
  • TIE ASSY

14 7029371

  • 7029371 - SECTION
  • VALVE
  • inlet
