Bobcat
/
E85
/

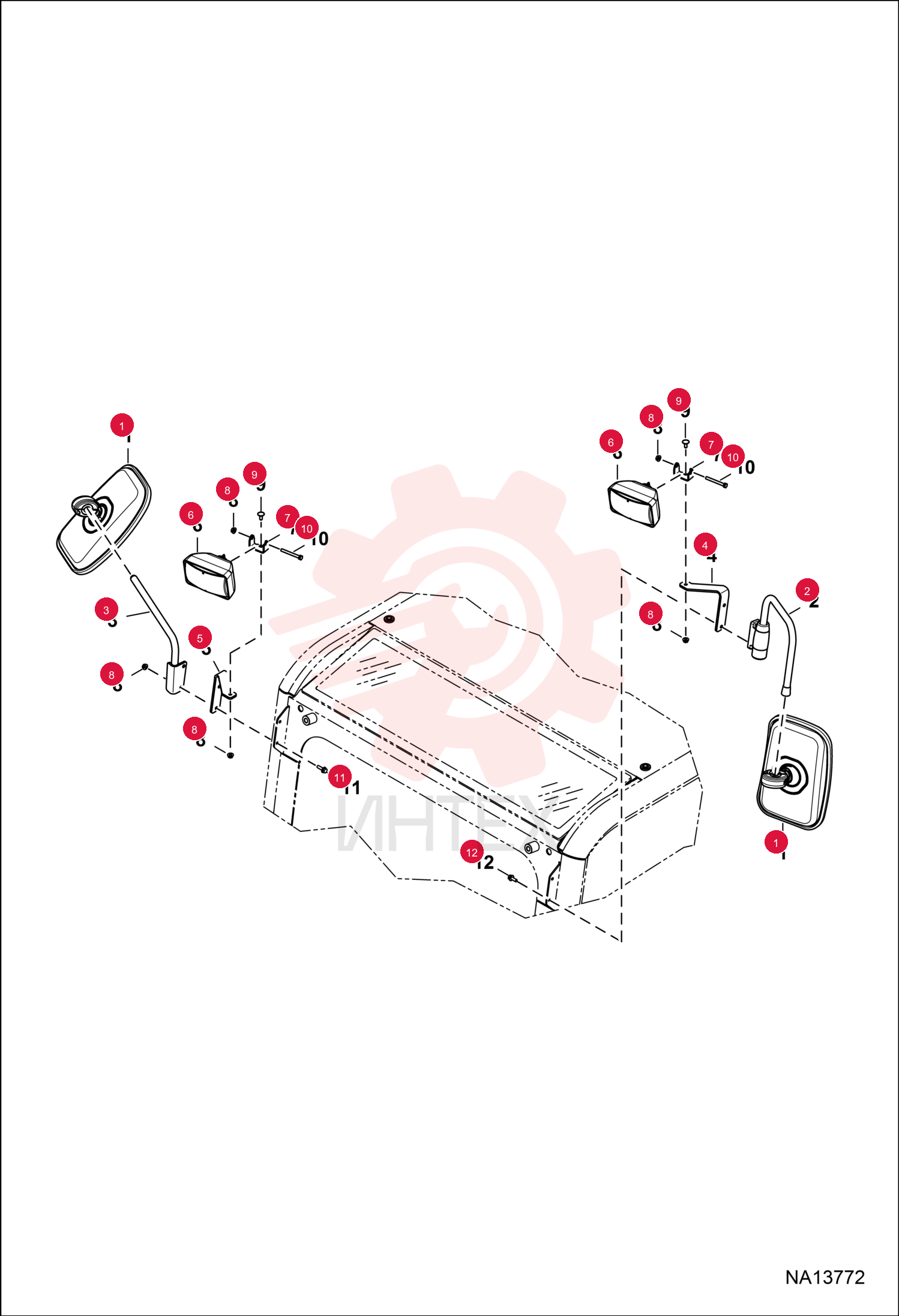

MIRROR SIDE HEAD 7324916

MIRROR SIDE HEAD 7324916

MIRROR SIDE HEAD 7324916

1 7324916

  • 7324916 - MIRROR SIDE HEAD

2 7324913

  • 7324913 - MOUNT MIRROR

3 7337016

  • 7337016 - MOUNT MIRROR

4 7340303

  • 7340303 - BRACKET MOUNTING
  • Was 7329914

5 7340302

  • 7340302 - BRACKET MOUNTING
  • Was 7329833

6 6675938

  • 6675938 - LIGHT
  • SEALED BEAM
  • NLA - Was 7018038

7 7241221

  • 7241221 - BRACKET

8 51DM6

  • 51DM6 - NUT HX THDLK PREAPPL

9 28CM616

  • 28CM616 - BOLT CARRIAGE 8.8

10 1CM615

  • 1CM615 - BOLT

11 29CM620

  • 29CM620 - SCREW FLGD HEX CAP

12 29CM616

  • 29CM616 - SCREW FLGD HEX CAP
