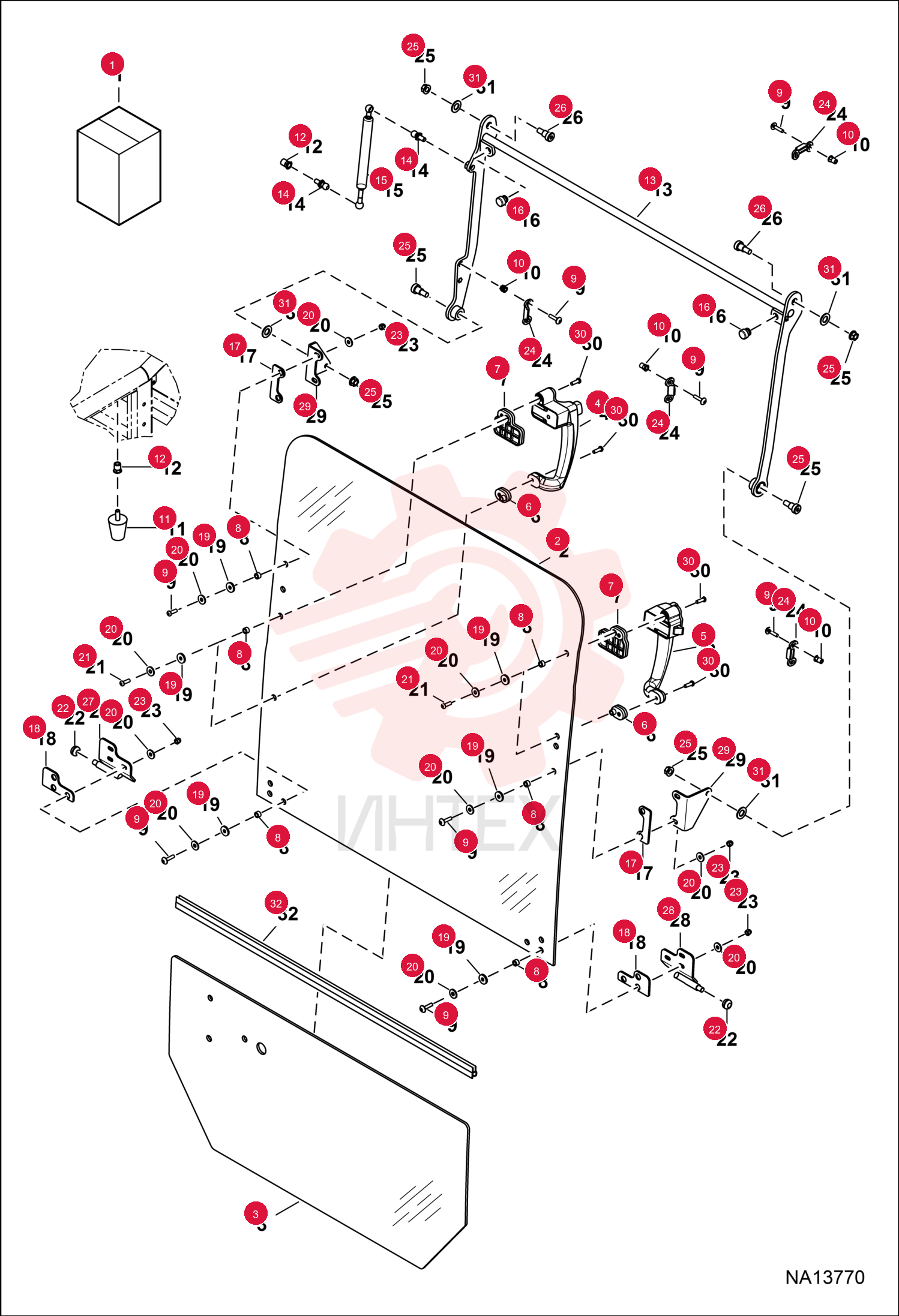

SLIDER ASSEMBLY 7334692

SLIDER ASSEMBLY 7334692

SLIDER ASSEMBLY 7334692

1 7334692

  • 7334692 - SLIDER ASSEMBLY
  • Ref. 2-32

2 7332763

  • 7332763 - GLASS FRONT

3 7332764

  • 7332764 - GLASS FRONT

4 7023166

  • 7023166 - LATCH
  • WINDOW CAB
  • LH

5 7023167

  • 7023167 - LATCH
  • WINDOW CAB
  • RH

6 7213044

  • 7213044 - SPACER
  • LATCH LOWER

7 7213043

  • 7213043 - SPACER
  • LATCH UPPER

8 7210929

  • 7210929 - SPACER
  • BRACKET

9 7338904

  • 7338904 - SCREW TORX HEAD

10 7338906

  • 7338906 - RETAINER BOLT

11 7332793

  • 7332793 - BOLT STUD

12 7339029

  • 7339029 - RETAINER BOLT

13 7332805

  • 7332805 - SLIDER ARM

14 7332806

  • 7332806 - STUD BALL

15 7339049

  • 7339049 - SPRING GAS

16 7332782

  • 7332782 - BUMPER RUBBER

17 7332783

  • 7332783 - SEAL RUBBER

18 7332784

  • 7332784 - SEAL RUBBER

19 7210811

  • 7210811 - GASKET
  • WASHER

20 7215175

  • 7215175 - WASHER
  • FLAT

21 7215172

  • 7215172 - SCREW
  • MACHINE

22 7332807

  • 7332807 - WHEEL FLAT

23 7365613

  • 7365613 - NUT FLANGE
  • Use W/O Ref. 20

24 7338905

  • 7338905 - NUT ACORN
  • if equipped - use W/Ref. 20

25 7210303

  • 7210303 - STRIKER
  • LATCH WINDOW

26 83D5

  • 83D5 - LKNUT HEX FLG GR8

27 38C608

  • 38C608 - SCREW

28 7250154

  • 7250154 - MOUNT ROLLER

29 7250156

  • 7250156 - MOUNT ROLLER

30 7334696

  • 7334696 - BRACKET GLASS

31 3GM620

  • 3GM620 - SCREW
  • MACHINE

32 7339372

  • 7339372 - WASHER FLAT

33 7332785

  • 7332785 - SEAL CLIP
  • 855 mm (33.66") long
