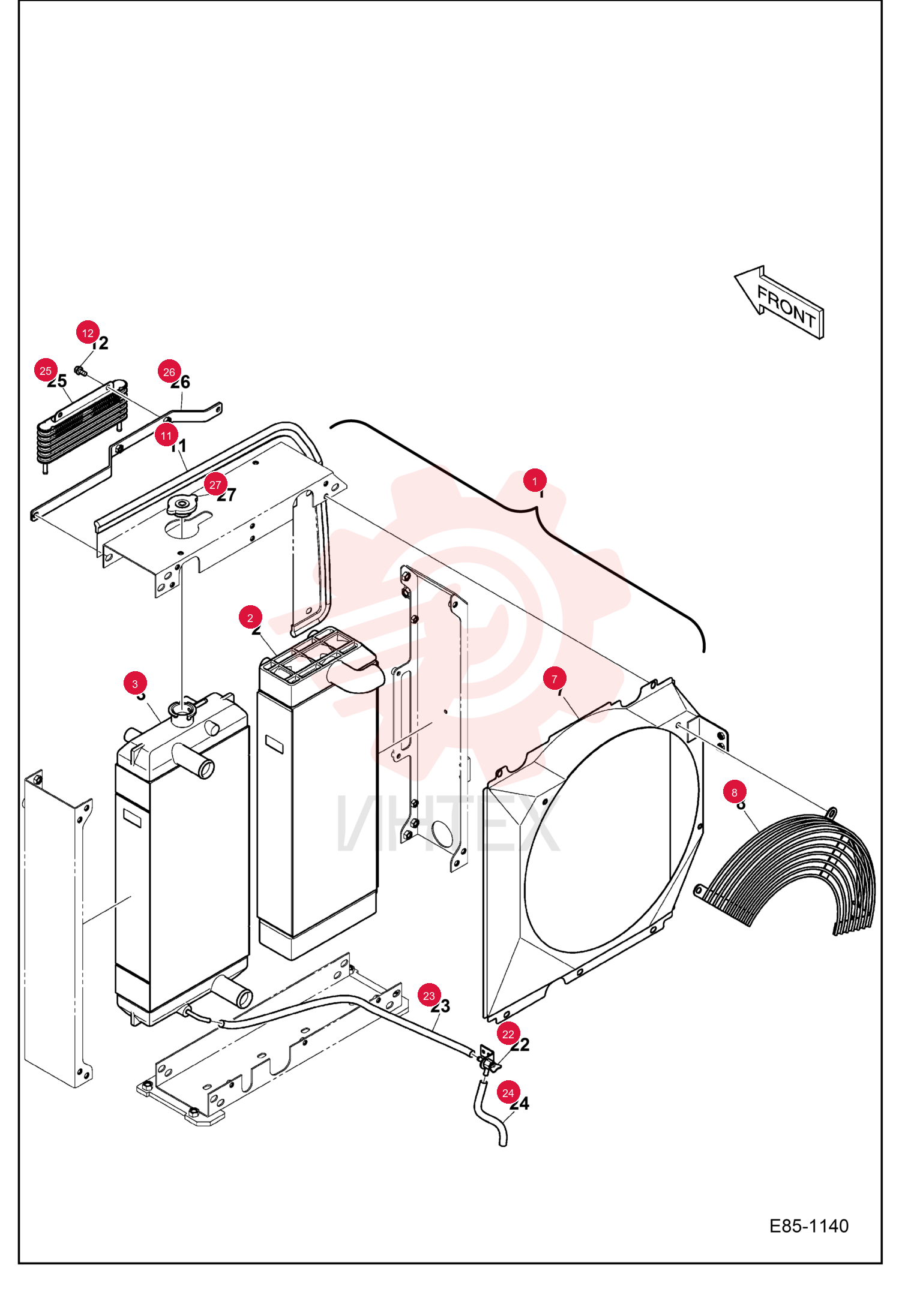

EXCHANGER WATER RADIATOR 7345773 (1)

EXCHANGER WATER RADIATOR 7345773 (1)

EXCHANGER WATER RADIATOR 7345773 (1)

1 7345773

  • 7345773 - EXCHANGER WATER RADIATOR

2 7028931

  • 7028931 - OIL COOLER
  • NLA - Order 7323275 - Was 7028931

3 7323275

  • 7323275 - COOLER OIL

4 7345708

  • 7345708 - RADIATOR

5 7029397

  • 7029397 - SHROUD
  • FAN

6 7029063

  • 7029063 - GUARD
  • FAN

7 7006691

  • 7006691 - STRIP WEATHER

8 7005129

  • 7005129 - BOLT SET

9 7028914

  • 7028914 - PETCOCK

10 7029192

  • 7029192 - HOSE
  • FUEL

11 7029183

  • 7029183 - HOSE
  • DRAIN

12 7028930

  • 7028930 - COOLER
  • FUEL

13 7029231

  • 7029231 - MOUNT
  • RADIATOR

14 7028868

  • 7028868 - CAP
  • RADIATOR
