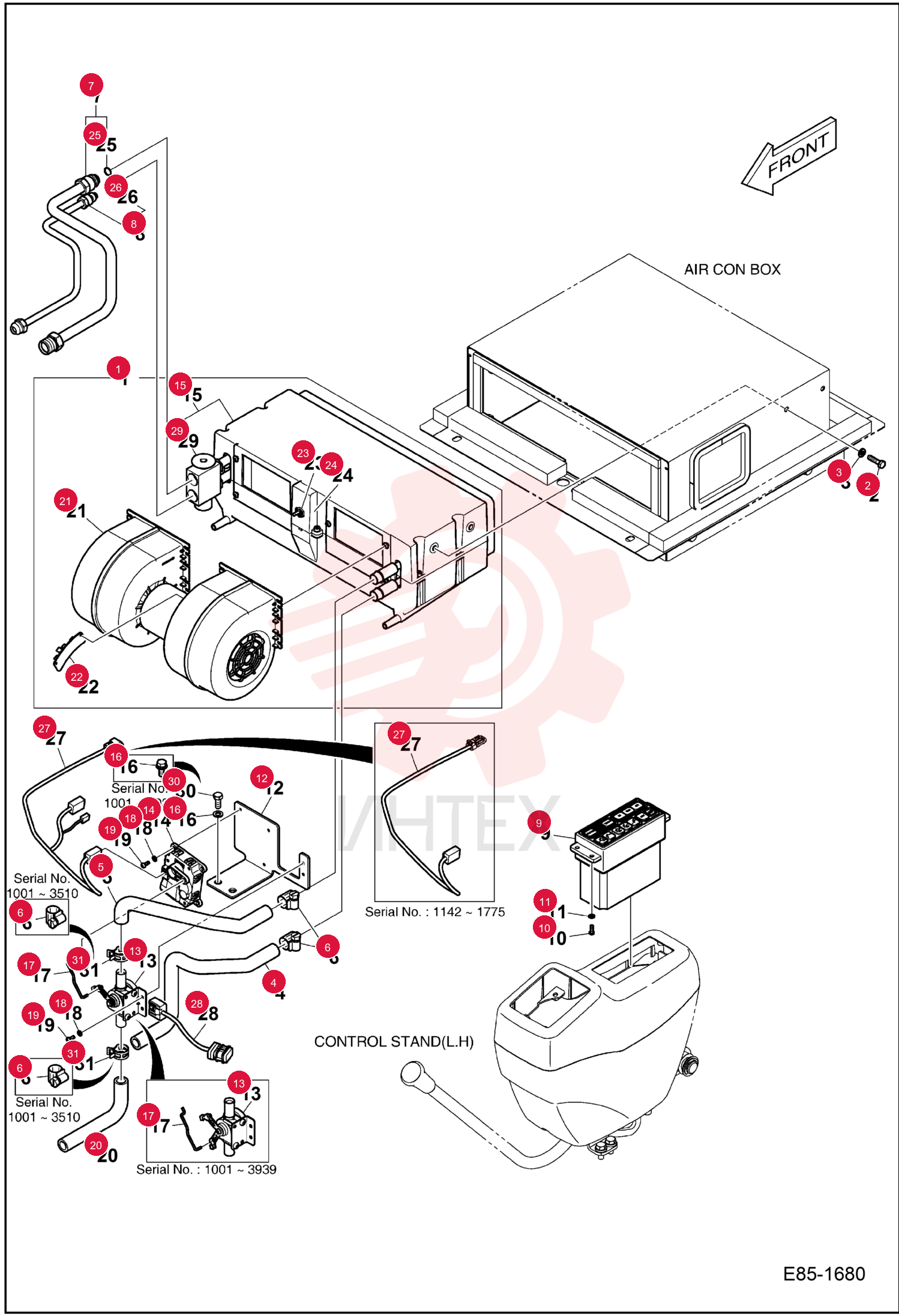

HVAC ASSY 7368915 (1)

HVAC ASSY 7368915 (1)

HVAC ASSY 7368915 (1)

1 7368915

  • 7368915 - HVAC ASSY
  • W/Ref. 15
  • 21-24

2 7028922

  • 7028922 - HVAC ASSEMBLY
  • W/Ref. 15
  • 21-24

3 7007609

  • 7007609 - BOLT

4 7007833

  • 7007833 - WASHER
  • SPRING

5 7345734

  • 7345734 - HOSE HEATER

6 7029195

  • 7029195 - HOSE
  • HEATER

7 7345710

  • 7345710 - HOSE HEATER

8 7330161

  • 7330161 - CLIP HOSE

9 7280941

  • 7280941 - CLAMP

10 7007974

  • 7007974 - CLAMP

11 7006594

  • 7006594 - TUBELINE A/C SUCTION
  • W/Ref. 25

12 7006597

  • 7006597 - TUBELINE A/C LIQUID
  • W/Ref. 26

13 7330163

  • 7330163 - TUBE COOLING
  • W/Ref. 26

14 7028927

  • 7028927 - CONTROL

15 7007777

  • 7007777 - BOLT

16 7007809

  • 7007809 - WASHER

17 7028750

  • 7028750 - BRACKET

18 7336491

  • 7336491 - VALVE STEM

19 7029229

  • 7029229 - VALVE
  • HEATER CAB

20 7006233

  • 7006233 - CORE ASSEMBLY

21 7288595

  • 7288595 - WASHER

22 7024711

  • 7024711 - BOLT

23 7029224

  • 7029224 - ROD
  • CONTROL

24 7007826

  • 7007826 - WASHER SPRING

25 7029353

  • 7029353 - SCREW

26 7029197

  • 7029197 - HOSE
  • HEATER FORMED

27 7368913

  • 7368913 - BLOWER ASSY

28 7028698

  • 7028698 - BLOWER
  • ASS'Y

29 7006235

  • 7006235 - RESISTOR BOX ASSY

30 7022725

  • 7022725 - THERMOSTAT

31 7028976

  • 7028976 - COVER
  • THERMOSTAT

32 7006239

  • 7006239 - O-RING

33 7006238

  • 7006238 - O-RING

34 7368914

  • 7368914 - HARNESS JUMPER AC

35 7280942

  • 7280942 - HARNESS
  • JUMPER A/C

36 7280944

  • 7280944 - HARNESS
  • JUMPER A/C

37 7306912

  • 7306912 - VALVE
  • EXPANSION

38 7345735

  • 7345735 - BOLT HEX

39 7330165

  • 7330165 - CLIP HOSE
