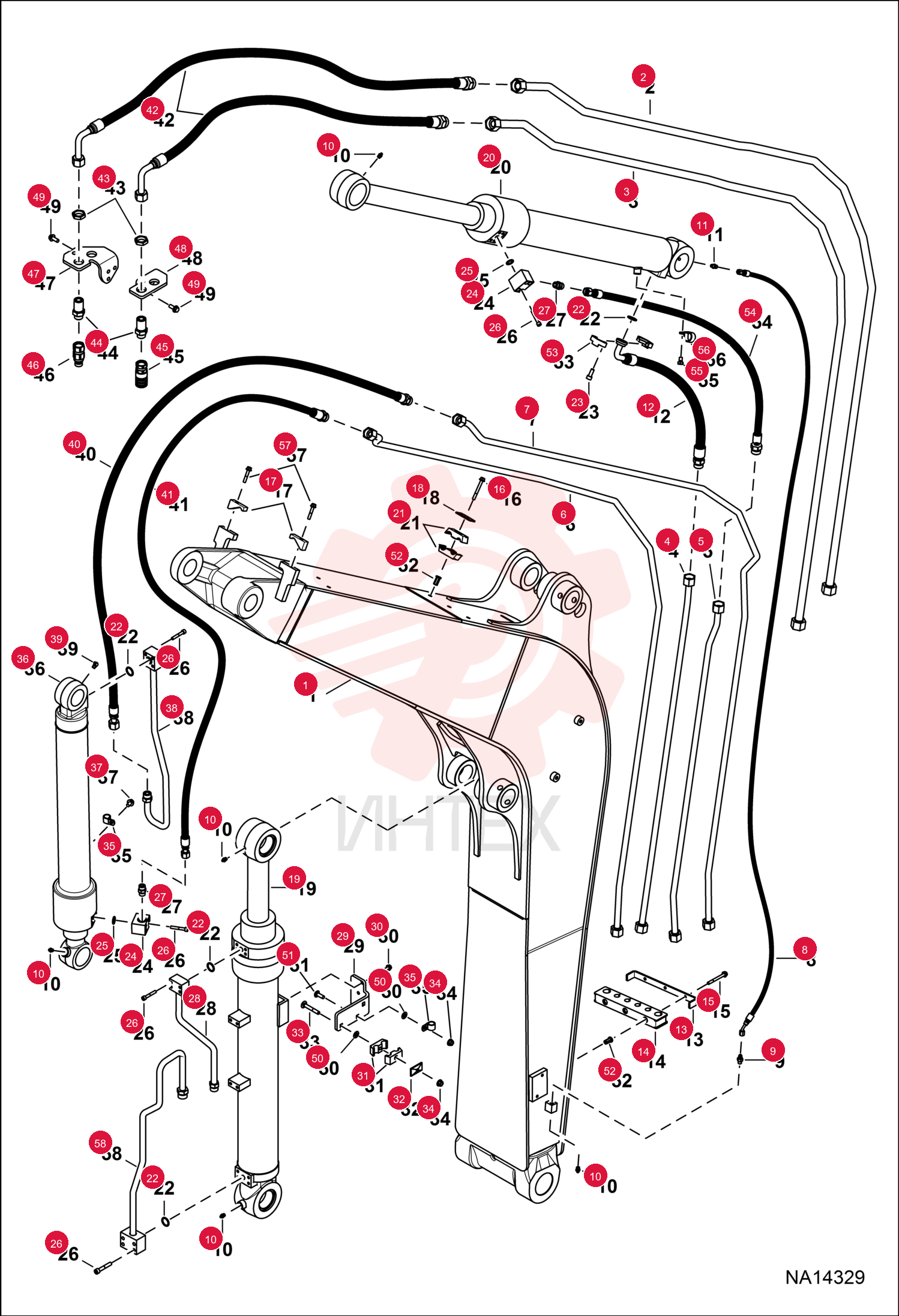

TUBELINE HYDRAULIC 7320760

TUBELINE HYDRAULIC 7320760

TUBELINE HYDRAULIC 7320760

1 7320760

  • 7320760 - TUBELINE HYDRAULIC

2 7320765

  • 7320765 - TUBELINE HYDRAULIC

3 7320762

  • 7320762 - TUBELINE HYDRAULIC

4 7320763

  • 7320763 - TUBELINE HYDRAULIC

5 7320764

  • 7320764 - TUBELINE HYDRAULIC

6 7320761

  • 7320761 - TUBELINE HYDRAULIC

7 7287257

  • 7287257 - HOSE HYDRAULIC ASSY

8 15KB0404

  • 15KB0404 - FTG HYD S CONNECTOR

9 10H25

  • 10H25 - FTG GREASE STRAIGHT

10 89F3

  • 89F3 - ADAPTOR

11 7281358

  • 7281358 - HOSE HYDRAULIC ASSY

12 7276812

  • 7276812 - CLAMP TUBELINE

13 7320770

  • 7320770 - CLAMP TUBELINE

14 29CM880

  • 29CM880 - BOLT

15 29CM860

  • 29CM860 - BOLT
  • Was 29CM845

16 7281365

  • 7281365 - CLAMP TUBELINE

17 6592507

  • 6592507 - PLATE

18 6664381

  • 6664381 - CLAMP

19 55K214

  • 55K214 - O-RING

20 9GM1025

  • 9GM1025 - SCREW HEX SOCKET CAP

21 7326206

  • 7326206 - BLOCK PORT

22 55K210

  • 55K210 - O-RING

23 9GM850

  • 9GM850 - SCREW HEX SOCKET CAP

24 52E808

  • 52E808 - ADAPTER

25 7306800

  • 7306800 - TUBELINE HYDRAULIC

26 7305448

  • 7305448 - MOUNT VALVE

27 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

28 6592506

  • 6592506 - CLAMP

29 6652521

  • 6652521 - PLATE

30 33CM1070

  • 33CM1070 - BOLT CARRIAGE

31 43DM10

  • 43DM10 - NUT FLANGED HEX

32 30H65

  • 30H65 - CLIP

33 29CM1016

  • 29CM1016 - SCREW FLANGE HEX CAP

34 7306839

  • 7306839 - TUBELINE HYDRAULIC

35 12H15

  • 12H15 - FTG GREASE 90

36 7302377

  • 7302377 - HOSE HYDRAULIC ASSY

37 7326197

  • 7326197 - HOSE HYDRAULIC ASSY

38 7337451

  • 7337451 - HOSE HYDRAULIC ASSY
  • Was 7281360

39 61E12

  • 61E12 - NUT

40 7305202

  • 7305202 - ADAPTER COUPLER

41 7246776

  • 7246776 - COUPLER
  • FF FEMALE

42 7246791

  • 7246791 - COUPLER FF MALE 1/2

43 7337276

  • 7337276 - MOUNT COUPLER
  • RH

44 7337275

  • 7337275 - MOUNT COUPLER
  • LH

45 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

46 6674264

  • 6674264 - RETAINER BOLT

47 28CM1030

  • 28CM1030 - BOLT CARRIAGE 8.8

48 7303616

  • 7303616 - INSERT THREADED

49 19J12

  • 19J12 - CLAMP

50 7326198

  • 7326198 - HOSE HYDRAULIC ASSY

51 1CM1016

  • 1CM1016 - SCREW

52 30H73

  • 30H73 - CLAMP

53 29CM845

  • 29CM845 - SCREW HEX FLANGE

54 7311856

  • 7311856 - TUBELINE HYDRAULIC
