Bobcat
/
E85
/

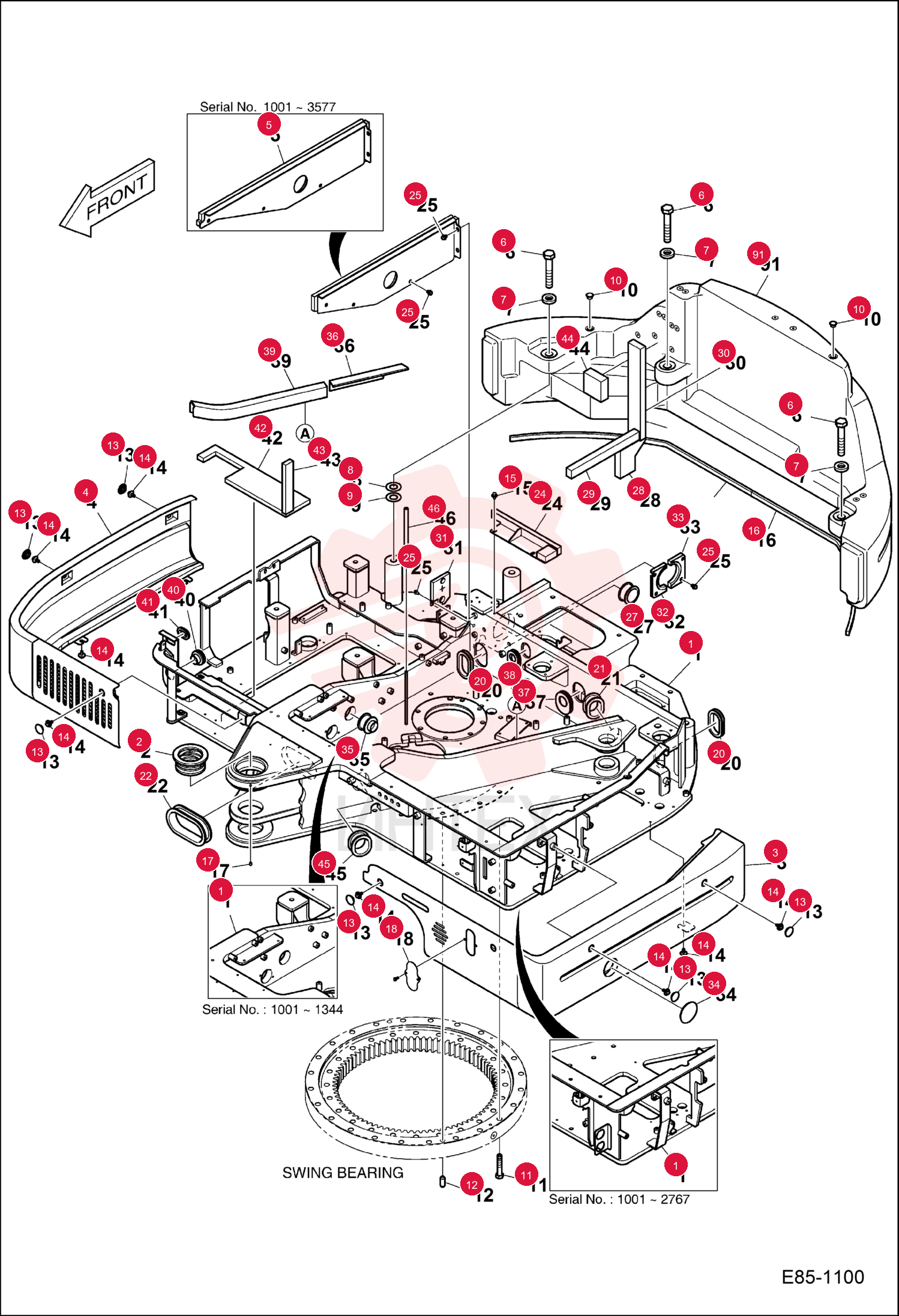

UPPERSTRUCTURE 7367900 (1)

UPPERSTRUCTURE 7367900 (1)

UPPERSTRUCTURE 7367900 (1)

1 7367900

  • 7367900 - UPPERSTRUCTURE

2 7331375

  • 7331375 - UPPERSTRUCTURE

3 7298178

  • 7298178 - UPPERSTRUCTURE

4 7275673

  • 7275673 - UPPERSTRUCTURE

5 7006283

  • 7006283 - BUSHING

6 7028969

  • 7028969 - COVER
  • SIDE

7 7028968

  • 7028968 - COVER
  • SIDE

8 7367899

  • 7367899 - COVER BAFFLE

9 7332413

  • 7332413 - COVER BAFFLE

10 7028947

  • 7028947 - COVER

11 7005117

  • 7005117 - BOLT

12 7275675

  • 7275675 - WASHER

13 7004502

  • 7004502 - WASHER

14 7004491

  • 7004491 - SHIM

15 7004493

  • 7004493 - SHIM

16 7003922

  • 7003922 - CAP

17 7007713

  • 7007713 - BOLT

18 7012272

  • 7012272 - PIN
  • DOWEL

19 7005653

  • 7005653 - PAD

20 7005128

  • 7005128 - BOLT SET

21 7005129

  • 7005129 - BOLT SET

22 7006351

  • 7006351 - PAD

23 7007895

  • 7007895 - NIPPLE

24 7006365

  • 7006365 - COVER

25 7005581

  • 7005581 - BUSHING
  • RUBBER

26 7005586

  • 7005586 - BUSHING
  • RUBBER

27 7005584

  • 7005584 - GROMMET

28 7028946

  • 7028946 - COVER

29 7005135

  • 7005135 - BOLT

30 7005596

  • 7005596 - BUSHING
  • RUBBER

31 7029026

  • 7029026 - FOAM

32 7029027

  • 7029027 - FOAM

33 7006738

  • 7006738 - FOAM

34 7028948

  • 7028948 - COVER

35 7275665

  • 7275665 - COVER
  • BAFFLE

36 7006741

  • 7006741 - COVER
  • BAFFLE

37 7006742

  • 7006742 - COVER
  • BAFFLE

38 7275667

  • 7275667 - COVER
  • BAFFLE

39 7029344

  • 7029344 - PLUG

40 7029067

  • 7029067 - GUIDE
  • RUBBER

41 7006601

  • 7006601 - PAD

42 7006583

  • 7006583 - GROMMET

43 7006582

  • 7006582 - GROMMET

44 7332295

  • 7332295 - GUIDE RUBBER

45 7006438

  • 7006438 - PAD

46 7029066

  • 7029066 - GUIDE
  • RUBBER

47 7005590

  • 7005590 - BUSHING
  • RUBBER

48 7029029

  • 7029029 - FOAM

49 7029030

  • 7029030 - FOAM

50 7029031

  • 7029031 - FOAM

51 7029065

  • 7029065 - GUIDE
  • RUBBER

52 7331416

  • 7331416 - HOSE FUEL

53 7022939

  • 7022939 - HOSE
  • FUEL

54 7331423

  • 7331423 - COUNTERWEIGHT

55 7029495

  • 7029495 - COUNTERWEIGHT

56 7281623

  • 7281623 - COUNTERWEIGHT
  • 1560 kg (3440 lb)
