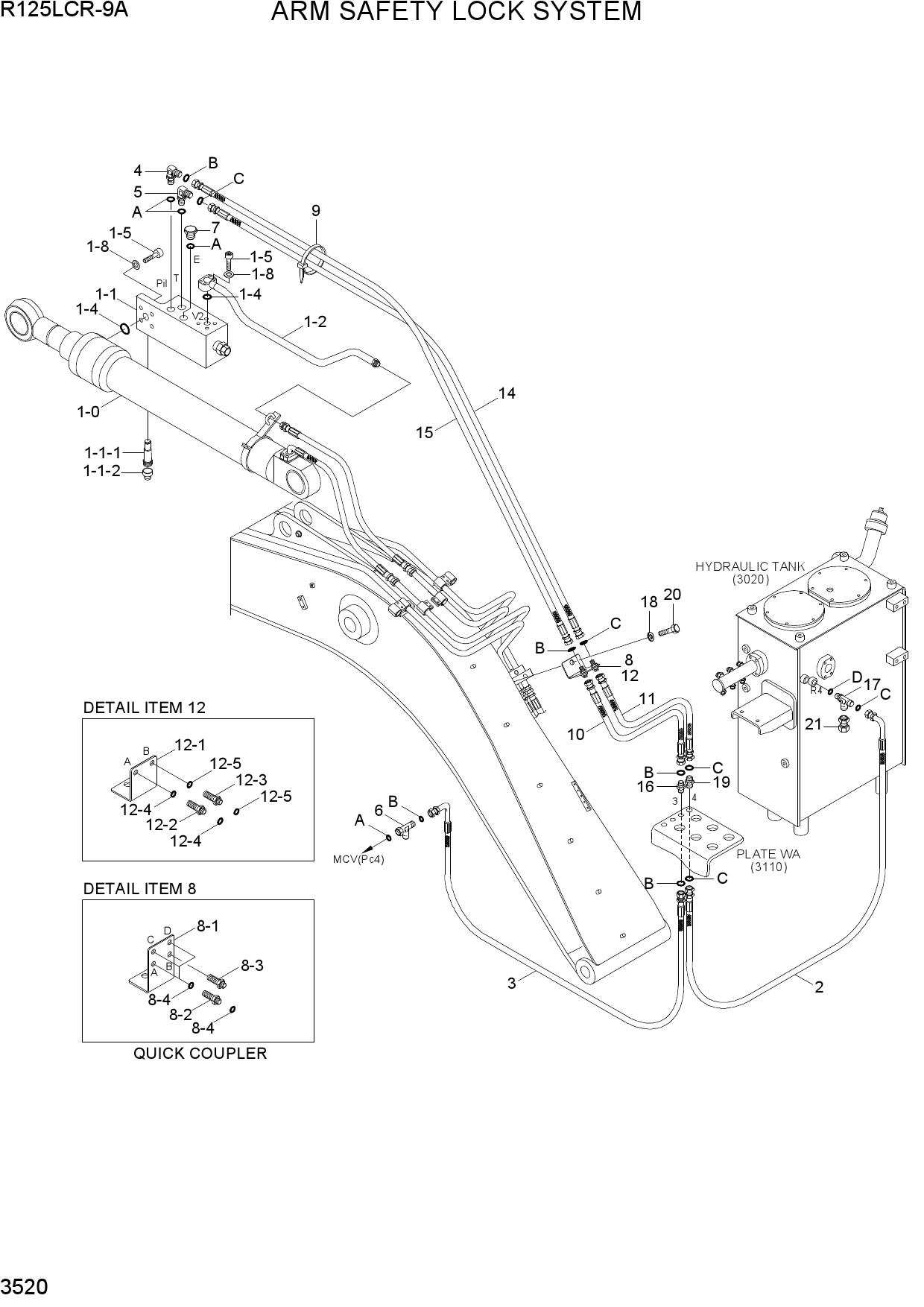

ARM SAFETY LOCK SYSTEM
1 31Q3-52330
- 31Q3-52330 - ARM CYL-SAFETY LOCK
- Поз.: 1
2 31NA-90560
- 31NA-90560 - LOCK VALVE-ARM SAFETY
- Поз.: 1-1
3 XKCH-00001
- XKCH-00001 - VALVE-RELIEF
- Поз.: 1-1-1
4 DCP-001A
- DCP-001A - CAP
- Поз.: 1-1-2
5 XKCH-00004
- XKCH-00004 - SEAL-KIT
- Поз.: 1-1-3
6 XKCD-03461
- XKCD-03461 - PIPE ASSY
- Поз.: 1-2
7 XKCD-02546
- XKCD-02546 - O-RING
- Поз.: 1-4
8 XKCD-01211
- XKCD-01211 - BOLT-SOCKET
- Поз.: 1-5
9 XKCD-00533
- XKCD-00533 - WASHER-SPRING
- Поз.: 1-8
10 P930-062037
- P930-062037 - HOSE ASSY-ORFS 0X90
- Поз.: 2
11 P930-042017
- P930-042017 - HOSE ASSY-ORFS 0X90
- Поз.: 3
12 31NB-20130
- 31NB-20130 - TEE-RUN TYPE/TEST
- Поз.: 4
13 X500-110011
- X500-110011 - CONNECTOR-ORFS
- Поз.: 5
14 X840-515151
- X840-515151 - TEE-R/TYPE
- ORFS
- Поз.: 6
15 P220-110102
- P220-110102 - PLUG-HEX
- Поз.: 7
16 33Q3-90670
- 33Q3-90670 - TERMIANL-SAFETY VLV
- Поз.: 8
17 X540-120001
- X540-120001 - CONNECTOR-ORFS
- Поз.: 8-2
18 X540-120002
- X540-120002 - CONNECTOR-ORFS
- Поз.: 8-3
19 S621-011001
- S621-011001 - O-RING
- Поз.: 8-4
20 S552-020102
- S552-020102 - CLAMP-BAND
- Поз.: 9
21 P913-042038
- P913-042038 - HOSE ASSY-ORFS 0X0
- Поз.: 10
22 P913-062038
- P913-062038 - HOSE ASSY-ORFS 0X0
- Поз.: 11
23 33Q3-90660
- 33Q3-90660 - TERMIANL-SAFETY VLV
- Поз.: 12
24 X540-120001
- X540-120001 - CONNECTOR-ORFS
- Поз.: 12-2
25 X540-120002
- X540-120002 - CONNECTOR-ORFS
- Поз.: 12-3
26 S621-011001
- S621-011001 - O-RING
- Поз.: 12-4
27 S621-012001
- S621-012001 - O-RING
- Поз.: 12-5
28 P930-062056
- P930-062056 - HOSE ASSY-ORFS 0X90
- Поз.: 14
29 P930-042056
- P930-042056 - HOSE ASSY-ORFS 0X90
- Поз.: 15
30 X540-120001
- X540-120001 - CONNECTOR-ORFS
- Поз.: 16
31 X820-065252
- X820-065252 - TEE-R/TYPE
- ORFS
- Поз.: 17
32 S411-160006
- S411-160006 - WASHER-SPRING
- Поз.: 18
33 X540-120002
- X540-120002 - CONNECTOR-ORFS
- Поз.: 19
34 S017-16040D
- S017-16040D - BOLT-HEX
- Поз.: 20
35 X710-100103
- X710-100103 - CAP-HYD
- ORFS
- Поз.: 21
36 31EK-11130
- 31EK-11130 - COUPLING-SCREW
- Поз.: 22
