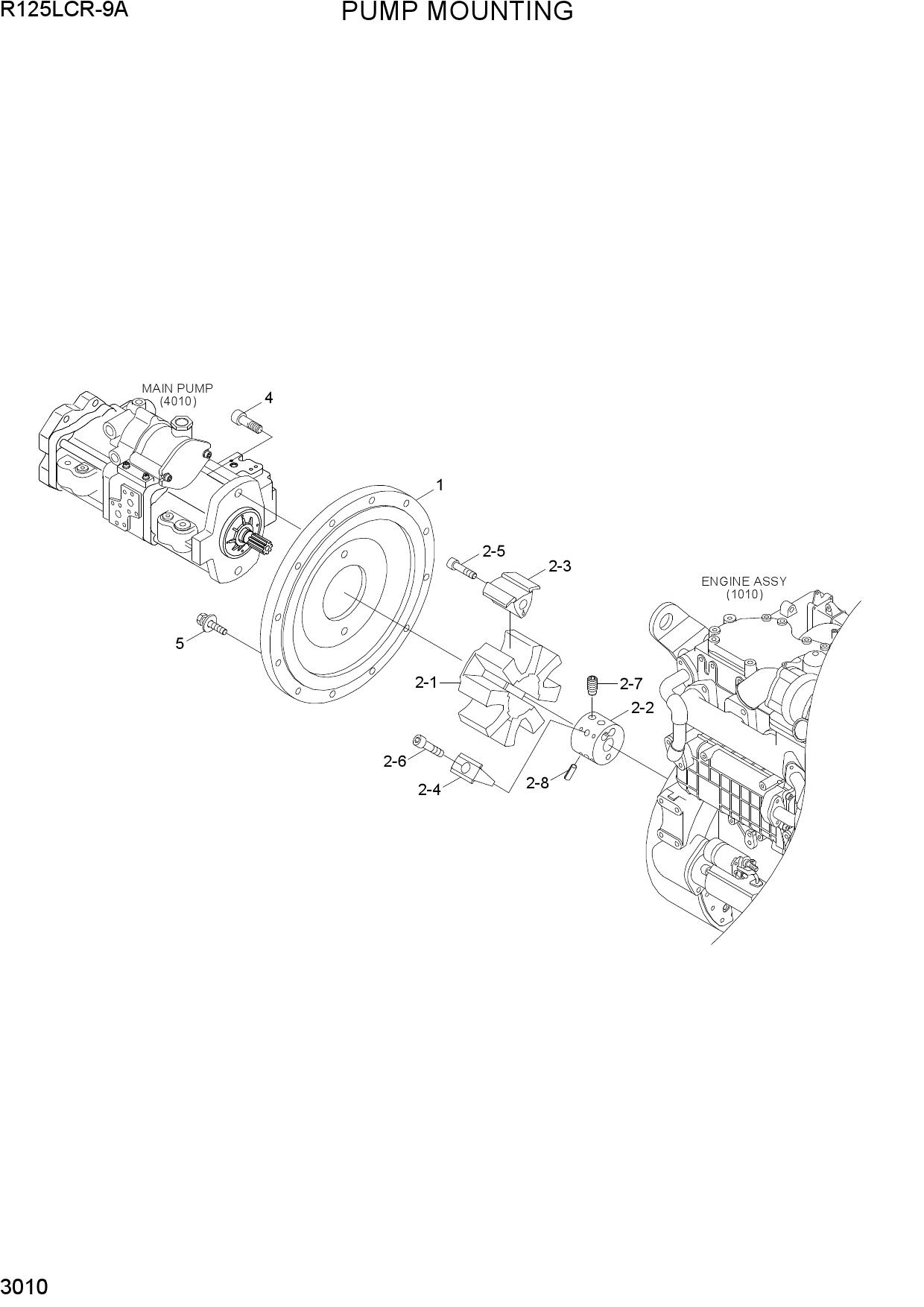

PUMP MOUNTING
1 11Q4-16000
- 11Q4-16000 - HOUSING
- Поз.: 1
2 11Q4-11110
- 11Q4-11110 - COUPLER ASSY
- Поз.: 2
3 11N7-10020
- 11N7-10020 - ELEMENT
- Поз.: 2-1
4 11Q4-11120
- 11Q4-11120 - HUB-SPLINE
- Поз.: 2-2
5 11N7-10040
- 11N7-10040 - INSERT-A
- Поз.: 2-3
6 11N7-10050
- 11N7-10050 - INSERT-R
- Поз.: 2-4
7 S109-18060D
- S109-18060D - BOLT-SOCKET
- Поз.: 2-5
8 S109-18055D
- S109-18055D - BOLT-SOCKET
- Поз.: 2-6
9 11N7-10060
- 11N7-10060 - SCREW-CLAMP
- Поз.: 2-7
10 S472-500102
- S472-500102 - PIN-SPRING
- Поз.: 2-8
11 S109-16045D
- S109-16045D - BOLT-SOCKET
- Поз.: 4
12 S037-105056
- S037-105056 - BOLT-W/WASHER
- Поз.: 5
