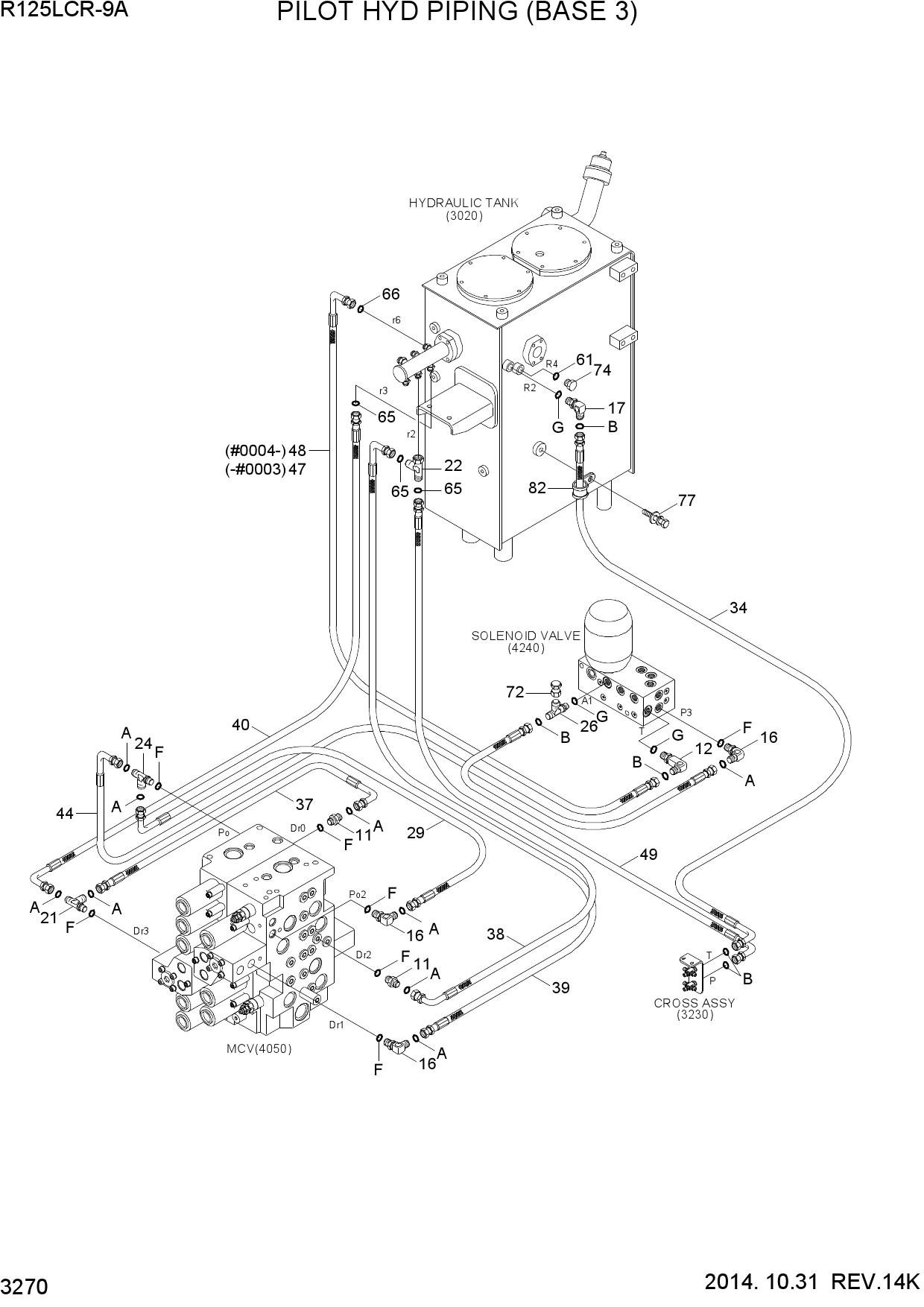

PILOT HYD PIPING (BASE 3)
1 X500-110001
- X500-110001 - CONNECTOR-ORFS
- Поз.: 11
2 31N1-40130
- 31N1-40130 - ELBOW 90-ORFS
- Поз.: 12
3 X520-110001
- X520-110001 - ELBOW-90
- ORFS
- Поз.: 16
4 X520-110002
- X520-110002 - ELBOW-90
- ORFS
- Поз.: 17
5 X820-045151
- X820-045151 - TEE-R/TYPE
- ORFS
- Поз.: 21
6 X840-515151
- X840-515151 - TEE-R/TYPE
- ORFS
- Поз.: 22
7 X810-045151
- X810-045151 - TEE-B/TYPE
- ORFS
- Поз.: 24
8 X820-065251
- X820-065251 - TEE-R/TYPE
- ORFS
- Поз.: 26
9 P930-042012
- P930-042012 - HOSE ASSY-ORFS 0X90
- Поз.: 29
10 P930-062048
- P930-062048 - HOSE ASSY-ORFS 0X90
- Поз.: 34
11 P930-042018
- P930-042018 - HOSE ASSY-ORFS 0X90
- Поз.: 37
12 P930-042040
- P930-042040 - HOSE ASSY-ORFS 0X90
- Поз.: 38
13 P930-042036
- P930-042036 - HOSE ASSY-ORFS 0X90
- Поз.: 39
14 P930-042026
- P930-042026 - HOSE ASSY-ORFS 0X90
- Поз.: 40
15 P930-042024
- P930-042024 - HOSE ASSY-ORFS 0X90
- Поз.: 44
16 P930-062014
- P930-062014 - HOSE ASSY-ORFS 0X90
- Поз.: 47
17 P930-062013
- P930-062013 - HOSE ASSY-ORFS 0X90
- Поз.: 48
18 P930-062039
- P930-062039 - HOSE ASSY-ORFS 0X90
- Поз.: 49
19 S631-011004
- S631-011004 - O-RING
- Поз.: 61
20 S621-011001
- S621-011001 - O-RING
- Поз.: 65
21 S621-012001
- S621-012001 - O-RING
- Поз.: 66
22 X710-100102
- X710-100102 - CAP-ORFS
- Поз.: 72
23 P220-110103
- P220-110103 - PLUG-HEX
- Поз.: 74
24 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 77
25 31L7-10250
- 31L7-10250 - CLAMP-TUBE
- INS SINGLE
- Поз.: 82
