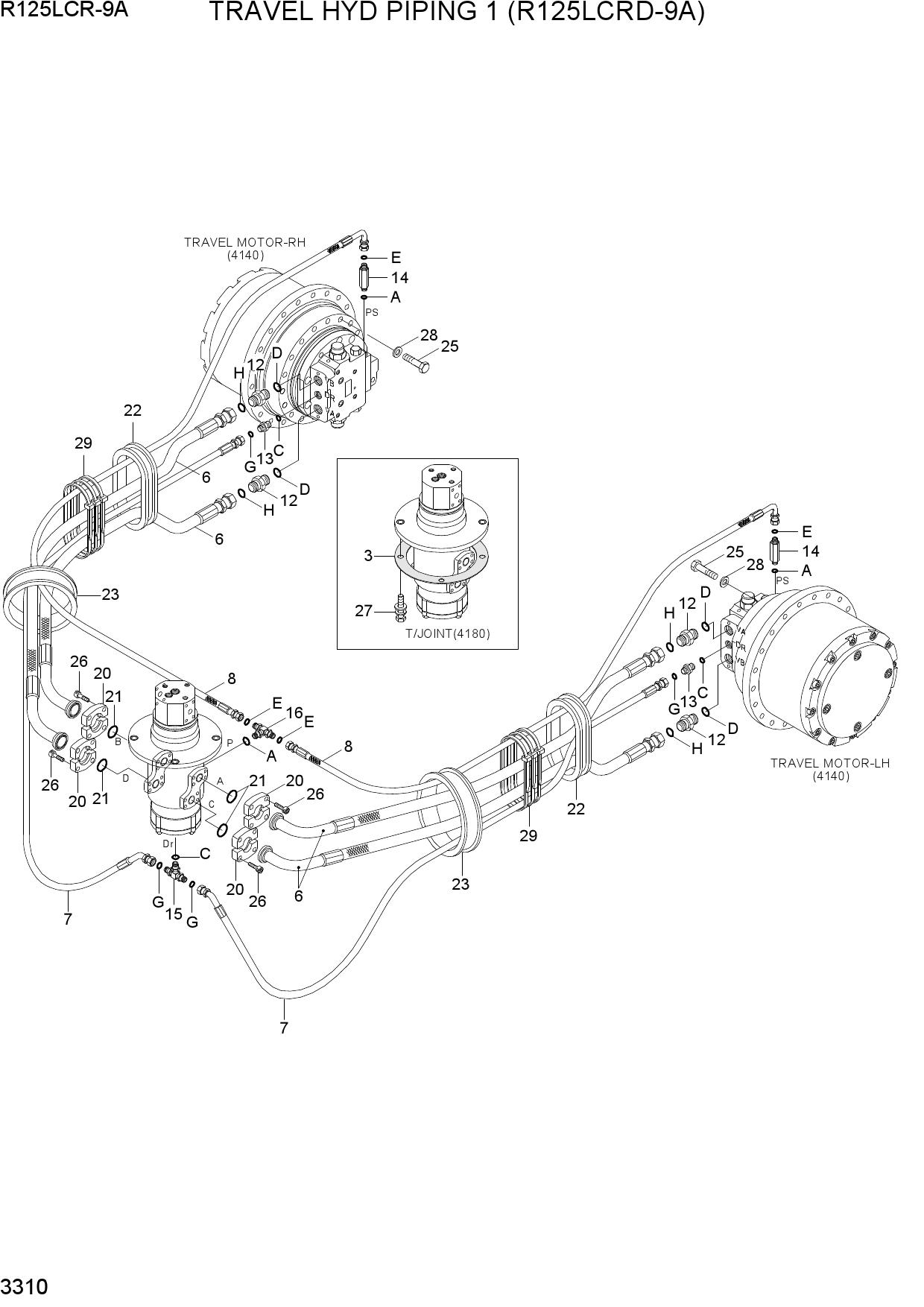

TRAVEL HYD PIPING 1 (R125LCRD-9A)
1 31N1-40970
- 31N1-40970 - GASKET
- Поз.: 3
2 P950-127332
- P950-127332 - HOSE ASSY-ORFS
- FLG 0X45
- Поз.: 6
3 P920-082037
- P920-082037 - HOSE ASSY-ORFS 0X45
- Поз.: 7
4 P930-042043
- P930-042043 - HOSE ASSY-ORFS 0X90
- Поз.: 8
5 X500-110004
- X500-110004 - CONNECTOR-ORFS
- Поз.: 12
6 X500-110003
- X500-110003 - CONNECTOR-ORFS
- Поз.: 13
7 31N8-40100
- 31N8-40100 - CONNECTOR-LONG
- ORFS
- Поз.: 14
8 X810-085353
- X810-085353 - TEE-B/TYPE
- ORFS
- Поз.: 15
9 X810-065151
- X810-065151 - TEE-B/TYPE
- ORFS
- Поз.: 16
10 P173-120102
- P173-120102 - FLANGE-HYD
- SPLIT
- Поз.: 20
11 Y171-019001
- Y171-019001 - O-RING
- Поз.: 21
12 S760-101221
- S760-101221 - GROMMET
- Поз.: 22
13 31E3-31230
- 31E3-31230 - GROMMET
- Поз.: 23
14 S017-16050D
- S017-16050D - BOLT-HEX
- Поз.: 25
15 S109-100306
- S109-100306 - BOLT-SOCKET
- Поз.: 26
16 S037-123026
- S037-123026 - BOLT-W/WASHER
- Поз.: 27
17 S441-160006
- S441-160006 - WASHER-HARDENED
- Поз.: 28
18 S552-102370
- S552-102370 - CLAMP-BAND
- Поз.: 29
