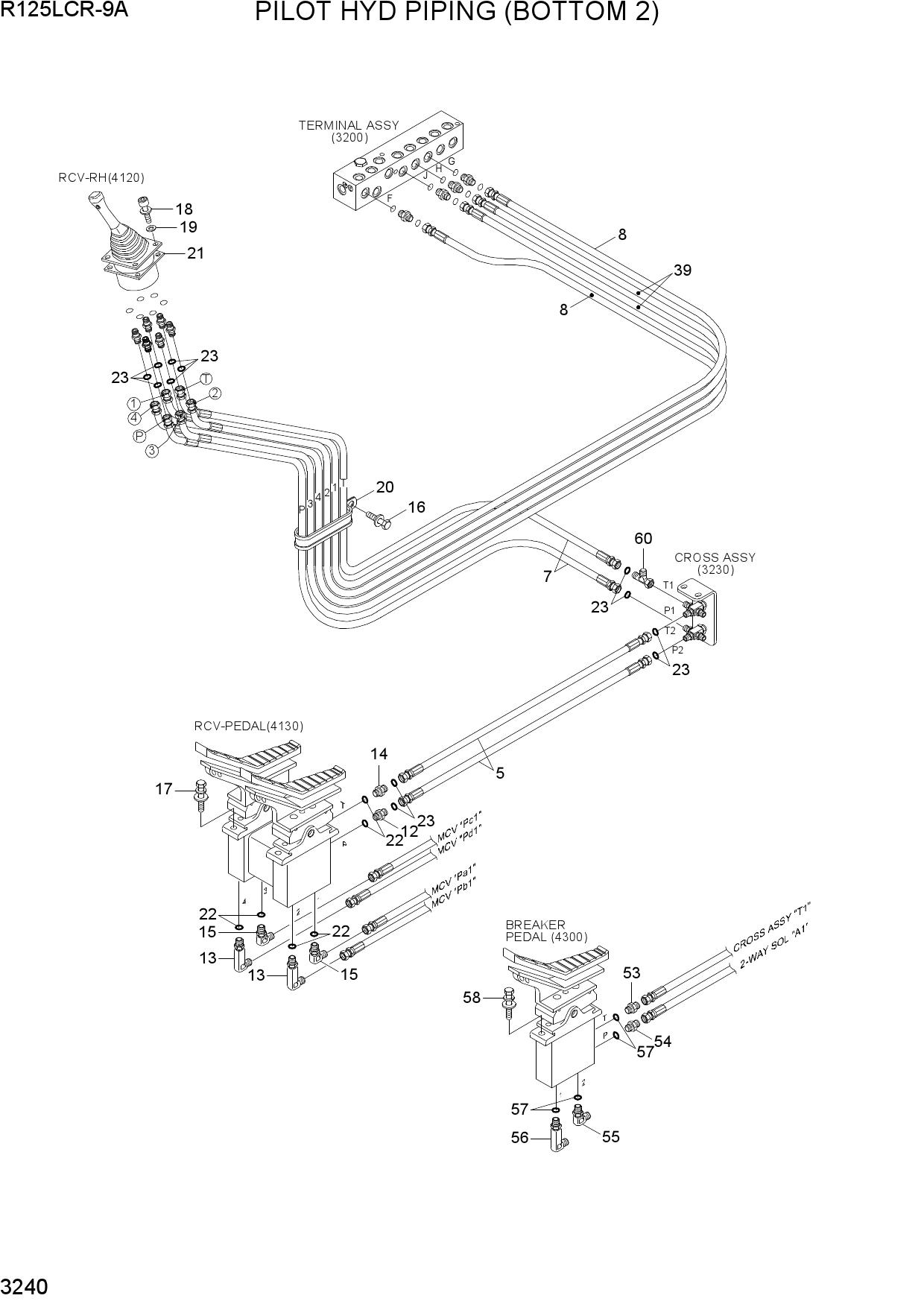

PILOT HYD PIPING (BOTTOM 2)
1 P910-042019
- P910-042019 - HOSE ASSY-ORFS 0X0
- Поз.: 5
2 P920-042023
- P920-042023 - HOSE ASSY-ORFS 0X45
- Поз.: 7
3 P920-042060
- P920-042060 - HOSE ASSY-ORFS 0X45
- Поз.: 8
4 31N6-25060
- 31N6-25060 - FILTER-LAST GUARD
- Поз.: 12
5 31N6-25110
- 31N6-25110 - ELBOW-90
- ORFS
- LONG
- Поз.: 13
6 X500-110001
- X500-110001 - CONNECTOR-ORFS
- Поз.: 14
7 X520-110001
- X520-110001 - ELBOW-90
- ORFS
- Поз.: 15
8 S037-102046
- S037-102046 - BOLT-W/WASHER
- Поз.: 16
9 S037-103026
- S037-103026 - BOLT-W/WASHER
- Поз.: 17
10 S035-063046
- S035-063046 - BOLT-W/WASHER
- Поз.: 18
11 S403-062006
- S403-062006 - WASHER-PLAIN
- Поз.: 19
12 31L7-10240
- 31L7-10240 - CLAMP-TUBE INS
- Поз.: 20
13 31M6-51061
- 31M6-51061 - SHIM(3.2T)
- Поз.: 21
14 S631-011004
- S631-011004 - O-RING
- Поз.: 22
15 S621-011001
- S621-011001 - O-RING
- Поз.: 23
16 P920-042058
- P920-042058 - HOSE ASSY-ORFS 0X45
- Поз.: 39
17 X500-110001
- X500-110001 - CONNECTOR-ORFS
- Поз.: 53
18 31N6-25060
- 31N6-25060 - FILTER-LAST GUARD
- Поз.: 54
19 X520-110001
- X520-110001 - ELBOW-90
- ORFS
- Поз.: 55
20 31N6-25110
- 31N6-25110 - ELBOW-90
- ORFS
- LONG
- Поз.: 56
21 S631-011004
- S631-011004 - O-RING
- Поз.: 57
22 S037-102526
- S037-102526 - BOLT-W/WASHER
- Поз.: 58
23 X840-515151
- X840-515151 - TEE-R/TYPE
- ORFS
- Поз.: 60
