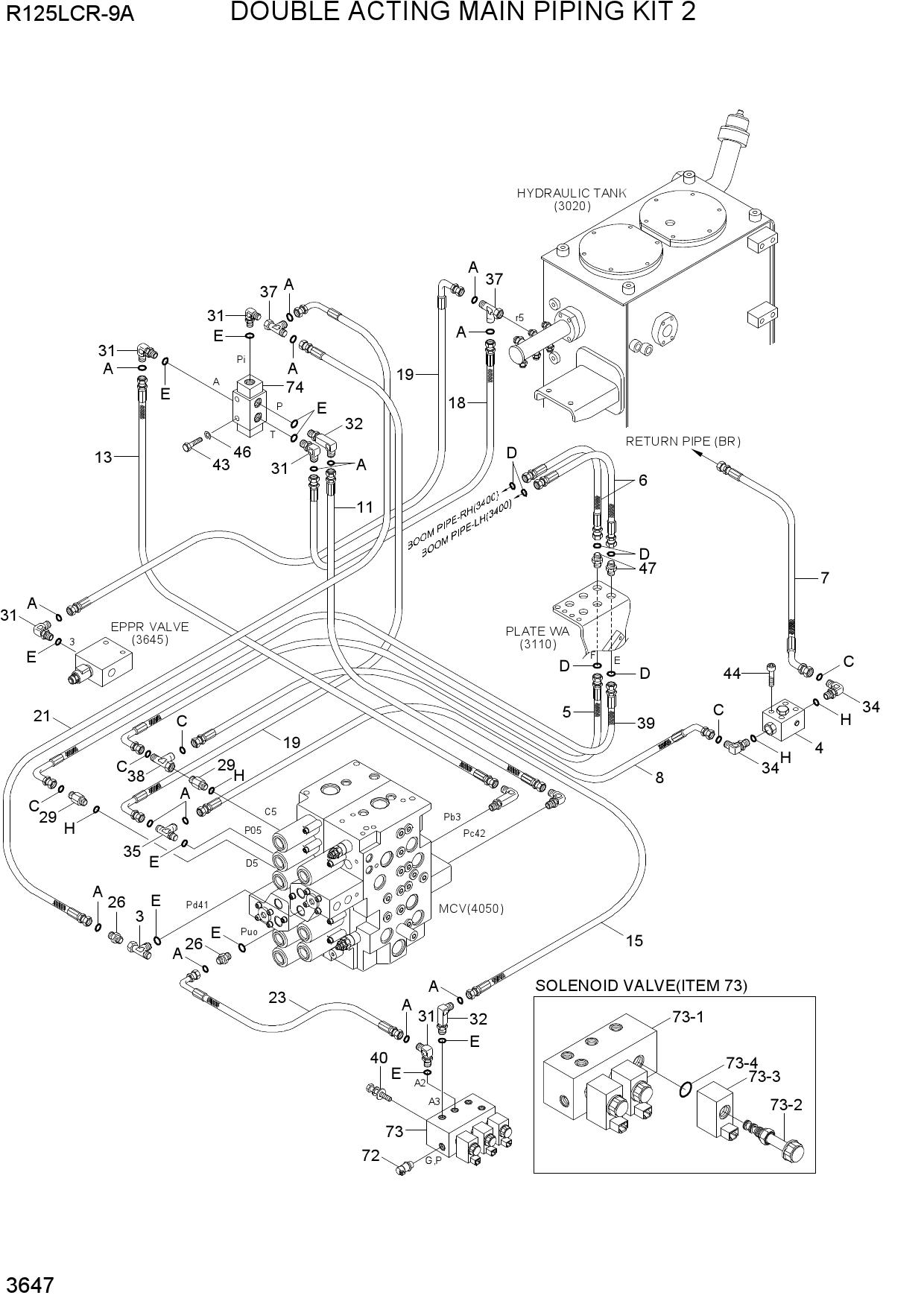

DOUBLE ACTING MAIN PIPING KIT 2
1 31N6-30130
- 31N6-30130 - TEE-SHUTTLE
- S/NUT
- Поз.: 3
2 31Q4-97011
- 31Q4-97011 - VALVE-STOP ASSY
- Поз.: 4
3 P933-126027
- P933-126027 - HOSE ASSY-ORFS 0X90
- Поз.: 5
4 P913-126033
- P913-126033 - HOSE ASSY-ORFS 0X0
- Поз.: 6
5 P923-123009
- P923-123009 - HOSE ASSY-ORFS 0X45
- Поз.: 7
6 P923-126031
- P923-126031 - HOSE ASSY-ORFS 0X45
- Поз.: 8
7 P910-042026
- P910-042026 - HOSE ASSY-ORFS 0X0
- Поз.: 11
8 P910-042029
- P910-042029 - HOSE ASSY-ORFS 0X0
- Поз.: 13
9 P910-042048
- P910-042048 - HOSE ASSY-ORFS 0X0
- Поз.: 15
10 P910-042008
- P910-042008 - HOSE ASSY-ORFS 0X0
- Поз.: 18
11 P930-042030
- P930-042030 - HOSE ASSY-ORFS 0X90
- Поз.: 19
12 P930-042042
- P930-042042 - HOSE ASSY-ORFS 0X90
- Поз.: 21
13 P930-042048
- P930-042048 - HOSE ASSY-ORFS 0X90
- Поз.: 23
14 X500-110001
- X500-110001 - CONNECTOR-ORFS
- Поз.: 26
15 X511-112546
- X511-112546 - CONNECTOR-LONG
- ORFS
- Поз.: 29
16 X520-110001
- X520-110001 - ELBOW-90
- ORFS
- Поз.: 31
17 31N6-25110
- 31N6-25110 - ELBOW-90
- ORFS
- LONG
- Поз.: 32
18 X520-110004
- X520-110004 - ELBOW-90
- ORFS
- Поз.: 34
19 X820-045151
- X820-045151 - TEE-R/TYPE
- ORFS
- Поз.: 35
20 X840-515151
- X840-515151 - TEE-R/TYPE
- ORFS
- Поз.: 37
21 X840-545454
- X840-545454 - TEE-R/TYPE
- SWIVEL
- ORFS
- Поз.: 38
22 P933-126028
- P933-126028 - HOSE ASSY-ORFS 0X90
- Поз.: 39
23 S035-082026
- S035-082026 - BOLT-W/WASHER
- Поз.: 40
24 S015-080506
- S015-080506 - BOLT-HEX
- Поз.: 43
25 S109-100606
- S109-100606 - BOLT-SOCKET
- Поз.: 44
26 S403-080006
- S403-080006 - WASHER-PLAIN
- Поз.: 46
27 X540-120004
- X540-120004 - CONNECTOR-ORFS
- Поз.: 47
28 31Q4-40830
- 31Q4-40830 - SENSOR-PRESSURE
- Поз.: 72
29 31Q6-20050
- 31Q6-20050 - VALVE-SOLENOID
- Поз.: 73
30 34Q6-20050
- 34Q6-20050 - MANIFOLD
- Поз.: 73-1
31 XKAL-00016
- XKAL-00016 - VALVE-SOLENOID
- Поз.: 73-2
32 XKAL-00050
- XKAL-00050 - COIL-2
- Поз.: 73-3
33 230.00.064.0
- 230.00.064.0 - SEAL
- Поз.: 73-4
34 31Q6-20150
- 31Q6-20150 - VALVE-SELECT
- Поз.: 74
