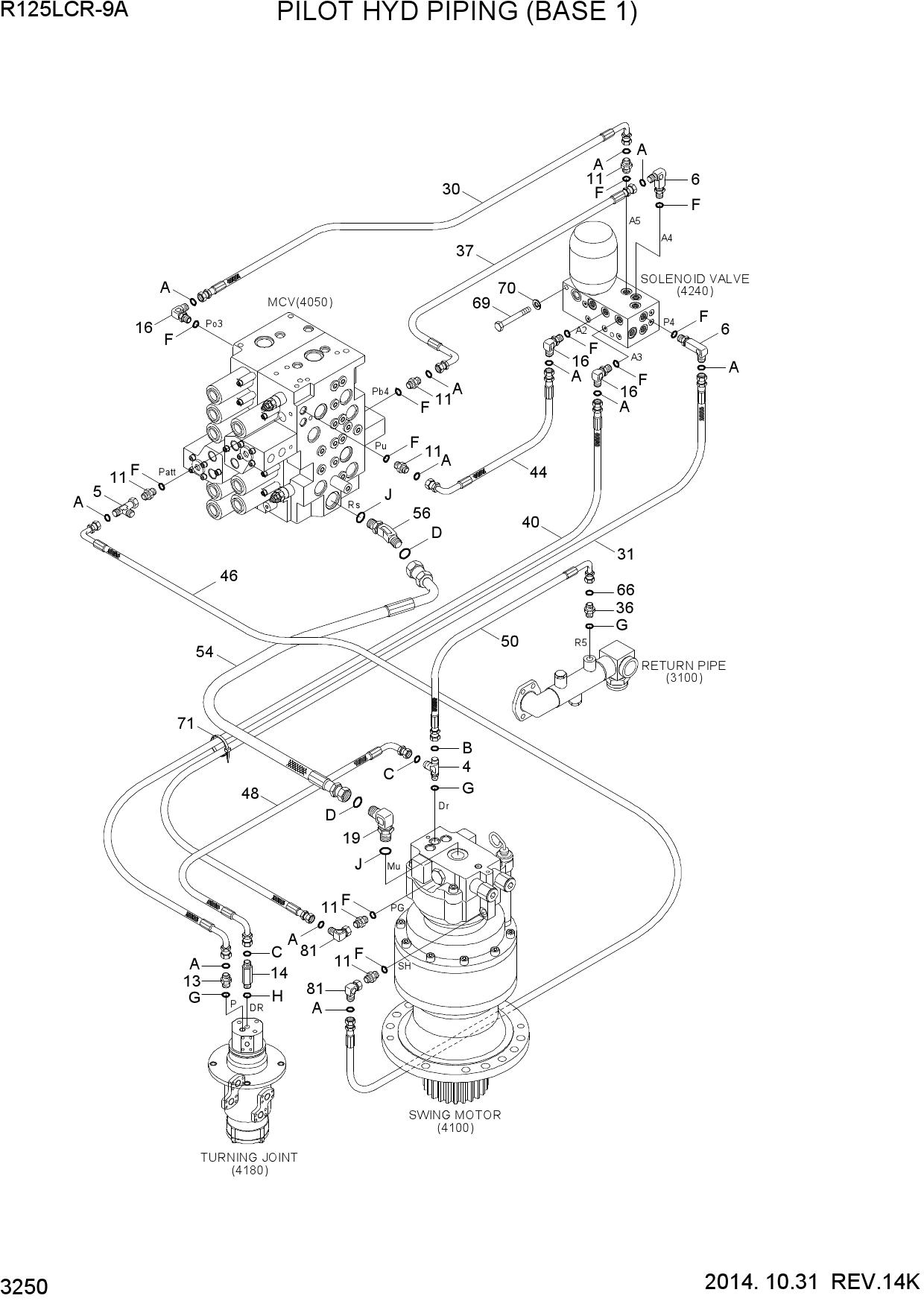

PILOT HYD PIPING (BASE 1)
1 31N4-22140
- 31N4-22140 - TEE-ORFS
- Поз.: 4
2 31N6-66080
- 31N6-66080 - TEE-BRENCH TEST
- Поз.: 5
3 31N6-25110
- 31N6-25110 - ELBOW-90
- ORFS
- LONG
- Поз.: 6
4 X500-110001
- X500-110001 - CONNECTOR-ORFS
- Поз.: 11
5 X500-110013
- X500-110013 - CONNECTOR-ORFS
- Поз.: 13
6 X511-108526
- X511-108526 - CONNECTOR-LONG
- ORFS
- Поз.: 14
7 X520-110001
- X520-110001 - ELBOW-90
- ORFS
- Поз.: 16
8 X520-110004
- X520-110004 - ELBOW-90
- ORFS
- Поз.: 19
9 P930-042014
- P930-042014 - HOSE ASSY-ORFS 0X90
- Поз.: 30
10 P910-042028
- P910-042028 - HOSE ASSY-ORFS 0X0
- Поз.: 31
11 X500-110012
- X500-110012 - CONNECTOR-ORFS
- Поз.: 36
12 P930-042018
- P930-042018 - HOSE ASSY-ORFS 0X90
- Поз.: 37
13 P930-042026
- P930-042026 - HOSE ASSY-ORFS 0X90
- Поз.: 40
14 P930-042024
- P930-042024 - HOSE ASSY-ORFS 0X90
- Поз.: 44
15 P930-042044
- P930-042044 - HOSE ASSY-ORFS 0X90
- Поз.: 46
16 P930-062013
- P930-062013 - HOSE ASSY-ORFS 0X90
- Поз.: 48
17 P930-082009
- P930-082009 - HOSE ASSY-ORFS 0X90
- Поз.: 50
18 P930-082010
- P930-082010 - HOSE ASSY-ORFS 0X90
- Поз.: 50
19 P933-122028
- P933-122028 - HOSE ASSY-ORFS 0X90
- Поз.: 54
20 31Q4-41050
- 31Q4-41050 - ELBOW-15
- LONG
- Поз.: 56
21 S621-012001
- S621-012001 - O-RING
- Поз.: 66
22 S017-101156
- S017-101156 - BOLT-HEX
- Поз.: 69
23 S411-100006
- S411-100006 - WASHER-SPRING
- Поз.: 70
24 S551-050203
- S551-050203 - CLAMP-BAND
- Поз.: 71
25 X850-515100
- X850-515100 - ELBOW-90
- SWIVEL
- ORFS
- Поз.: 81
