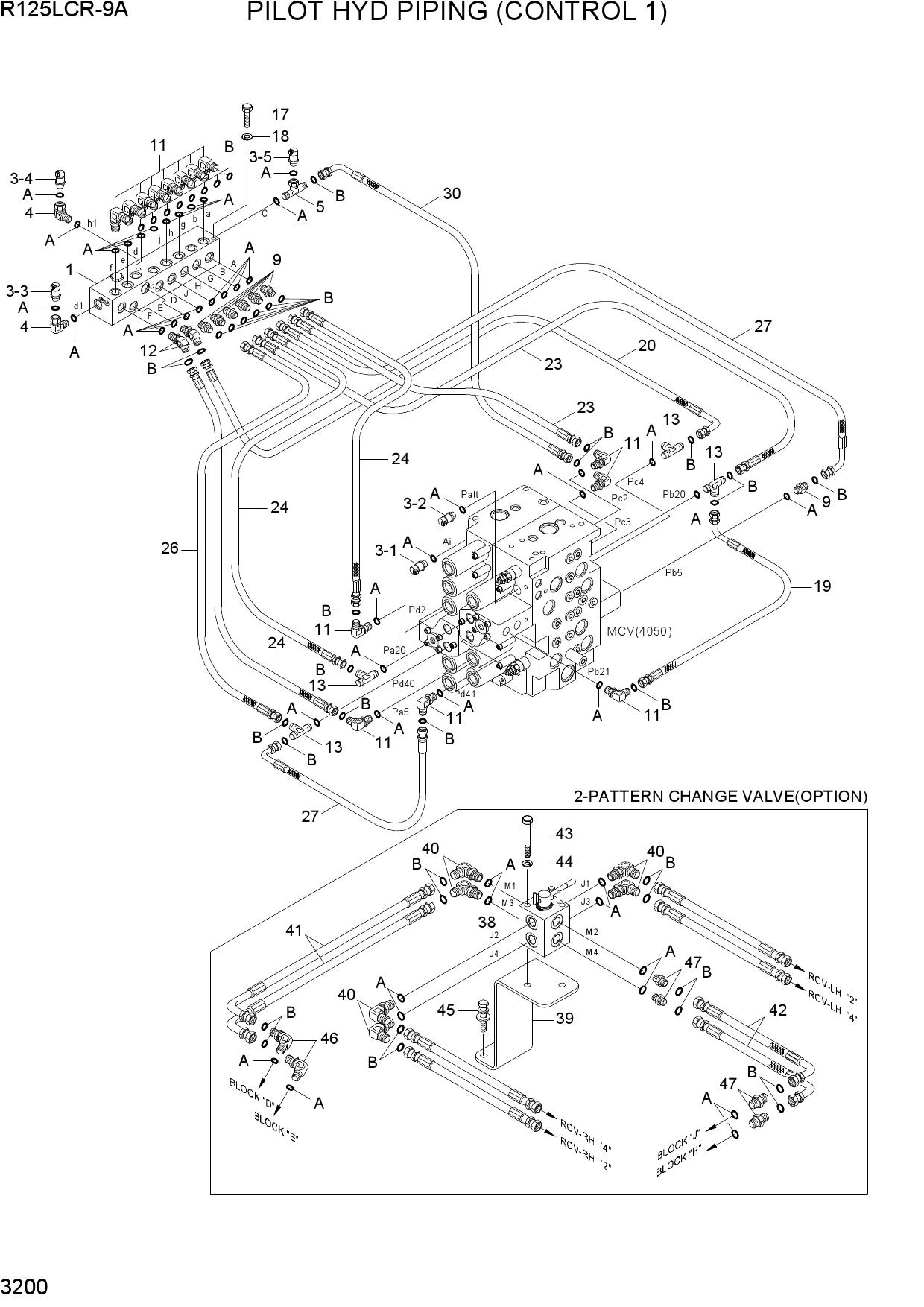

PILOT HYD PIPING (CONTROL 1)
1 31Q6-20171
- 31Q6-20171 - BLOCK-TERMINAL
- Поз.: 1
2 XKAL-00097
- XKAL-00097 - BLOCK-MANIFOLD
- Поз.: 1-1
3 XKAL-00096
- XKAL-00096 - VALVE-SHUTTLE
- Поз.: 1-2
4 31Q4-40830
- 31Q4-40830 - SENSOR-PRESSURE
- Поз.: 3-1
5 31Q4-40830
- 31Q4-40830 - SENSOR-PRESSURE
- Поз.: 3-2
6 31Q4-40830
- 31Q4-40830 - SENSOR-PRESSURE
- Поз.: 3-3
7 31Q4-40830
- 31Q4-40830 - SENSOR-PRESSURE
- Поз.: 3-4
8 31Q4-40830
- 31Q4-40830 - SENSOR-PRESSURE
- Поз.: 3-5
9 31E5-11110
- 31E5-11110 - ADAPTER
- Поз.: 4
10 31NB-20130
- 31NB-20130 - TEE-RUN TYPE/TEST
- Поз.: 5
11 X500-110001
- X500-110001 - CONNECTOR-ORFS
- Поз.: 9
12 X520-110001
- X520-110001 - ELBOW-90
- ORFS
- Поз.: 11
13 X530-110001
- X530-110001 - ELBOW-45
- ORFS
- Поз.: 12
14 X820-045151
- X820-045151 - TEE-R/TYPE
- ORFS
- Поз.: 13
15 S015-080806
- S015-080806 - BOLT-HEX
- Поз.: 17
16 S411-080006
- S411-080006 - WASHER-SPRING
- Поз.: 18
17 P930-042019
- P930-042019 - HOSE ASSY-ORFS 0X90
- Поз.: 19
18 P930-042011
- P930-042011 - HOSE ASSY-ORFS 0X90
- Поз.: 20
19 P910-042013
- P910-042013 - HOSE ASSY-ORFS 0X0
- Поз.: 23
20 P910-042020
- P910-042020 - HOSE ASSY-ORFS 0X0
- Поз.: 24
21 P910-042019
- P910-042019 - HOSE ASSY-ORFS 0X0
- Поз.: 26
22 P930-042012
- P930-042012 - HOSE ASSY-ORFS 0X90
- Поз.: 27
23 P930-042014
- P930-042014 - HOSE ASSY-ORFS 0X90
- Поз.: 30
24 31N6-22050
- 31N6-22050 - SELECTOR VLV-MULTIMODE
- Поз.: 38
25 31Q4-23180
- 31Q4-23180 - BRACKET-PATTERN VALVE
- Поз.: 39
26 X520-110001
- X520-110001 - ELBOW-90
- ORFS
- Поз.: 40
27 P930-042006
- P930-042006 - HOSE ASSY-ORFS 0X90
- Поз.: 41
28 P930-042008
- P930-042008 - HOSE ASSY-ORFS 0X90
- Поз.: 42
29 S015-080806
- S015-080806 - BOLT-HEX
- Поз.: 43
30 S411-080006
- S411-080006 - WASHER-SPRING
- Поз.: 44
31 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 45
32 X530-110001
- X530-110001 - ELBOW-45
- ORFS
- Поз.: 46
33 X500-110001
- X500-110001 - CONNECTOR-ORFS
- Поз.: 47
