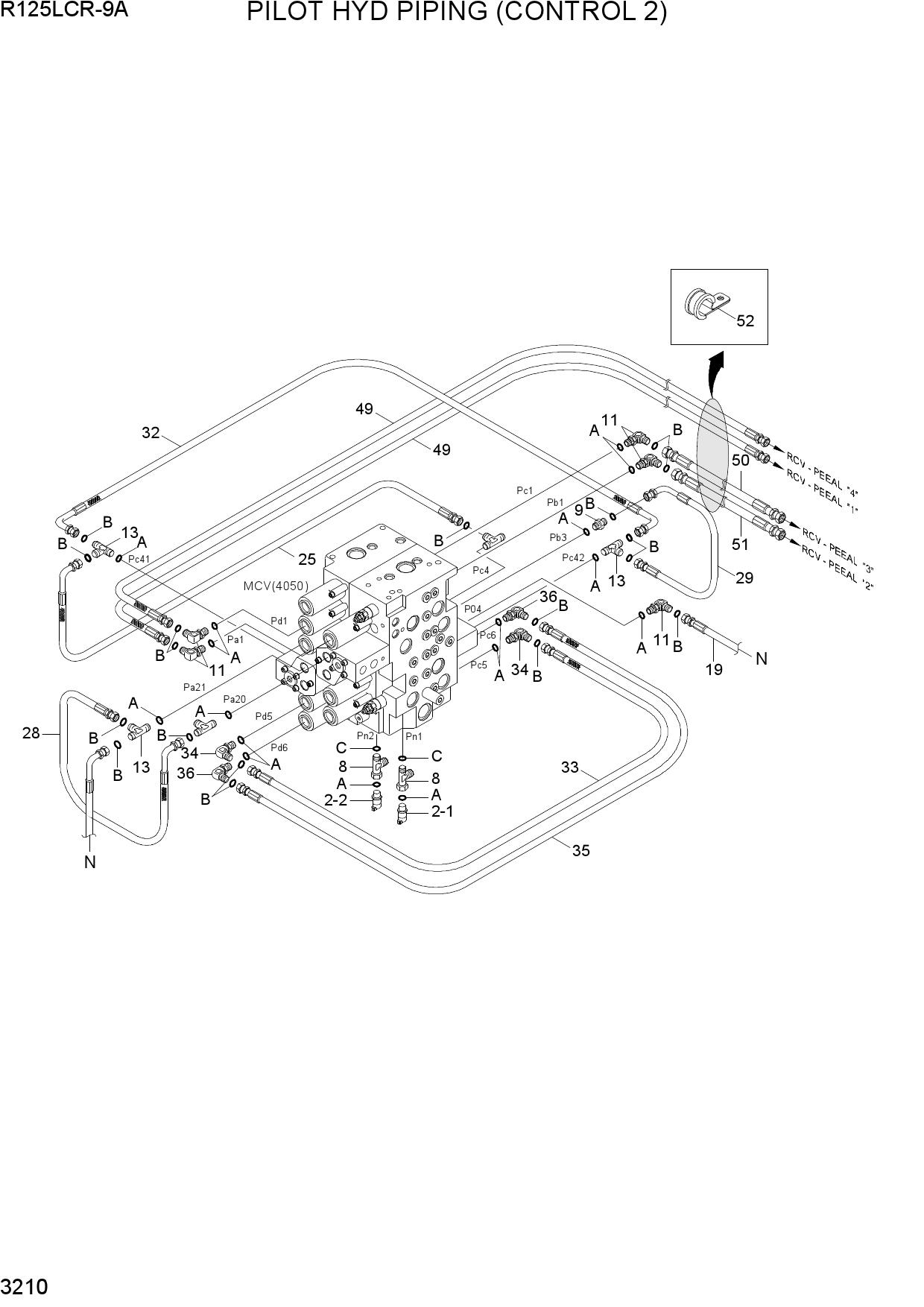

PILOT HYD PIPING (CONTROL 2)
1 31Q4-40820
- 31Q4-40820 - SENSOR-PRESSURE
- Поз.: 2-1
2 31Q4-40820
- 31Q4-40820 - SENSOR-PRESSURE
- Поз.: 2-2
3 31QA-22310
- 31QA-22310 - TEE-BRANCH TYPE
- Поз.: 8
4 X500-110001
- X500-110001 - CONNECTOR-ORFS
- Поз.: 9
5 X520-110001
- X520-110001 - ELBOW-90
- ORFS
- Поз.: 11
6 X820-045151
- X820-045151 - TEE-R/TYPE
- ORFS
- Поз.: 13
7 P930-042019
- P930-042019 - HOSE ASSY-ORFS 0X90
- Поз.: 19
8 P930-042016
- P930-042016 - HOSE ASSY-ORFS 0X90
- Поз.: 25
9 P930-042009
- P930-042009 - HOSE ASSY-ORFS 0X90
- Поз.: 28
10 P930-042010
- P930-042010 - HOSE ASSY-ORFS 0X90
- Поз.: 29
11 P930-042018
- P930-042018 - HOSE ASSY-ORFS 0X90
- Поз.: 32
12 P910-042013
- P910-042013 - HOSE ASSY-ORFS 0X0
- Поз.: 33
13 X520-110001
- X520-110001 - ELBOW-90
- ORFS
- Поз.: 34
14 P910-042013
- P910-042013 - HOSE ASSY-ORFS 0X0
- Поз.: 35
15 X520-110001
- X520-110001 - ELBOW-90
- ORFS
- Поз.: 36
16 P910-042064
- P910-042064 - HOSE ASSY-ORFS 0X0
- Поз.: 49
17 P910-042056
- P910-042056 - HOSE ASSY-ORFS 0X0
- Поз.: 50
18 P910-042058
- P910-042058 - HOSE ASSY-ORFS 0X0
- Поз.: 51
19 31L7-10210
- 31L7-10210 - CLAMP-TUBE INS
- Поз.: 52
