(B95C) - BACKHOE LOADER - TIER 4B (2/15-)
/

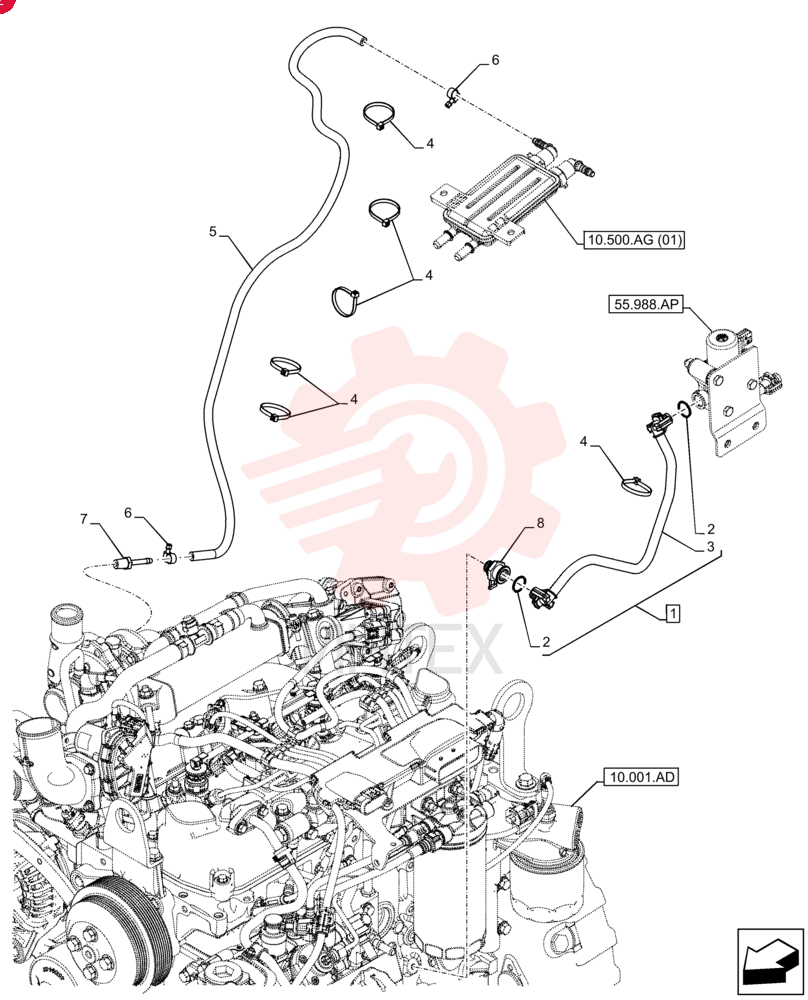

TUBE 47570667

TUBE 47570667

TUBE 47570667

1 47570667

  • 47570667 - TUBE

2 84206573

  • 84206573 - O-RING
  • 2.5mm Thk x 12mm ID
  • -70

3 NSS

  • NSS - NOT SOLD SEPARAT

4 L11541

  • L11541 - CABLE TIE
  • 203.2mm L
  • Nylon

5 47747028

  • 47747028 - HOSE
  • 6.35mm ID x 1200mm L

6 574518

  • 574518 - HOSE CLAMP
  • 6.3mm - 15.7mm
  • SAE # 4

7 87016893

  • 87016893 - FITTING
  • 1/4" Hose X 1/4" NPTF Beaded

8 84345040

  • 84345040 - ADAPTER
