Bobcat
/
442
/

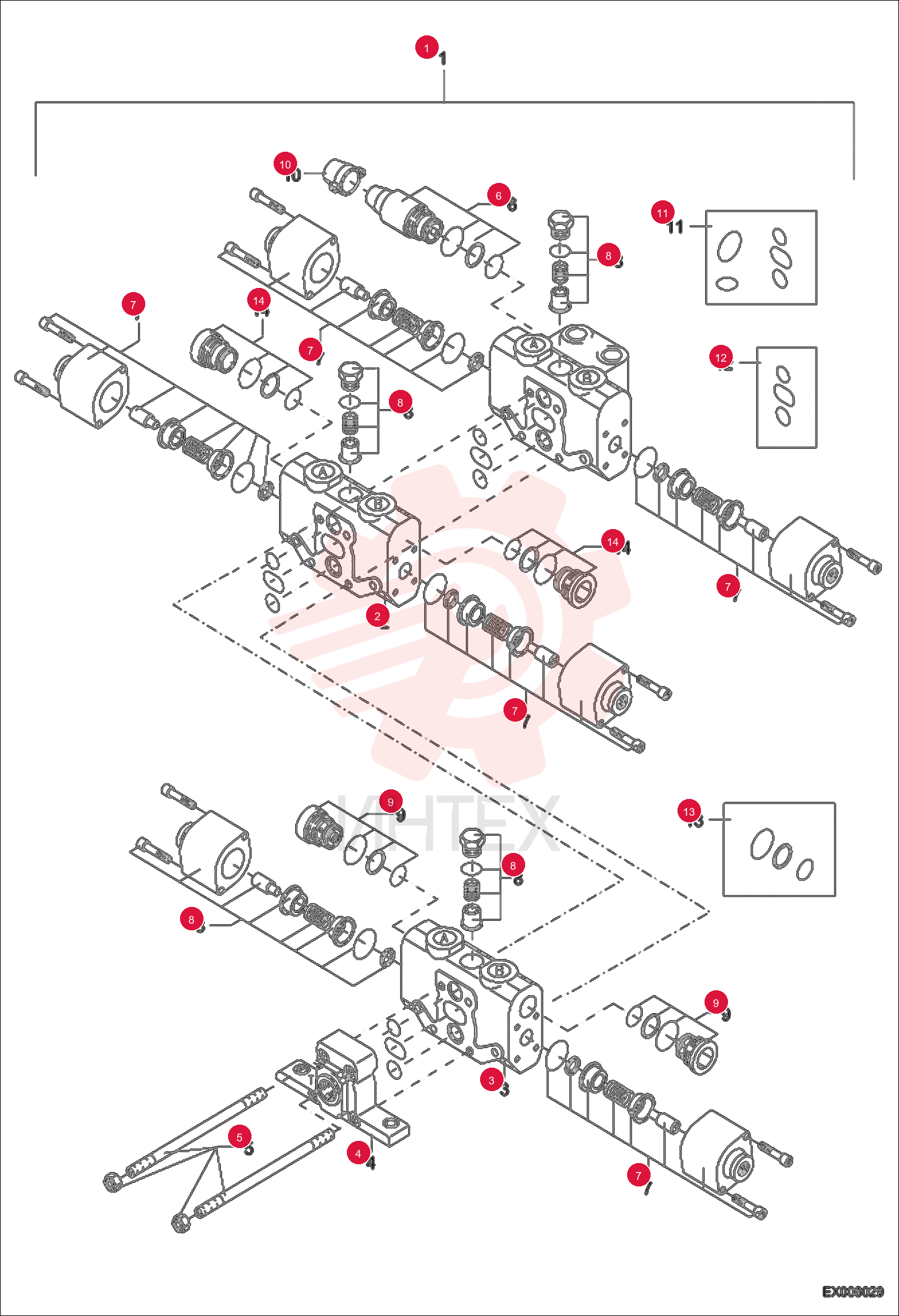

VALVE, CONTROL 5606665063 (5)

VALVE, CONTROL 5606665063 (5)

VALVE, CONTROL 5606665063 (5)

1 5606665063

  • 5606665063 - VALVE
  • CONTROL
  • W/Ref. 2-14 - Was 5606660408

2 5606664178

  • 5606664178 - DIRECTIONAL VALVE
  • W/Ref. 8-9

3 5606664273

  • 5606664273 - DIRECTIONAL VALVE
  • W/Ref. 8-10

4 5606664180

  • 5606664180 - VALVE
  • OUTLET

5 5606664181

  • 5606664181 - VALVE
  • DIRECTIONAL

6 5606664224

  • 5606664224 - PRESSURE RELIEF VALVE

7 5606664182

  • 5606664182 - VALVE
  • DIRECTIONAL

8 5606656636

  • 5606656636 - VALVE

9 5606656717

  • 5606656717 - PRES.LIMIT VALVE

10 5606664184

  • 5606664184 - LOCKING COVER

11 5606656639

  • 5606656639 - SET OF SEALS

12 5606656908

  • 5606656908 - SEAL KIT

13 5606664223

  • 5606664223 - SEAL KIT

14 5606656769

  • 5606656769 - VALVE TAPER
