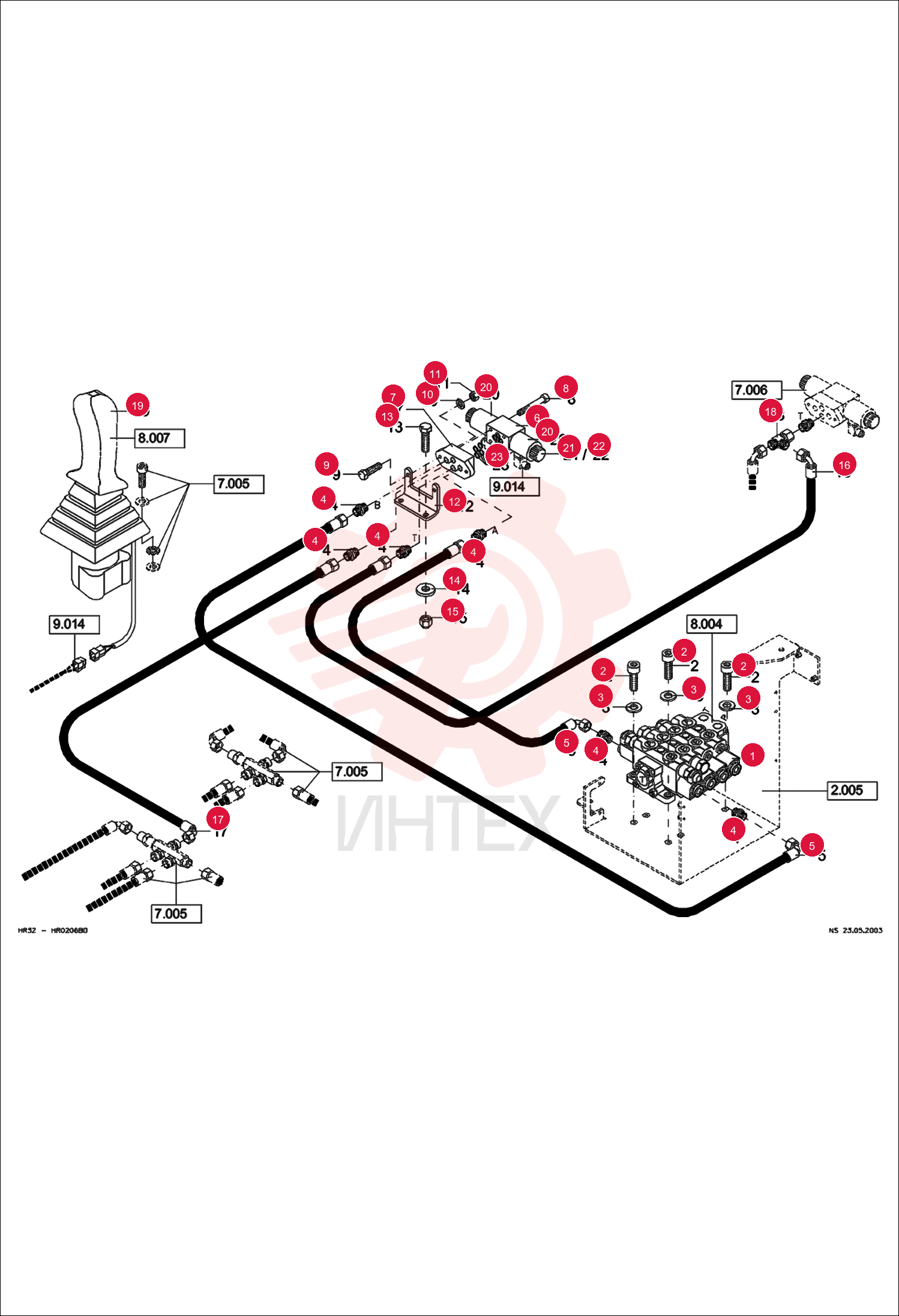

VALVE ASSY 5606660454 (1)

VALVE ASSY 5606660454 (1)

VALVE ASSY 5606660454 (1)

1 5606660454

  • 5606660454 - VALVE ASSY
  • 4 section valve bank - Include Ref. 2-7

2 1045707124

  • 1045707124 - BOLT

3 1290707020

  • 1290707020 - WASHER

4 1915060255

  • 1915060255 - FITTING

5 4506235351

  • 4506235351 - HOSE

6 5003700001

  • 5003700001 - DIRECT CONTR. VALVE
  • W/Ref. 20-23

7 5003700003

  • 5003700003 - CONNECTING PLATE

8 1045907011

  • 1045907011 - BOLT

9 1008707513

  • 1008707513 - BOLT

10 1290707014

  • 1290707014 - WASHER

11 1212251009

  • 1212251009 - NUT

12 0199006025

  • 0199006025 - BRACKET

13 1008707618

  • 1008707618 - BOLT

14 1343707057

  • 1343707057 - WASHER

15 1212251011

  • 1212251011 - NUT

16 4256033371

  • 4256033371 - HOSE
  • HYD
  • Was 4506033351

17 4506205351

  • 4506205351 - HOSE

18 1919060351

  • 1919060351 - FITTING

19 5606658844

  • 5606658844 - SERVO CONTROL

20 5003700025

  • 5003700025 - COIL

21 5003700026

  • 5003700026 - NUT W/SEAL
  • W/Ref. 22

22 1970956810

  • 1970956810 - O-RING

23 5003700027

  • 5003700027 - SEAL KIT
