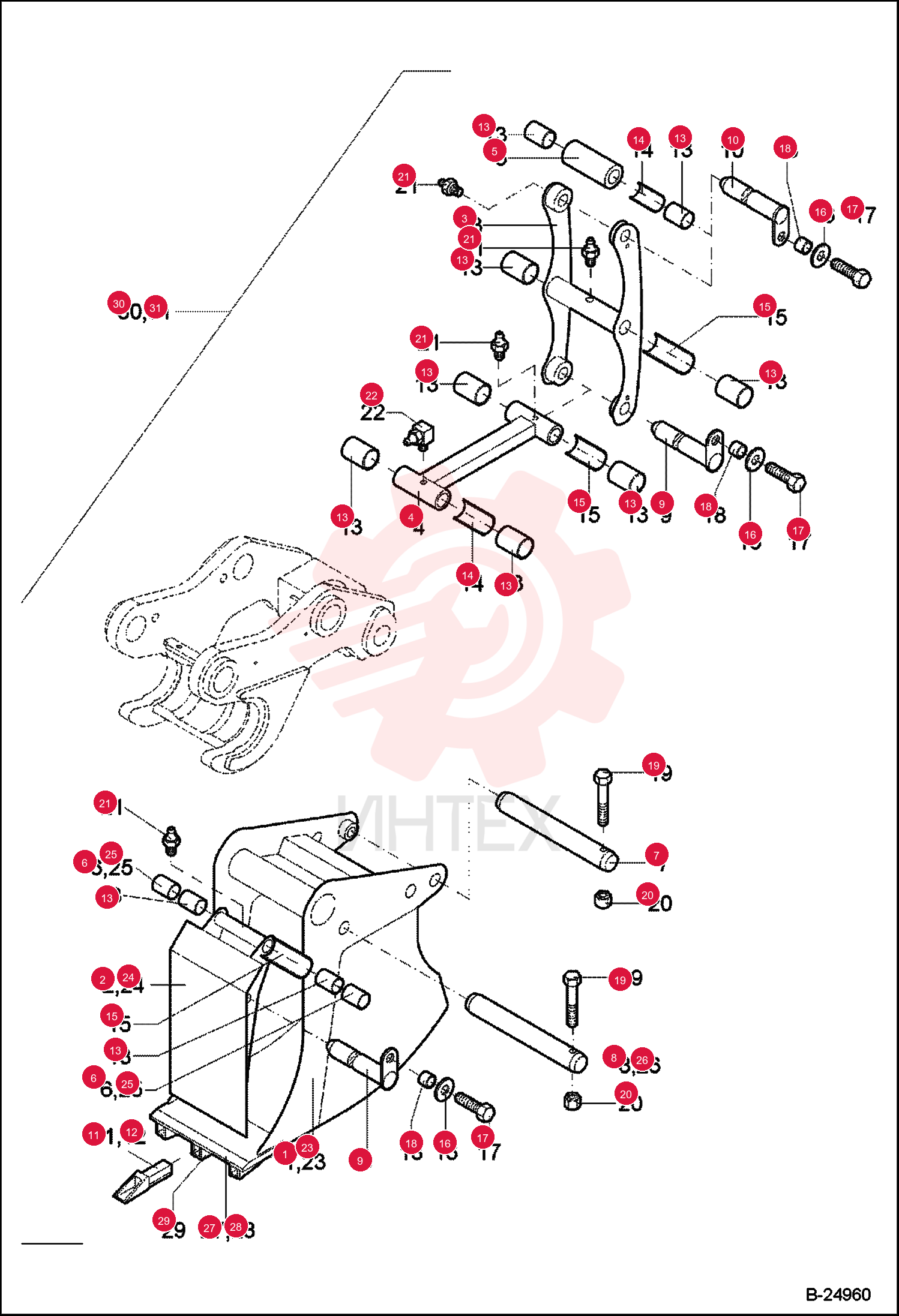

BUCKET LINK 6151720006 (1)

BUCKET LINK 6151720006 (1)

BUCKET LINK 6151720006 (1)

1 6151720006

  • 6151720006 - BUCKET LINK

2 6151720107

  • 6151720107 - LINKAGE

3 6151720008

  • 6151720008 - BUSHING

4 6223268008

  • 6223268008 - BUSHING
  • 350mm

5 0151720014

  • 0151720014 - PIN
  • Was 6151720014

6 5305670010

  • 5305670010 - PIN
  • Was 0223268014

7 0151720015

  • 0151720015 - PIN
  • Was 6151720015

8 0151720018

  • 0151720018 - PIN
  • Was 6151720018

9 5455197000

  • 5455197000 - TOOTH

10 5455700096

  • 5455700096 - TOOTH CUP
  • Was 5455205000

11 5557203105

  • 5557203105 - BUSHING

12 6223268010

  • 6223268010 - SPACER

13 6223268011

  • 6223268011 - BUSHING

14 1343707061

  • 1343707061 - WASHER

15 1008707529

  • 1008707529 - BOLT

16 0333023033

  • 0333023033 - SPACER BUSHING

17 1007707020

  • 1007707020 - BOLT

18 1212251011

  • 1212251011 - NUT

19 1607003010

  • 1607003010 - GREASE NIPPLE

20 1609003010

  • 1609003010 - GRAESE NIPPLE

21 6151721014

  • 6151721014 - PIN
  • 450mm

22 6223268035

  • 6223268035 - BLADE
  • 350mm

23 6151721036

  • 6151721036 - BLADE
  • 450mm

24 5455197100

  • 5455197100 - SLEEVE
