Bobcat
/
442
/

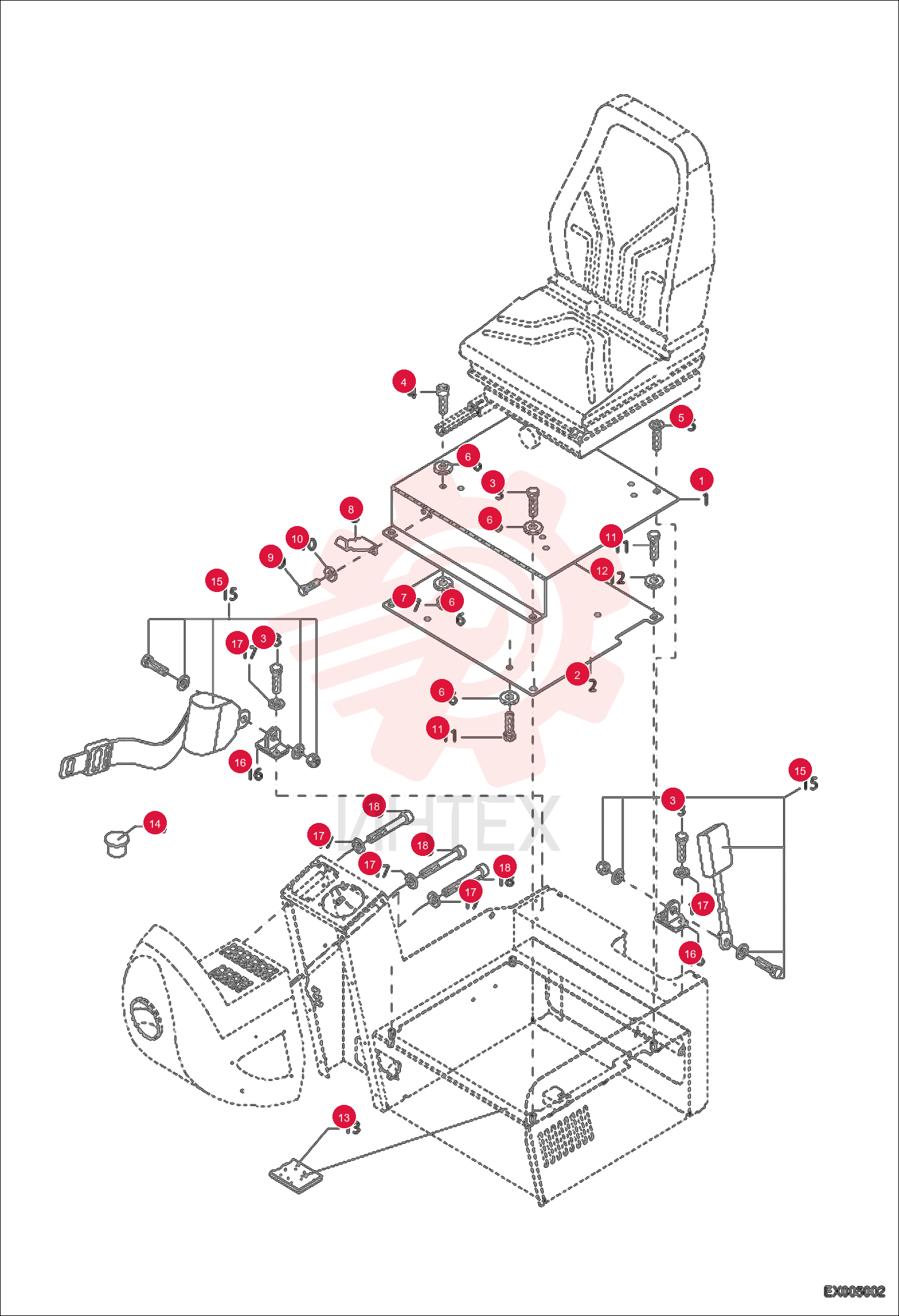

SEAT CONSOLE 6188827095 (3)

SEAT CONSOLE 6188827095 (3)

SEAT CONSOLE 6188827095 (3)

1 6188827095

  • 6188827095 - SEAT CONSOLE

2 6190116005

  • 6190116005 - SEAT CONSOLE

3 1008707318

  • 1008707318 - BOLT

4 1045707018

  • 1045707018 - BOLT

5 1062707018

  • 1062707018 - BOLT

6 1307707018

  • 1307707018 - WASHER

7 1212251011

  • 1212251011 - NUT

8 6188915005

  • 6188915005 - BRACKET

9 1008707912

  • 1008707912 - BOLT

10 1343707055

  • 1343707055 - WASHER

11 1008707018

  • 1008707018 - BOLT

12 1307707018

  • 1307707018 - WASHER

13 5354640125

  • 5354640125 - NEOPRENE STRIP
  • sold per foot

14 1980930494

  • 1980930494 - PLUG

15 5305639665

  • 5305639665 - BELT
  • SEAT

16 6190267005

  • 6190267005 - MOUNT

17 1290707018

  • 1290707018 - WASHER

18 1045707121

  • 1045707121 - BOLT
