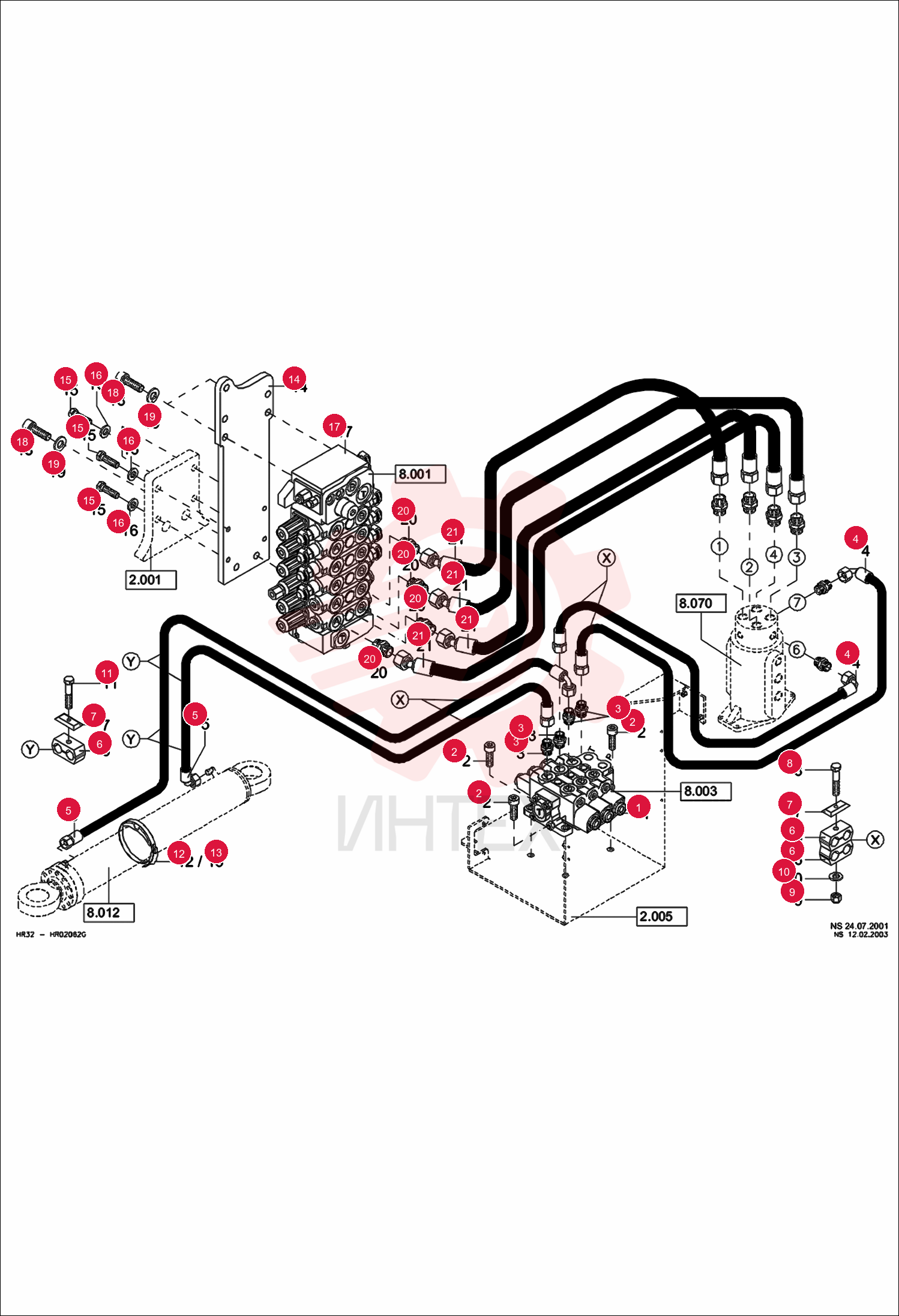

VALVE, CONTROL 5606665063 (1)

VALVE, CONTROL 5606665063 (1)

VALVE, CONTROL 5606665063 (1)

1 5606665063

  • 5606665063 - VALVE
  • CONTROL
  • 3 section valve bank
  • Includes Ref. 2-6 - Was 5606660408

2 1045707124

  • 1045707124 - BOLT

3 1915060262

  • 1915060262 - FITTING

4 4260150374

  • 4260150374 - HOSE

5 4260232374

  • 4260232374 - HOSE

6 5660199785

  • 5660199785 - HOSE CLIP

7 5660200230

  • 5660200230 - COVER PLATE

8 1007707520

  • 1007707520 - BOLT

9 1212251011

  • 1212251011 - NUT

10 1343707057

  • 1343707057 - WASHER

11 1007707220

  • 1007707220 - BOLT
  • Was 1007707120

12 5660095400

  • 5660095400 - HOSE CLIP

13 0110012050

  • 0110012050 - RUBBER LAYER

14 6190008010

  • 6190008010 - VALVE BRACKET

15 1008707230

  • 1008707230 - BOLT

16 1290707022

  • 1290707022 - WASHER

17 5606660410

  • 5606660410 - VALVE
  • CONTROL
  • 6 section valve bank - Includes Ref. 2-9

18 1045707036

  • 1045707036 - BOLT

19 1290707025

  • 1290707025 - WASHER

20 1915060470

  • 1915060470 - FITTING

21 4266052404

  • 4266052404 - HOSE
