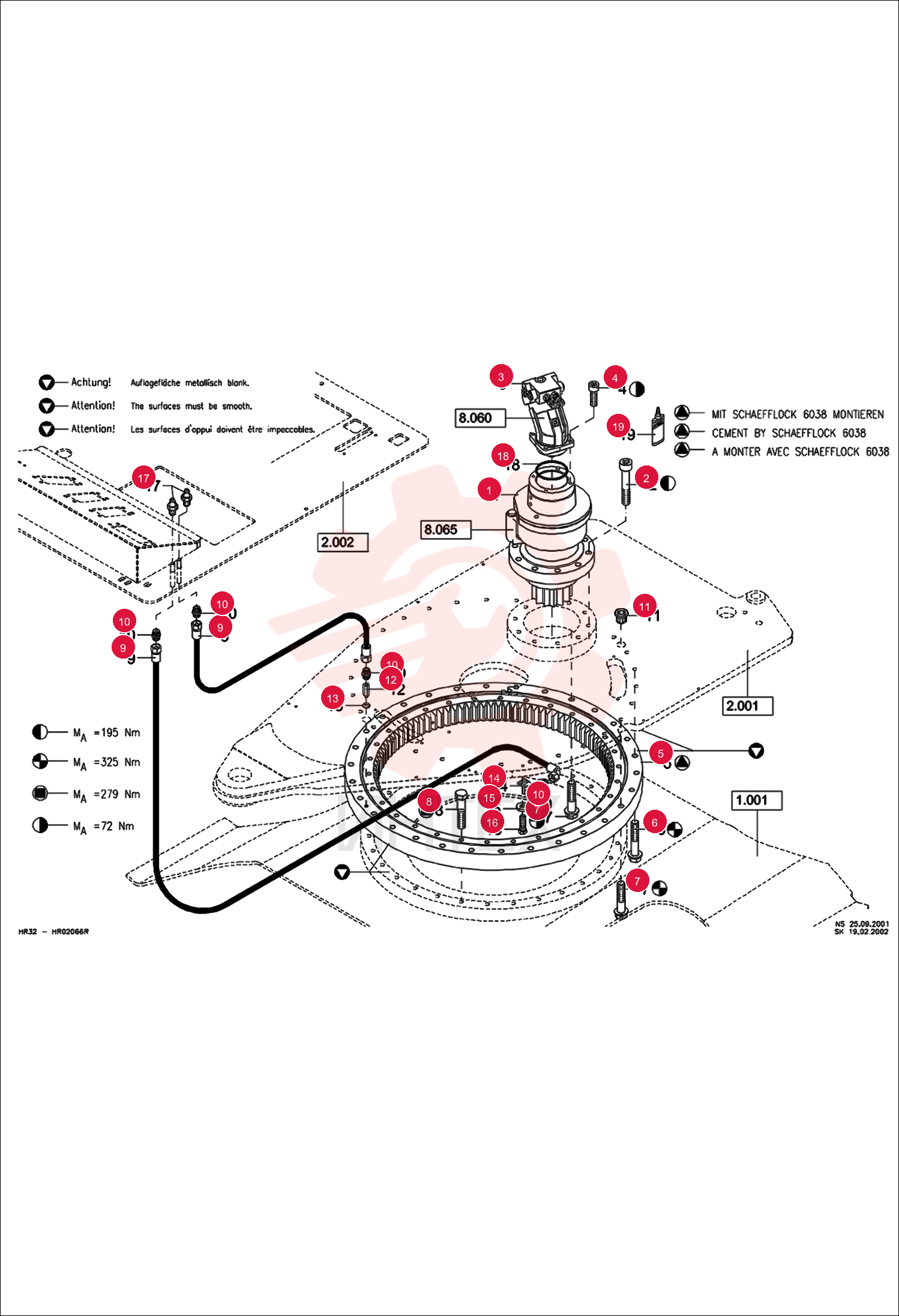

SLEW GEAR 5904670005 (1)

SLEW GEAR 5904670005 (1)

SLEW GEAR 5904670005 (1)

1 5904670005

  • 5904670005 - SLEW GEAR

2 1045707642

  • 1045707642 - BOLT

3 5364664075

  • 5364664075 - TRAVEL MOTOR

4 1047907124

  • 1047907124 - BOLT

5 5609661455

  • 5609661455 - SLEW RING

6 1017341841

  • 1017341841 - BOLT

7 1017341641

  • 1017341641 - BOLT

8 1007341242

  • 1007341242 - BOLT

9 0190006008

  • 0190006008 - HOSE ASSEMBLY CPL.

10 1915060553

  • 1915060553 - FITTING

11 1912060451

  • 1912060451 - PLUG

12 0209006040

  • 0209006040 - ADAPTER

13 1636815272

  • 1636815272 - SEAL RING

14 0176006010

  • 0176006010 - NOZZLE

15 1343707057

  • 1343707057 - WASHER

16 1008707018

  • 1008707018 - BOLT

17 1607003010

  • 1607003010 - GREASE NIPPLE

18 1970956336

  • 1970956336 - O-RING

19 MCS001038A

  • MCS001038A - GLUE
