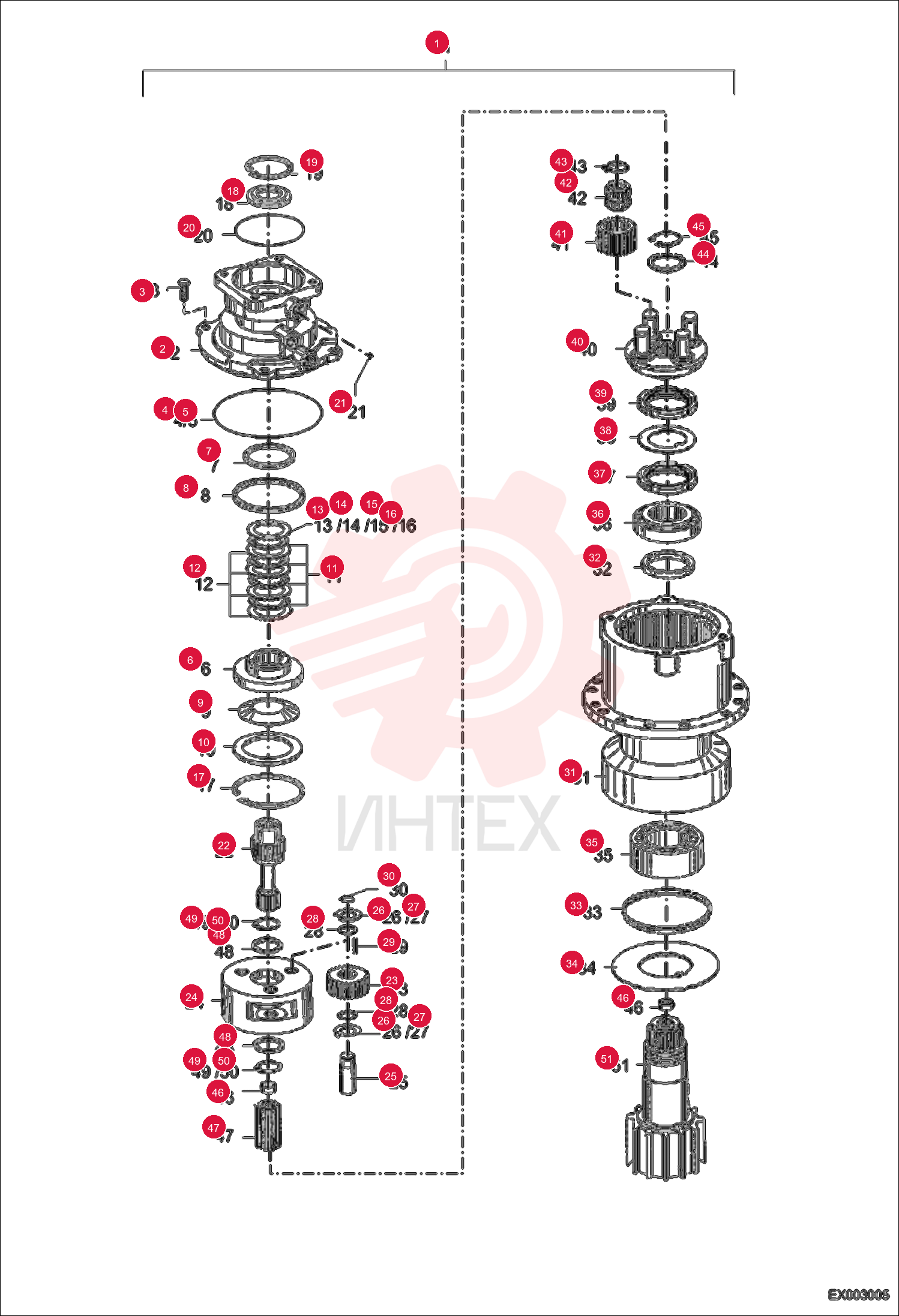

SLEW GEAR 5904670005 (8)

SLEW GEAR 5904670005 (8)

SLEW GEAR 5904670005 (8)

1 5904670005

  • 5904670005 - SLEW GEAR

2 5904658719

  • 5904658719 - BRAKE CASING

3 5904658118

  • 5904658118 - BOLT

4 5904657853

  • 5904657853 - O-RING

5 5904658116

  • 5904658116 - O-RING

6 5904658720

  • 5904658720 - PISTON

7 5904658721

  • 5904658721 - LIP SEAL

8 5904658722

  • 5904658722 - NUTRING

9 5904658723

  • 5904658723 - BELLEVILLE SPRING

10 5904658724

  • 5904658724 - SUPPORTING RING

11 5904658725

  • 5904658725 - DISC INNER

12 5904658726

  • 5904658726 - OUTER DISC
  • 1
  • 4

13 5904658727

  • 5904658727 - OUTER DISC
  • 1
  • 2

14 5904658726

  • 5904658726 - OUTER DISC
  • 1
  • 4

15 5904658728

  • 5904658728 - OUTER DISC
  • 1
  • 6

16 5904658729

  • 5904658729 - OUTER DISC
  • 1
  • 8

17 5904658730

  • 5904658730 - CIRCLIP

18 5904658731

  • 5904658731 - BUSHING

19 1455622369

  • 1455622369 - CIRCLIP

20 1970956336

  • 1970956336 - O-RING

21 5904658732

  • 5904658732 - COVER

22 5904658733

  • 5904658733 - DRIVE SHAFT

23 5904658734

  • 5904658734 - PLANETARY WHEEL

24 5904658735

  • 5904658735 - PLANETARY SUPPORT

25 5904658736

  • 5904658736 - PIN

26 5904658737

  • 5904658737 - WASHER

27 5904658738

  • 5904658738 - WASHER

28 5904658739

  • 5904658739 - WASHER

29 5904658740

  • 5904658740 - LAGERNAGEL

30 5904658741

  • 5904658741 - CIRCLIP

31 5904658743

  • 5904658743 - DRIVE CASING

32 5904658744

  • 5904658744 - SCRAPER RING

33 5904658745

  • 5904658745 - SEAL

34 5904658746

  • 5904658746 - WASHER

35 5904658747

  • 5904658747 - ROLLER BEARING

36 5904658748

  • 5904658748 - BEARING

37 5904658749

  • 5904658749 - SLOTTED ROUND NUT

38 5904658750

  • 5904658750 - LOCK PLATE

39 5904658749

  • 5904658749 - SLOTTED ROUND NUT
  • NLA - Was 5904658751

40 5904658752

  • 5904658752 - PLANETARY SUPPORT

41 5904658753

  • 5904658753 - PLANETARY WHEEL

42 5904658754

  • 5904658754 - ROLLER BEARING

43 5904658755

  • 5904658755 - CIRCLIP

44 5904658762

  • 5904658762 - SHIM

45 1455622250

  • 1455622250 - CIRCLIP

46 5904658756

  • 5904658756 - AXIAL BALL BEARING

47 5904658757

  • 5904658757 - SUN WHEEL

48 5904658758

  • 5904658758 - SUPPORTING RING

49 5904658759

  • 5904658759 - CIRCLIP

50 5904658760

  • 5904658760 - CIRCLIP

51 5904658761

  • 5904658761 - DRIVE SHAFT
