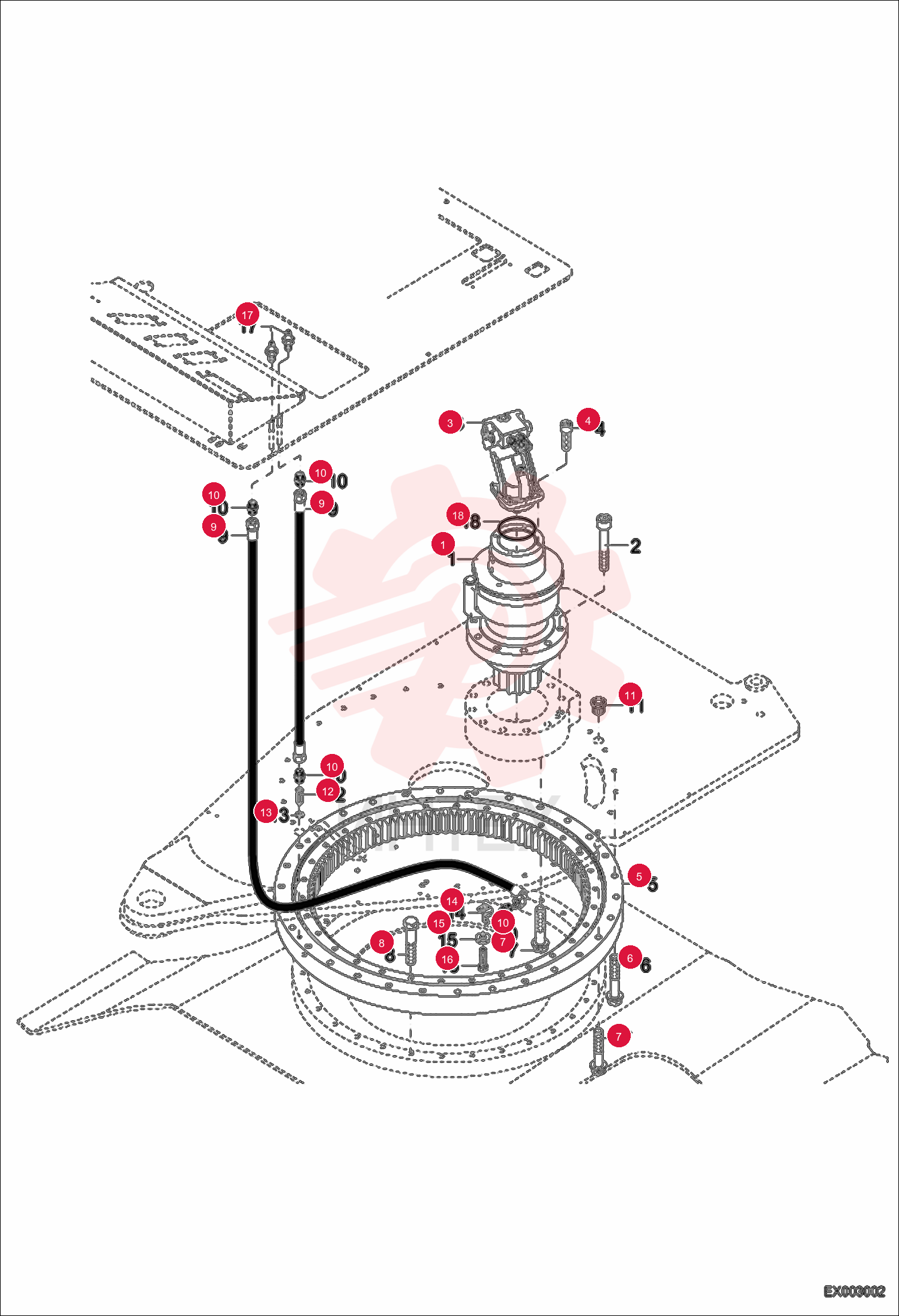

SLEW GEAR 5904670005 (7)

SLEW GEAR 5904670005 (7)

SLEW GEAR 5904670005 (7)

1 5904670005

  • 5904670005 - SLEW GEAR

2 5364664075

  • 5364664075 - TRAVEL MOTOR

3 1047341124

  • 1047341124 - BOLT

4 5609661455

  • 5609661455 - SLEW RING

5 1017341841

  • 1017341841 - BOLT

6 1017341641

  • 1017341641 - BOLT

7 1007341242

  • 1007341242 - BOLT

8 0190006008

  • 0190006008 - HOSE ASSEMBLY CPL.

9 1915060553

  • 1915060553 - FITTING

10 1912060451

  • 1912060451 - PLUG

11 0209006040

  • 0209006040 - ADAPTER

12 1636815272

  • 1636815272 - SEAL RING

13 0176006010

  • 0176006010 - NOZZLE

14 1343707057

  • 1343707057 - WASHER

15 1008707018

  • 1008707018 - BOLT

16 1607003010

  • 1607003010 - GREASE NIPPLE

17 1970956336

  • 1970956336 - O-RING
