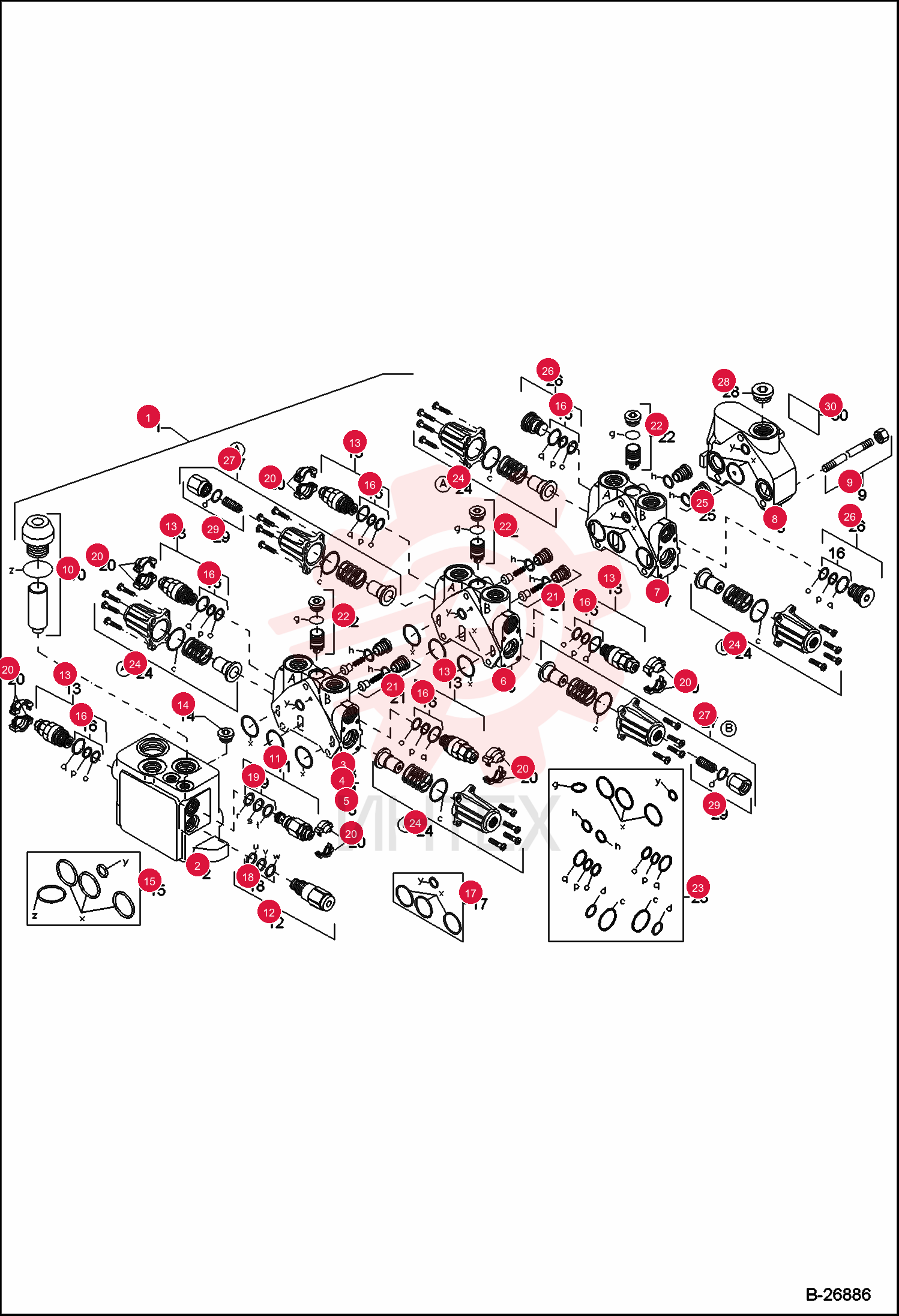

VALVE, CONTROL 5606660410 (4)
1 5606660410
- 5606660410 - VALVE
- CONTROL
- SX14 - 6 section valve bank - monobloc boom - Includes Ref. 2-9
2 5606664185
- 5606664185 - INLET ELEMENT
- W/Ref. 10-20
3 5606664186
- 5606664186 - DIRECTIONAL VALVE
- Boom - W/Ref. 13
- 16
- 17 & 20 - 24
4 5606664187
- 5606664187 - DIRECTIONAL VALVE
- Arm - W/Ref. 13
- 16
- 17 & 20 - 24
5 5606664188
- 5606664188 - DIRECTIONAL VALVE
- Bucket - W/Ref. 13
- 16
- 17 & 20 - 24
6 5606664189
- 5606664189 - DIRECTIONAL VALVE
- Auxiliary - W/Ref. 13
- 16
- 20 - 23 & 27
7 5606664190
- 5606664190 - DIRECTIONAL VALVE
- Left & Right Travel - W/Ref. 16
- 17
- 20 & 22 - 26
8 5606664191
- 5606664191 - OUTLET ELEMENT
- W/Ref. 17 & 28
9 5606664192
- 5606664192 - TIE ROD KIT
10 5606664193
- 5606664193 - REGULATION KIT
11 5606664212
- 5606664212 - PRESS RELIEF VALVE
12 5606656829
- 5606656829 - CURRENT REGULATOR
13 5606664224
- 5606664224 - PRESSURE RELIEF VALVE
- W/Ref. 16
14 5606664383
- 5606664383 - PLUG
15 5606664196
- 5606664196 - SEAL KIT
- inlet section
16 5606664223
- 5606664223 - SEAL KIT
17 5606664198
- 5606664198 - SEAL KIT
- between work section
18 5606664199
- 5606664199 - SEAL KIT
19 5606664336
- 5606664336 - SEAL KIT
20 5606664184
- 5606664184 - LOCKING COVER
21 5606664201
- 5606664201 - CHECK VALVE
22 5606664202
- 5606664202 - PRESS COMPENSATOR
23 5606664203
- 5606664203 - SEAL KIT
- seals one work section
24 5520609144
- 5520609144 - O-RING
25 5606664593
- 5606664593 - CAP
26 5606664204
- 5606664204 - KIT HYDRAULIC OPERATION
27 5606664205
- 5606664205 - CHECK VALVE
28 5606656769
- 5606656769 - VALVE TAPER
29 5606664206
- 5606664206 - KIT HYDRAULIC OPERATION
30 5606664207
- 5606664207 - PLUG
31 5606664368
- 5606664368 - STROKE LIMITER KIT
