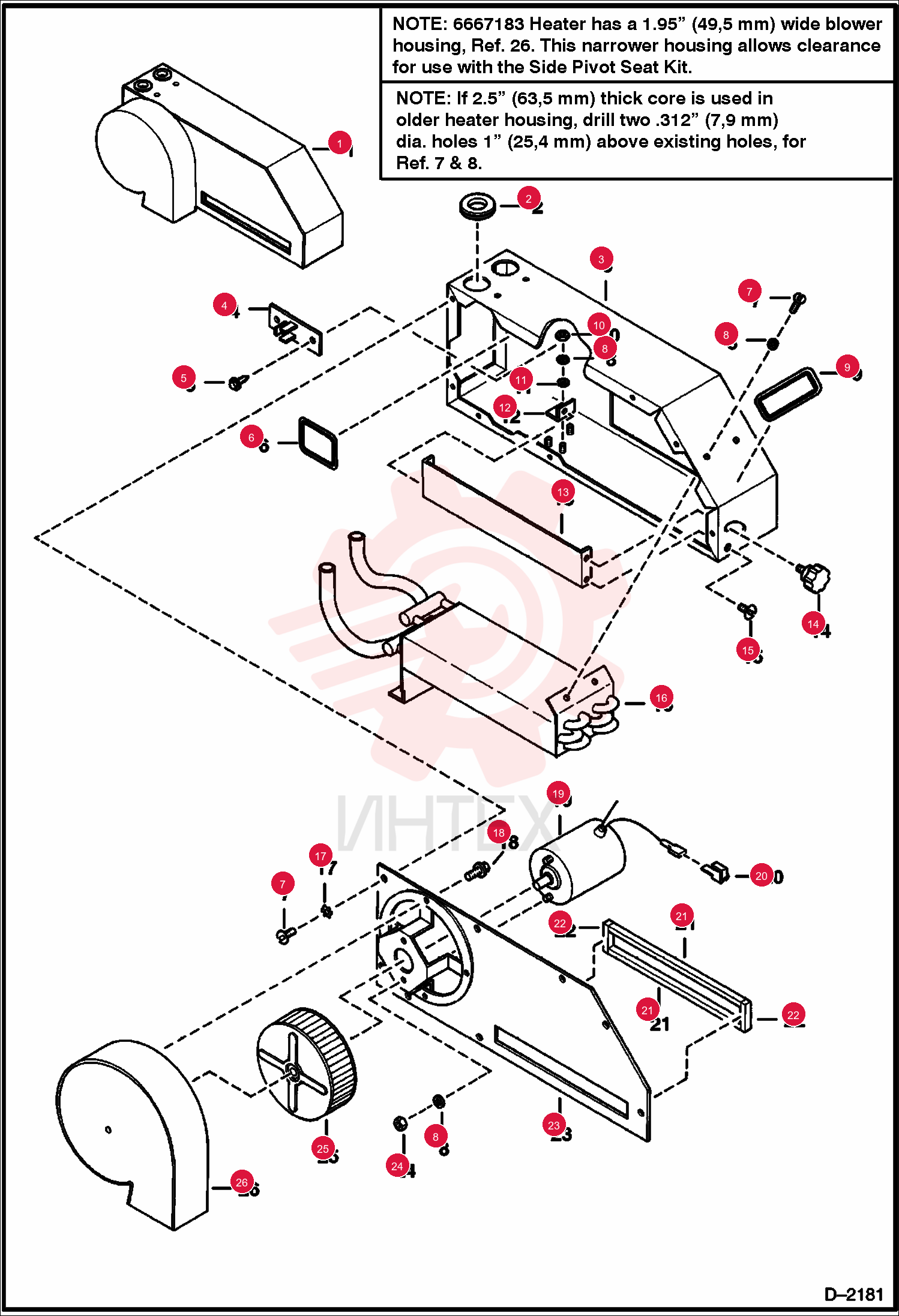

HTR. ASSY 6667183

HTR. ASSY 6667183

HTR. ASSY 6667183

1 6667183

  • 6667183 - HTR. ASSY
  • W/Ref. 2-26 - this heater has a 1.95" (49
  • 5 mm) wide blower housing
  • Ref. 26 - this narrower housing allows clearance for use with the side pivot seat kit

2 6669689

  • 6669689 - HEATERASY
  • W/Ref. 2-26 - W/rear hole in blower wheel housing & 2.5" (63
  • 5 mm) thick heater core

3 6641056

  • 6641056 - GROMMET

4 6660874

  • 6660874 - HOUSING
  • heater - 2.5" (63
  • 5 mm) thick heater core
  • is used in this older heater housing
  • drill two holes above existing holes
  • for Ref. 7 & 8

5 6664806

  • 6664806 - HOUSING
  • heater - 18.3"(464
  • 8 mm) long

6 6632584

  • 6632584 - RESISTOR

7 6705792

  • 6705792 - BOLT

8 6660656

  • 6660656 - DECAL
  • wiring schematic

9 6641066

  • 6641066 - SCREW

10 6641072

  • 6641072 - WASHER

11 6660868

  • 6660868 - DECAL
  • recirculation

12 6641065

  • 6641065 - NUT

13 25E10

  • 25E10 - WASHER FLAT PLAIN

14 6660873

  • 6660873 - BRACKET
  • door

15 6664808

  • 6664808 - DOOR
  • 10.5"(266
  • 7 mm) long

16 6660872

  • 6660872 - DOOR

17 6660869

  • 6660869 - KNOB

18 6648470

  • 6648470 - SCREW

19 6670140

  • 6670140 - CORE
  • 2.5" (63
  • 5 mm) thick

20 12E10

  • 12E10 - WASHER

21 6641062

  • 6641062 - SCREW

22 6660876

  • 6660876 - MOTOR
  • HEATER CAB

23 6660654

  • 6660654 - CONNECTOR

24 6660877

  • 6660877 - MOULDING

25 6660878

  • 6660878 - MOULDING

26 6660875

  • 6660875 - COVER

27 6664807

  • 6664807 - COVER
  • 18.4"(467
  • 4 mm) long - 1.40" (35
  • 6 mm) wide

28 6667567

  • 6667567 - COVER
  • 18.4"(467
  • 4 mm) long - 1.125" (28
  • 6 mm) wide

29 6641073

  • 6641073 - NUT

30 6667565

  • 6667565 - BLOWER
  • 1.50" (38
  • 1 mm) wide

31 6667566

  • 6667566 - HOUSING
  • blower - 1.95" (49
  • 5 mm) wide - for 6667183 heater

32 6660871

  • 6660871 - HOUSING
  • blower - 2.32" (58
  • 9 mm) wide - for 6667183 heater

33 6850027

  • 6850027 - COVER
  • blower - w/hole in rear - for 6669689 heater
