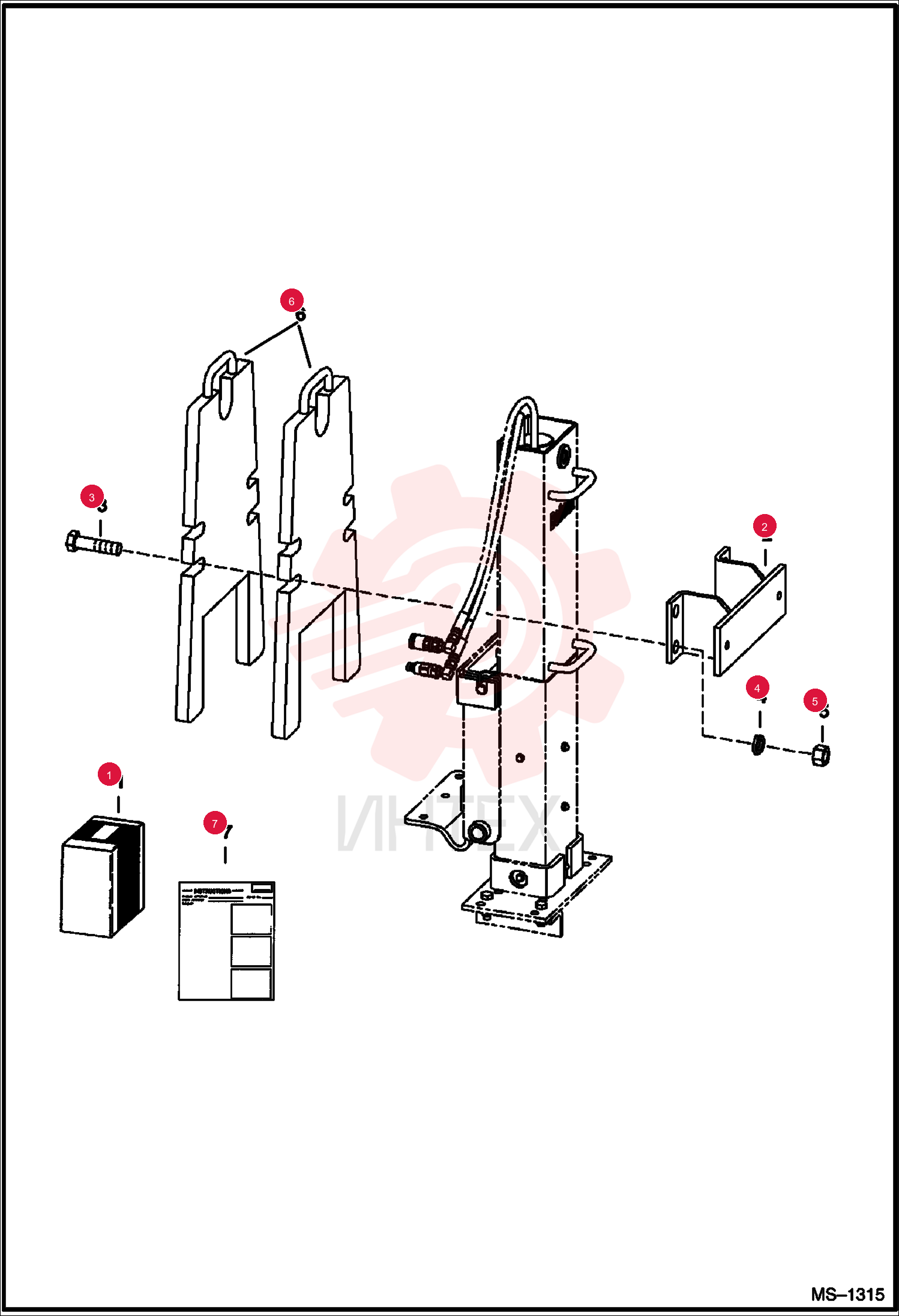

MOUNT 6811482

MOUNT 6811482

MOUNT 6811482

1 6811482

  • 6811482 - MOUNT

2 17C1464

  • 17C1464 - BOLT
  • Was 17C001456B

3 4E14

  • 4E14 - LOCKWSHR
  • lock

4 61D14

  • 61D14 - NUT

5 6811481

  • 6811481 - COUNTERWEIGHT
  • 73lbs

6 6987440

  • 6987440 - INSTRUCTIONS
  • - Was 6901505
