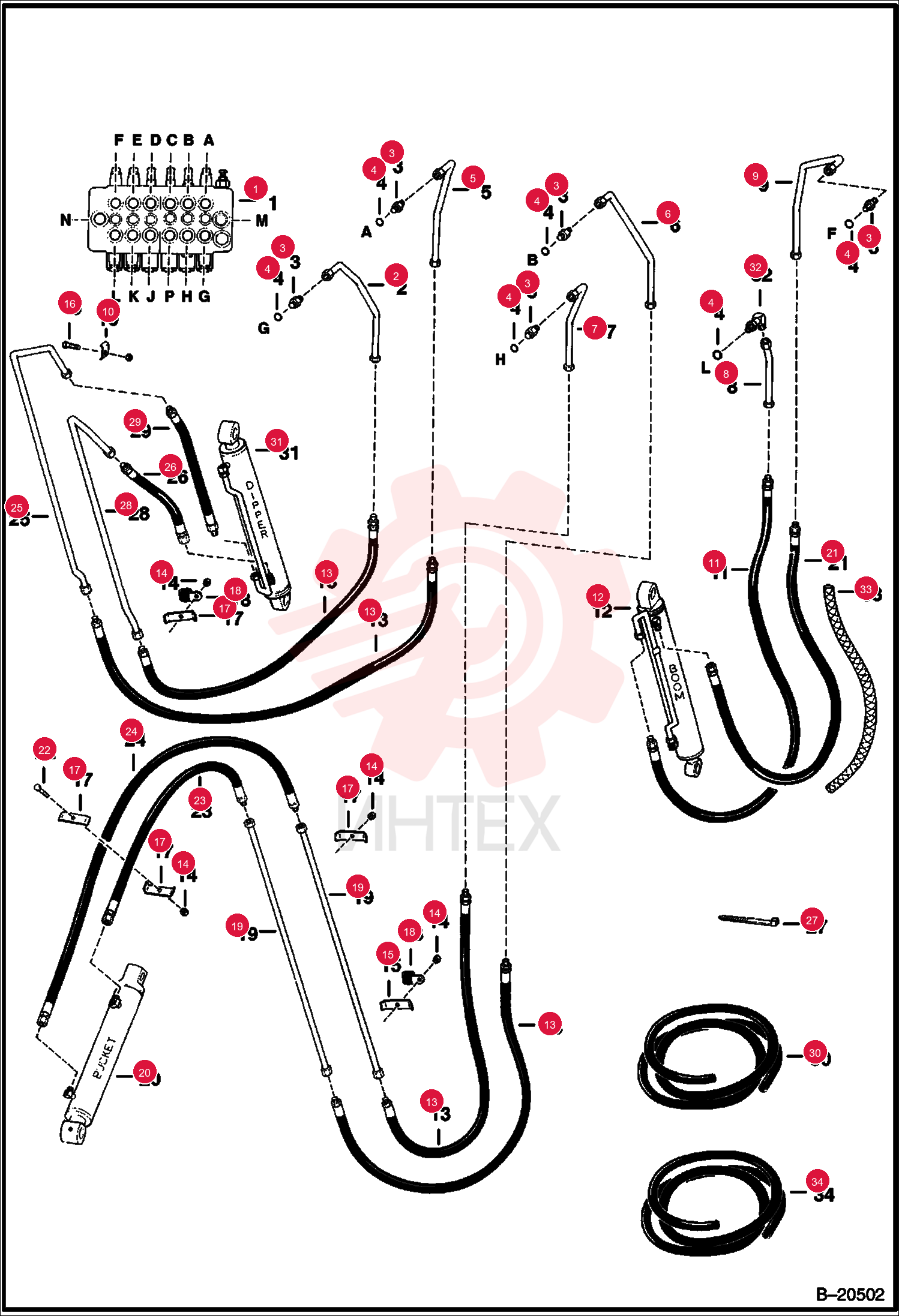

TUBE 6534675

TUBE 6534675

TUBE 6534675

1 6534675

  • 6534675 - TUBE

2 97K10

  • 97K10 - O-RING 10
  • for flare end

3 15KB1010

  • 15KB1010 - FITTING
  • HYD CONNECTOR
  • W/Ref. 4 - flat boss face

4 15K7

  • 15K7 - FITTING
  • W/Ref. 4 - flat boss face

5 99K10

  • 99K10 - O-RING
  • for tapered boss face

6 79K10

  • 79K10 - O RING 10
  • for flat boss face

7 6534676

  • 6534676 - TUBE

8 6534673

  • 6534673 - TUBE

9 6534674

  • 6534674 - TUBE

10 6534672

  • 6534672 - TUBE

11 6534671

  • 6534671 - TUBE

12 6562266

  • 6562266 - CLAMP TUBE

13 6534680

  • 6534680 - HOSE
  • 73.00" long - used with 7104735 boom cylinder

14 7131048

  • 7131048 - HOSE
  • 70.50" long - used with 7127686 boom cylinder

15 6539418

  • 6539418 - HOSE
  • Was 6534684

16 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

17 6537761

  • 6537761 - CLAMP

18 84G3728

  • 84G3728 - SCREW THD ROLLING TT

19 6502426

  • 6502426 - CLAMP

20 30H46

  • 30H46 - CLIP

21 6533294

  • 6533294 - TUBE

22 6534681

  • 6534681 - HOSE

23 84G3728

  • 84G3728 - SCREW THD ROLLING TT

24 17C632

  • 17C632 - BOLT 5

25 6587978

  • 6587978 - HOSE
  • Was 6533210

26 6534685

  • 6534685 - HOSE

27 6533292

  • 6533292 - TUBE

28 6704336

  • 6704336 - HOSE
  • Was 6539419

29 6610510

  • 6610510 - STRAP
  • TIE 10
  • Was 1715312B

30 6533293

  • 6533293 - TUBE

31 7131049

  • 7131049 - HOSE
  • 14.50" long - used with 7148530 & 7127706 dipper cylinders

32 6704335

  • 6704335 - HOSE
  • 16.7" long - used with 7104444 dipper cylinder

33 6539420

  • 6539420 - HOSE
  • 17.5" long - Was 6534679

34 6650108

  • 6650108 - SHIELD
  • bulk - sold per foot

35 97K10

  • 97K10 - O-RING 10
  • for flare end

36 17KB1010

  • 17KB1010 - FTG HYD ELBOW 90
  • W/Ref. 4 - flat boss face

37 17K7

  • 17K7 - ELBOW
  • W/Ref. 4 - flat boss face

38 6651436

  • 6651436 - HOSE CVR.
  • bulk - sold per foot
