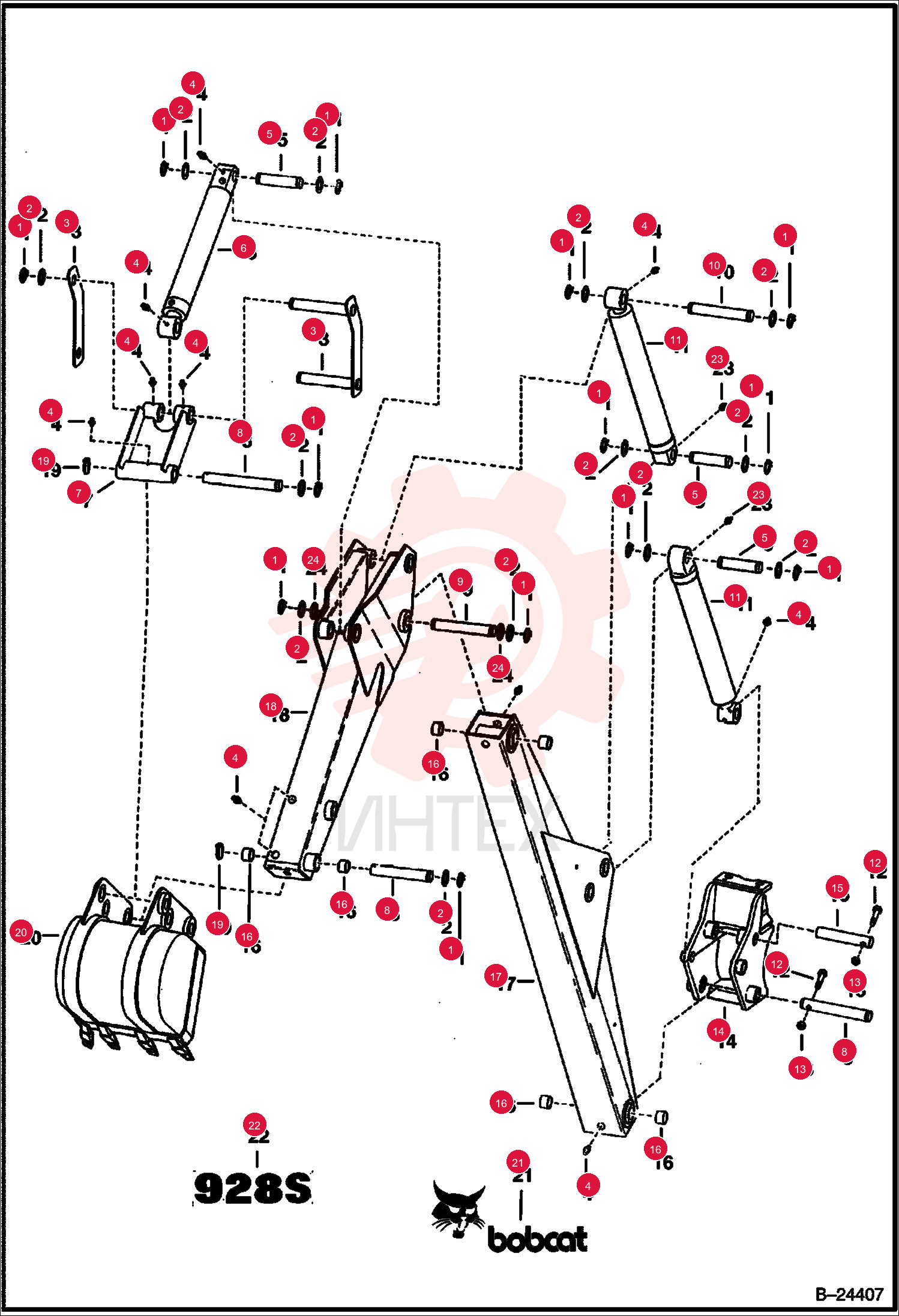

SNAP RG 5 6538285 (1)

SNAP RG 5 6538285 (1)

SNAP RG 5 6538285 (1)

1 6538285

  • 6538285 - SNAP RG 5
  • retainer - Was 1305943B

2 6584872

  • 6584872 - WASHER 5
  • 1/8'' thick

3 6560390

  • 6560390 - LINK
  • W/Pins

4 6560391

  • 6560391 - LINK

5 10H25

  • 10H25 - FTG GREASE STRAIGHT

6 6560350

  • 6560350 - PIN

7 6592874

  • 6592874 - LINK

8 6560401

  • 6560401 - PIN
  • PIVOT BUCKET

9 6560349

  • 6560349 - PIN

10 6560352

  • 6560352 - PIN

11 17C652

  • 17C652 - BOLT
  • Was 17C000636B

12 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

13 6560351

  • 6560351 - PIN

14 6560334

  • 6560334 - BUSHING

15 6560727

  • 6560727 - ASSY
  • BOOM

16 6560792

  • 6560792 - ARM DIPPER ASSEMBLY

17 6560382

  • 6560382 - PIN
  • LOCK

18 6808545

  • 6808545 - DECAL
  • Bobcat - R.H. - Was 6557412

19 6808546

  • 6808546 - DECAL
  • Bobcat - L.H. - Was 6557413

20 6532828

  • 6532828 - DECAL
  • 928S

21 12H15

  • 12H15 - FTG GREASE 90

22 6584873

  • 6584873 - WASHER
  • 1/16'' thick
