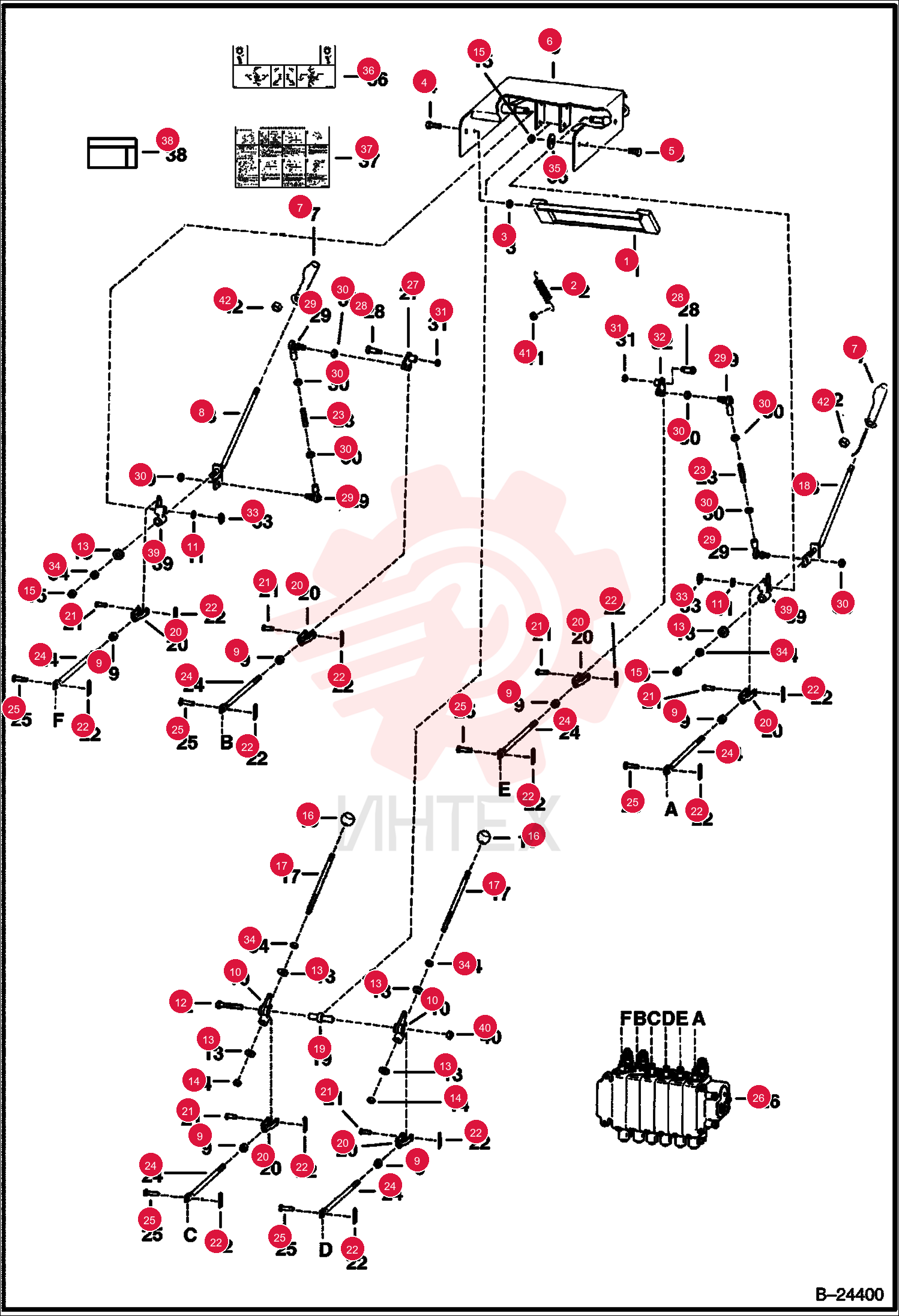

LOCK 6532607 (4)

LOCK 6532607 (4)

LOCK 6532607 (4)

1 6532607

  • 6532607 - LOCK

2 6610077

  • 6610077 - SPRING

3 7D6

  • 7D6 - NUT

4 17C620

  • 17C620 - BOLT

5 17C812

  • 17C812 - BOLT

6 6807273

  • 6807273 - MOUNT

7 6675364

  • 6675364 - HANDLE ASSEMBLY
  • W/switch

8 8D6

  • 8D6 - NUT HEX JAM

9 6586081

  • 6586081 - CONNECTOR

10 25E16

  • 25E16 - WASHER FLAT PLAIN

11 17C556

  • 17C556 - BOLT

12 25E21

  • 25E21 - WASHER FLAT PLAIN

13 61D8

  • 61D8 - NUT 5

14 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

15 6515888

  • 6515888 - KNOB

16 6532153

  • 6532153 - ROD

17 6806874

  • 6806874 - LEVER
  • L.H.

18 6532160

  • 6532160 - SHAFT

19 227395

  • 227395 - PIN
  • CLEVIS

20 1F208

  • 1F208 - PIN

21 6532193

  • 6532193 - ROD

22 6534486

  • 6534486 - ROD

23 6659298

  • 6659298 - PIN

24 38C816

  • 38C816 - BOLT

25 6651231

  • 6651231 - ROD END

26 62D5

  • 62D5 - NUT

27 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

28 6587704

  • 6587704 - BELLCRANK
  • R.H.

29 1315207

  • 1315207 - RING RETAINING

30 7D8

  • 7D8 - NUT 5

31 6700170

  • 6700170 - WASHER
  • Plastic

32 6808259

  • 6808259 - DECAL
  • CONTROL
  • Controls

33 6538568

  • 6538568 - DECAL
  • Mounting - for ball mount

34 6538572

  • 6538572 - DECAL

35 61D5

  • 61D5 - NUT HEX FINISHED GR5

36 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

37 5DM14

  • 5DM14 - NUT
  • LOCK
