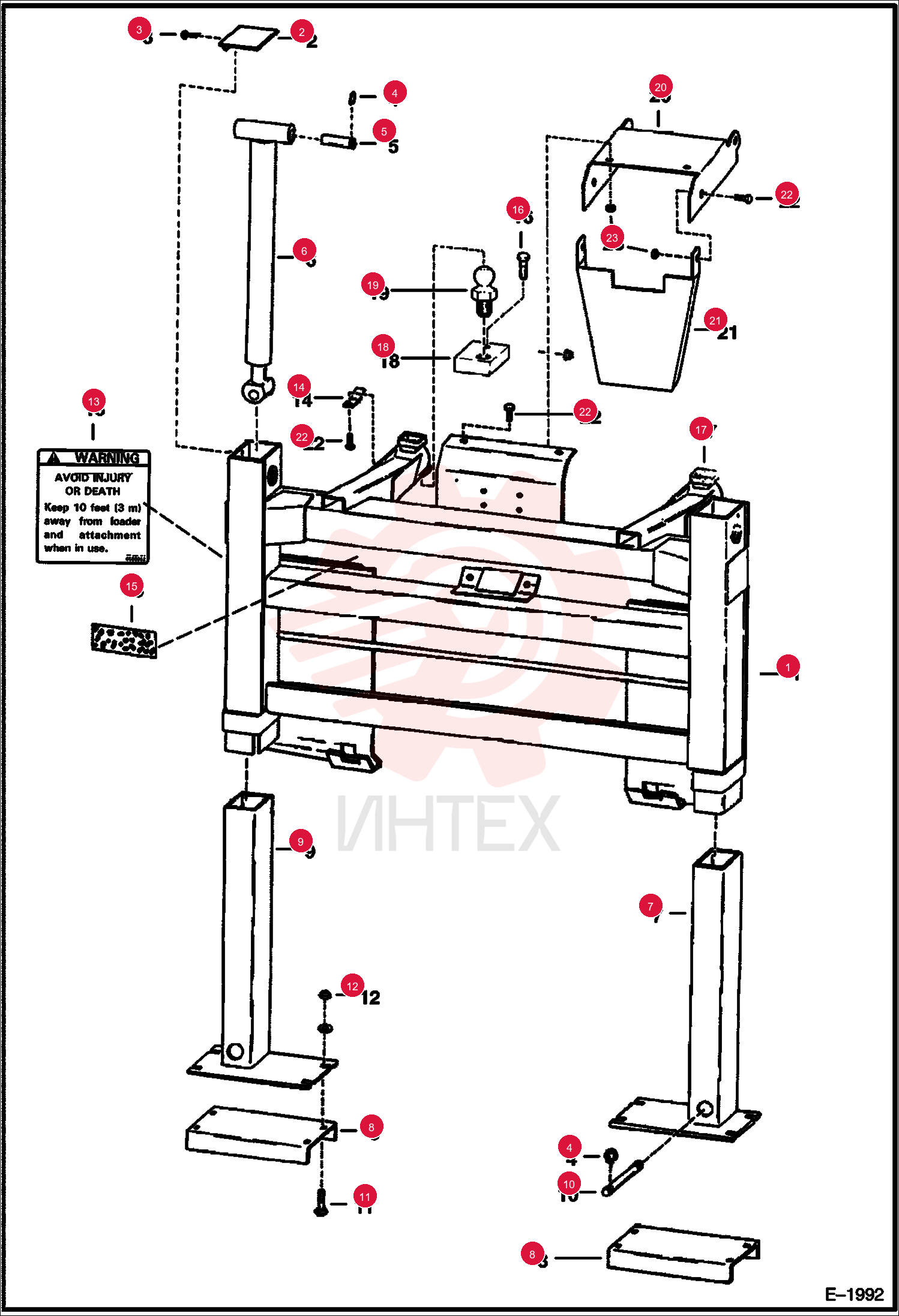

MAIN FRAME 6533322

MAIN FRAME 6533322

MAIN FRAME 6533322

1 6533322

  • 6533322 - MAIN FRAME

2 84G3712

  • 84G3712 - SCREW THD ROLLING TT

3 23J16

  • 23J16 - SNAP RING
  • Was 662770B

4 6560668

  • 6560668 - PIN

5 6533154

  • 6533154 - STABILIZER
  • L.H.

6 6531990

  • 6531990 - CLEAT

7 6533156

  • 6533156 - STABILIZER
  • R.H.

8 6560669

  • 6560669 - PIN

9 37C820

  • 37C820 - BOLT SQ NECK RND HD
  • Was 6560578

10 55D8

  • 55D8 - NUT

11 6583862

  • 6583862 - DECAL
  • WARNING
  • stabilizers - Was 6562922

12 6562596

  • 6562596 - GUIDE

13 6553976

  • 6553976 - TREAD
  • SAFETY
  • 127 x 203 mm (5 x 8")

14 31C1028

  • 31C1028 - BOLT 5

15 6538986

  • 6538986 - BLOCK

16 6562203

  • 6562203 - HITCH

17 6532785

  • 6532785 - CHANNEL

18 6533086

  • 6533086 - CHANNEL

19 17C816

  • 17C816 - BOLT

20 85D8

  • 85D8 - NUT PRETRQ HEX LOCK
