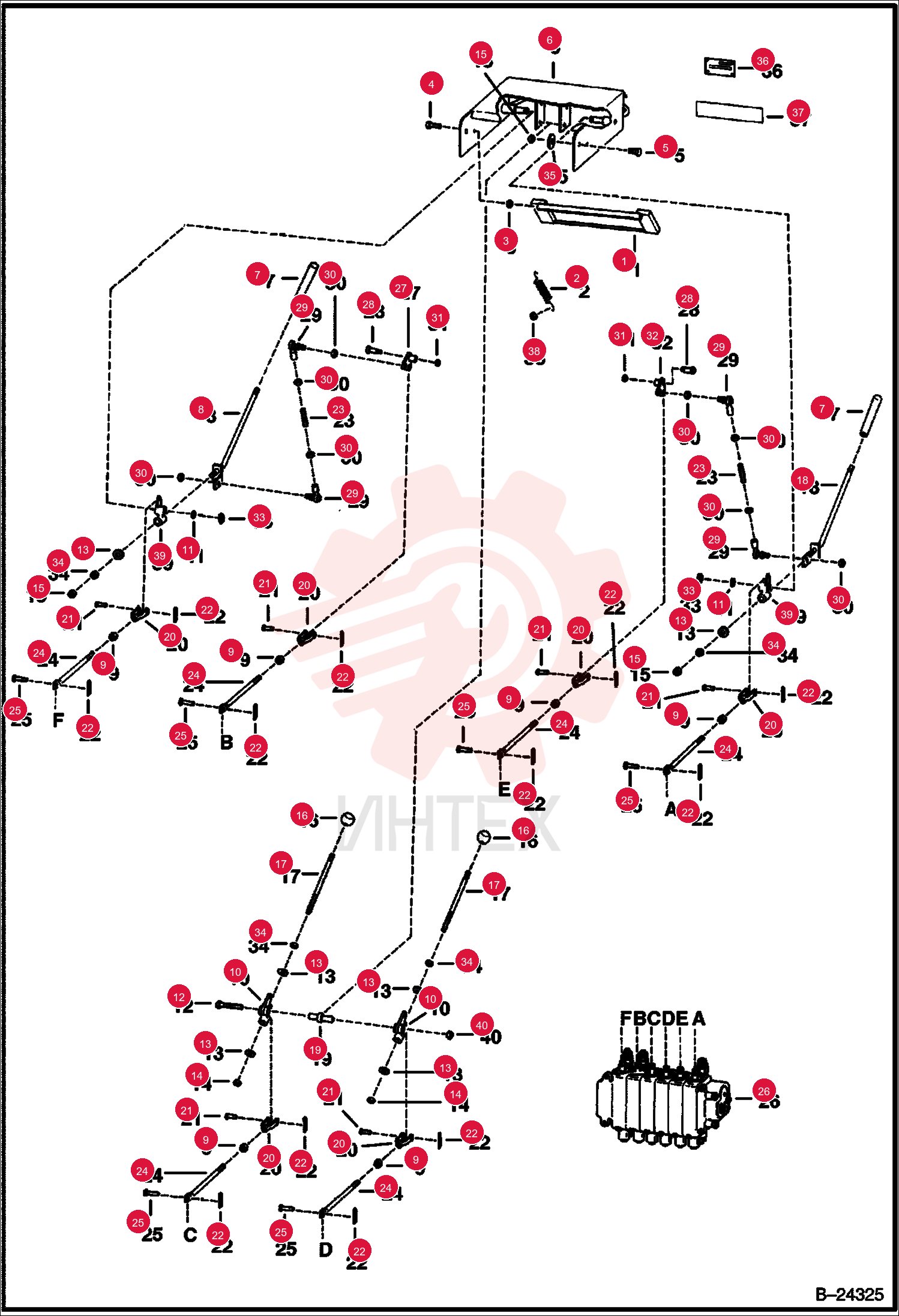

LOCK 6532607 (3)

LOCK 6532607 (3)

LOCK 6532607 (3)

1 6532607

  • 6532607 - LOCK

2 6610077

  • 6610077 - SPRING

3 7D6

  • 7D6 - NUT

4 17C620

  • 17C620 - BOLT

5 17C812

  • 17C812 - BOLT

6 6587708

  • 6587708 - MOUNT

7 6510093

  • 6510093 - KNOB

8 6532154

  • 6532154 - LEVER
  • R.H.

9 8D6

  • 8D6 - NUT HEX JAM

10 6586081

  • 6586081 - CONNECTOR

11 25E16

  • 25E16 - WASHER FLAT PLAIN

12 17C556

  • 17C556 - BOLT

13 25E21

  • 25E21 - WASHER FLAT PLAIN

14 61D8

  • 61D8 - NUT 5

15 85D8

  • 85D8 - NUT PRETRQ HEX LOCK
  • NUT

16 6515888

  • 6515888 - KNOB

17 6532153

  • 6532153 - ROD

18 6532158

  • 6532158 - LEVER
  • L.H.

19 6532160

  • 6532160 - SHAFT

20 227395

  • 227395 - PIN
  • CLEVIS

21 1F208

  • 1F208 - PIN

22 6532193

  • 6532193 - ROD

23 6532192

  • 6532192 - LINK

24 6659298

  • 6659298 - PIN

25 622102

  • 622102 - BOLT

26 38C816

  • 38C816 - BOLT

27 6651231

  • 6651231 - ROD END

28 62D5

  • 62D5 - NUT

29 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

30 85D5

  • 85D5 - NUT PRETRQ HEX LOCK

31 6587704

  • 6587704 - BELLCRANK
  • R.H. - 1/2" ID (12
  • 7mm)

32 1315207

  • 1315207 - RING RETAINING

33 7D8

  • 7D8 - NUT 5

34 6700170

  • 6700170 - WASHER
  • Plastic

35 6532697

  • 6532697 - DECAL
  • Controls

36 6538568

  • 6538568 - DECAL
  • Mounting

37 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

38 61D5

  • 61D5 - NUT HEX FINISHED GR5
