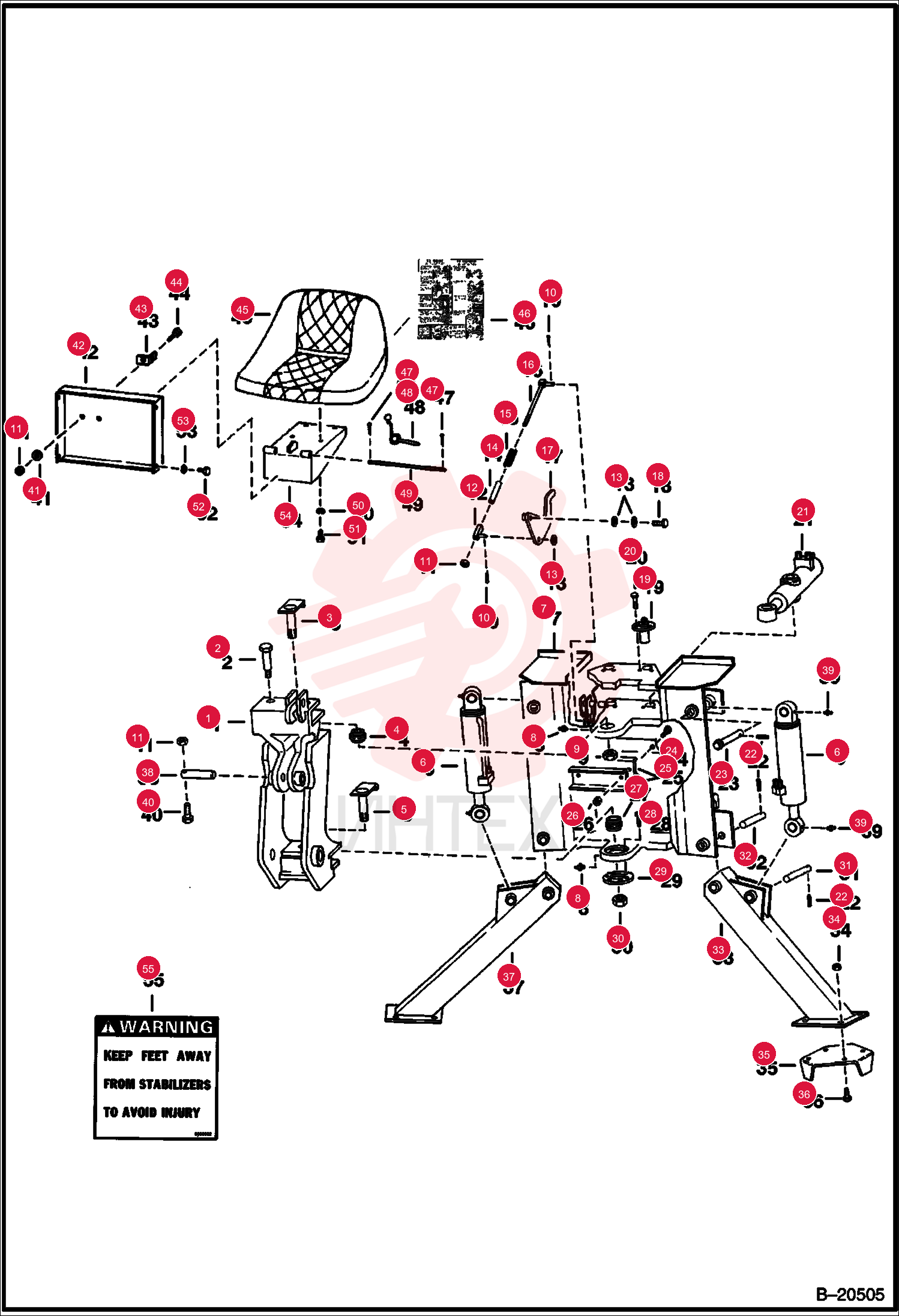

FRAME 6544789
1 6544789
- 6544789 - FRAME
- swing
2 6590603
- 6590603 - PIN
3 6544590
- 6544590 - PIN ASSY
4 6519336
- 6519336 - BEARING
5 6544594
- 6544594 - PIN
6 6553532
- 6553532 - MAIN FRAME
7 36H35
- 36H35 - FITTING
8 6544593
- 6544593 - NUT
9 1F416
- 1F416 - PIN
10 81D6
- 81D6 - NUT
11 6544782
- 6544782 - PIVOT ASSEMBLY
12 25E18
- 25E18 - WASHER FLAT PLAIN
13 6553503
- 6553503 - TUBE
14 6553500
- 6553500 - SPRING
15 6591134
- 6591134 - ROD
16 228686
- 228686 - WASHER
17 6553514
- 6553514 - ARM ASSEMBLY
- R.H.
18 6553515
- 6553515 - ARM ASSEMBLY
- L.H.
19 17C608
- 17C608 - BOLT
20 6544598
- 6544598 - PIN ASSY
- swing cylinder
21 17C816
- 17C816 - BOLT
22 106023
- 106023 - PIN
23 6544607
- 6544607 - PIN
24 17C832
- 17C832 - BOLT
25 6590855
- 6590855 - CHANNEL
26 81D8
- 81D8 - NUT
27 6519337
- 6519337 - BEARING ASSEMBLY
28 73G624
- 73G624 - BOLT
- cap - Was 11G-624
29 6544842
- 6544842 - RETAINER
30 6544597
- 6544597 - NUT
31 6546387
- 6546387 - PIN
32 6544611
- 6544611 - PIN
33 6546391
- 6546391 - STABILIZER
- L.H.
34 61D6
- 61D6 - NUT HEX FINISHED GR5
35 6548585
- 6548585 - CLEANER
- AIR
36 7C820
- 7C820 - BOLT
37 6546392
- 6546392 - STABILIZER
- R.H.
38 6544604
- 6544604 - PIN
39 36H25
- 36H25 - FITTING
40 17C640
- 17C640 - BOLT
41 25E17
- 25E17 - WASHER FLAT PLAIN
42 6544810
- 6544810 - SEAT SUPP
- seat
43 6590669
- 6590669 - BRACKET
44 17C614
- 17C614 - BOLT
45 6500774
- 6500774 - SEAT
- Also Order Ref. 46 (6555540 decal)
46 6660148
- 6660148 - SLIDE LWR
47 6555540
- 6555540 - DECAL
- mounting instructions
48 1F316
- 1F316 - PIN
49 6511880
- 6511880 - PIN
50 6547294
- 6547294 - ROD
51 4E5
- 4E5 - WASHER
52 17C512
- 17C512 - BOLT 5
53 17C612
- 17C612 - SCREW HEX CAP
54 4E6
- 4E6 - WASHER
55 6544812
- 6544812 - BRACKET ASSEMBLY
56 6583862
- 6583862 - DECAL
- WARNING
- Was 6562922
