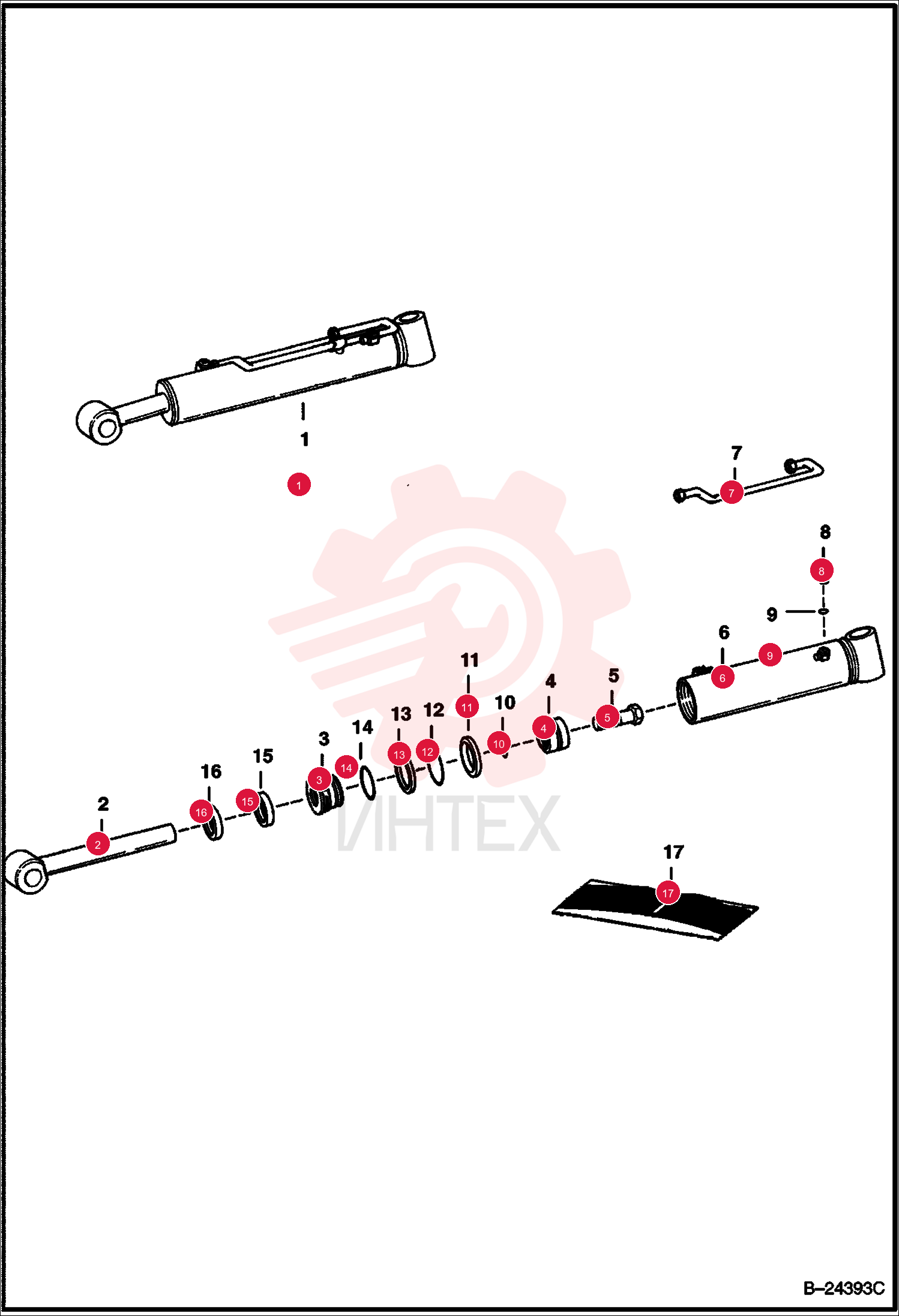

ROD 6533381 (1)

ROD 6533381 (1)

ROD 6533381 (1)

1 6533381

  • 6533381 - ROD

2 6595035

  • 6595035 - HEAD
  • Was 6533393

3 6533383

  • 6533383 - PISTON

4 6536391

  • 6536391 - BOLT

5 6589751

  • 6589751 - CASE
  • Was 6534621

6 47K5

  • 47K5 - PLUG
  • W/Ref. 9

7 6816855

  • 6816855 - PLUG
  • W/Ref. 9 - hex flat boss face

8 79K6

  • 79K6 - O RING 10

9 25K30300

  • 25K30300 - O RING 10
  • Was NSS

10 1530265

  • 1530265 - SEAL
  • PISTON
  • Was NSS

11 54K60304

  • 54K60304 - O-RING
  • Was 58K338

12 73K338

  • 73K338 - RING
  • Was NSS

13 58K238

  • 58K238 - O-RING

14 6538141

  • 6538141 - SEAL ROD
  • Was NSS

15 6690707

  • 6690707 - WIPER
  • ROD CYL
  • Was 6665086

16 6589791

  • 6589791 - SEAL KIT
  • W/Ref. 10-16 - Was 6661058
