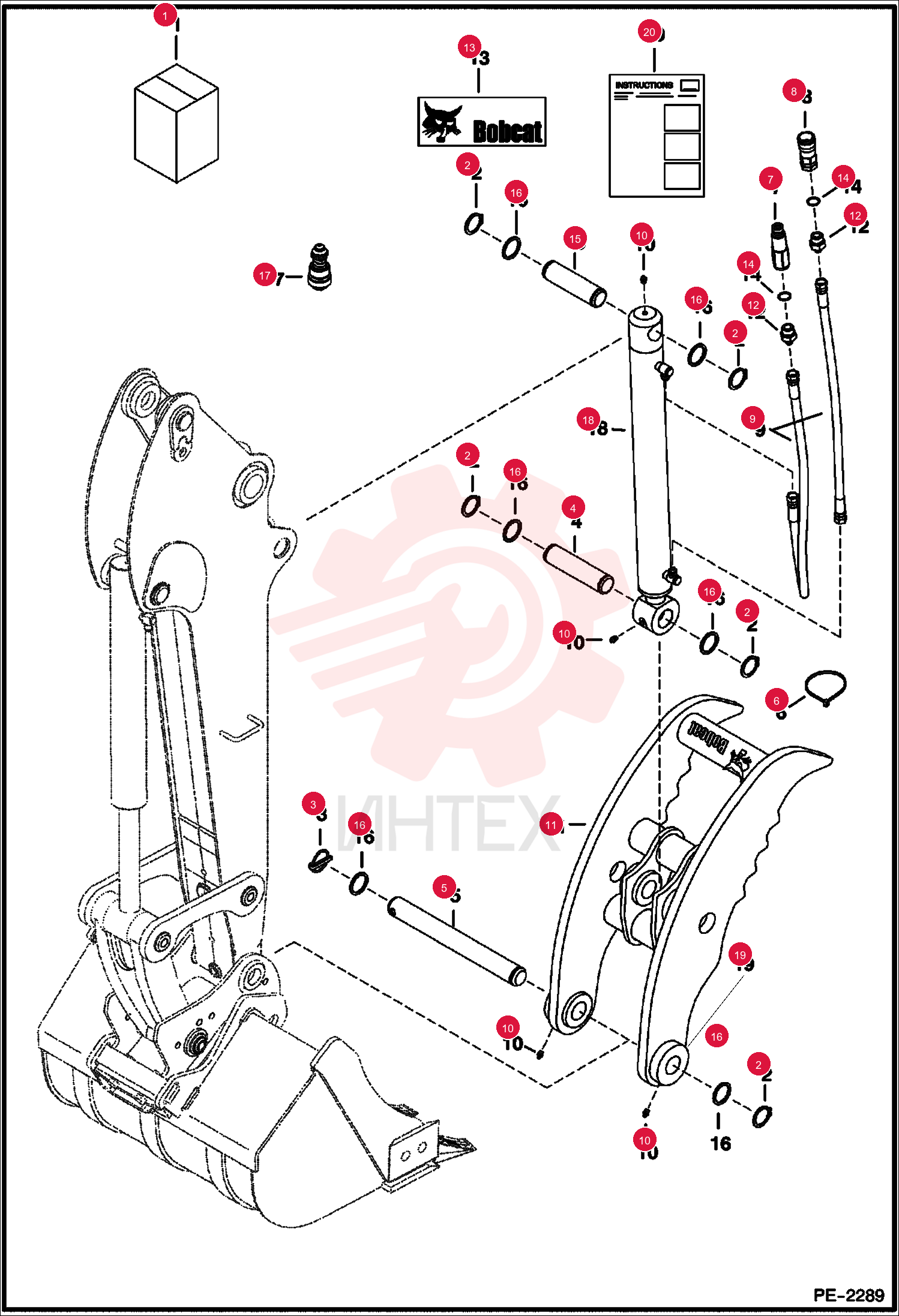

RING, RETAINER 6534154
1 6534154
- 6534154 - RING
- RETAINER
2 6560382
- 6560382 - PIN
- LOCK
3 6595660
- 6595660 - PIN
- Use at both ends of cylinder
4 6713824
- 6713824 - PIN
- PIVOT CLAMP
5 7104318
- 7104318 - PIN
- PIVOT CLAMP
- clamp
6 6624289
- 6624289 - STRAP
- TIE
7 7246777EF
- 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE
8 7246777
- 7246777 - COUPLER
- FF MALE
- - straight - Was 6674688
9 7246790EF
- 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD
10 7246790
- 7246790 - COUPLER FF FEM 1/2
- - straight - Was 6672960
11 6711670
- 6711670 - HOSE
- 46" (1168
- 4 mm) long - required for 331 excavator
12 6714274
- 6714274 - HOSE
- 37" (939
- 8 mm) long - required for 325 excavator
13 10H25
- 10H25 - FTG GREASE STRAIGHT
14 7104317
- 7104317 - CLAMP
15 6713831
- 6713831 - CLAMP
16 15KB0612
- 15KB0612 - FITTING
- HYD CONNECTOR
- W/Ref. 14
17 7109473
- 7109473 - DECAL
- LOGO BOBCAT AND HEAD
- Was 6727324
18 79K12
- 79K12 - O RING 10
19 6806894
- 6806894 - PIN
20 6534111
- 6534111 - WASHER
- 5
21 6680065
- 6680065 - ASSY
- VALVE
22 6713827
- 6713827 - BUSHING
- for Ref. 11 (6713831 clamp)
23 7104315
- 7104315 - BUSHING
- WELD-ON
- for Ref. 11 (7104317 clamp)
24 6900367
- 6900367 - INSTRUCTIONS
