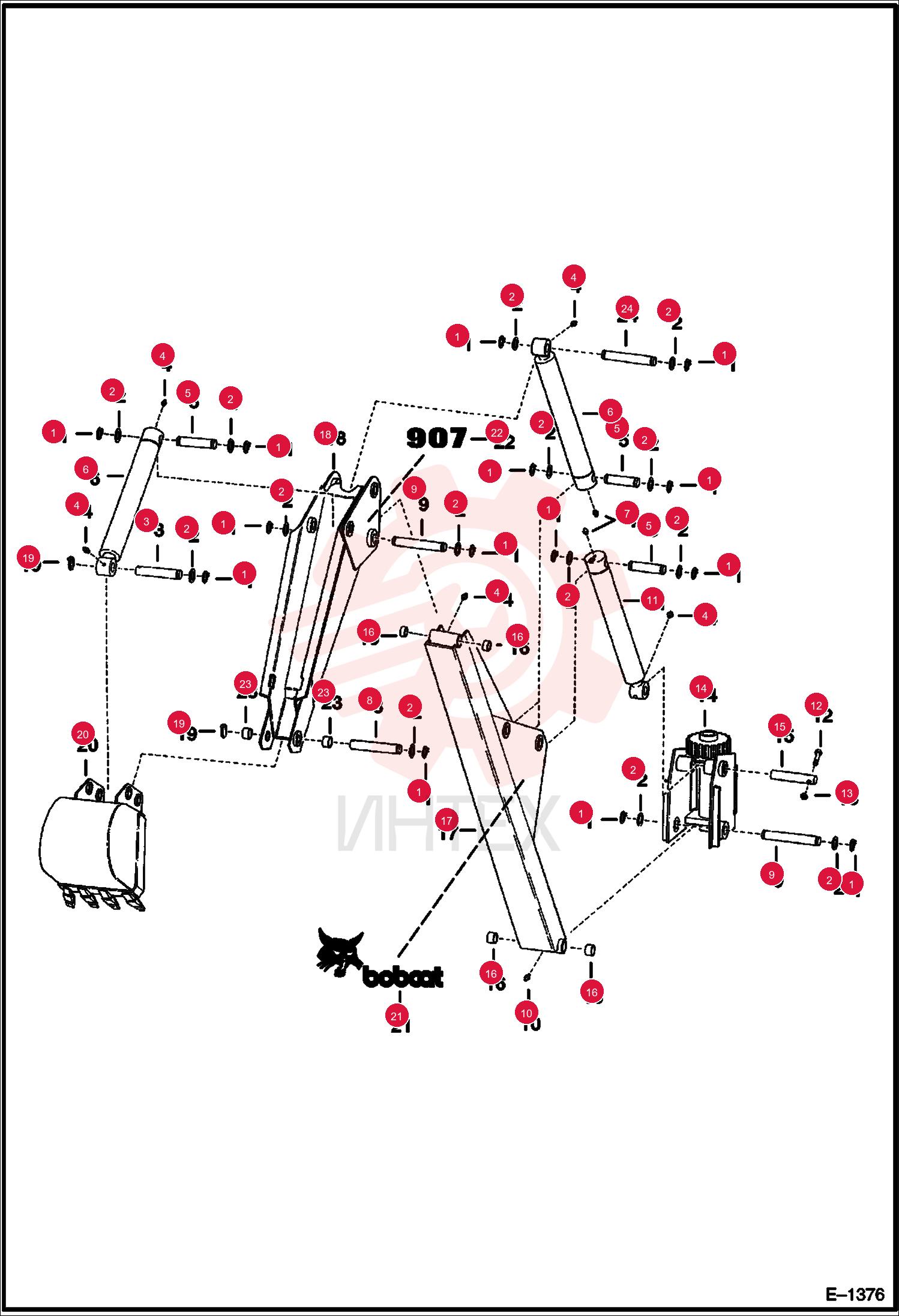

RING 6531366 (2)

RING 6531366 (2)

RING 6531366 (2)

1 6531366

  • 6531366 - RING
  • retainer - Was 1321168B

2 6531365

  • 6531365 - WASHER
  • .125" (3
  • 18mm) thick - Was 742053B

3 6561846

  • 6561846 - PIN

4 10H25

  • 10H25 - FTG GREASE STRAIGHT

5 6561850

  • 6561850 - PIN

6 6591927

  • 6591927 - CYLINDER

7 11H15

  • 11H15 - FTG GREASE STRAIGHT

8 6561845

  • 6561845 - PIN

9 6561848

  • 6561848 - PIN

10 12H15

  • 12H15 - FTG GREASE 90

11 6592180

  • 6592180 - CYLINDER

12 17C644

  • 17C644 - BOLT

13 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

14 6561847

  • 6561847 - PIN

15 6561911

  • 6561911 - BUSHING

16 6561896

  • 6561896 - BOOM
  • W/Ref. 16

17 6561869

  • 6561869 - ARM DIPPER ASSEMBLY
  • W/Ref. 23

18 6560382

  • 6560382 - PIN
  • LOCK

19 6560986

  • 6560986 - DECAL
  • LOGO BOBCAT AND HEAD
  • LH

20 6560987

  • 6560987 - DECAL
  • bobcat - R.H.

21 6593412

  • 6593412 - DECAL

22 6541143

  • 6541143 - BUSHING

23 6561849

  • 6561849 - PIN
