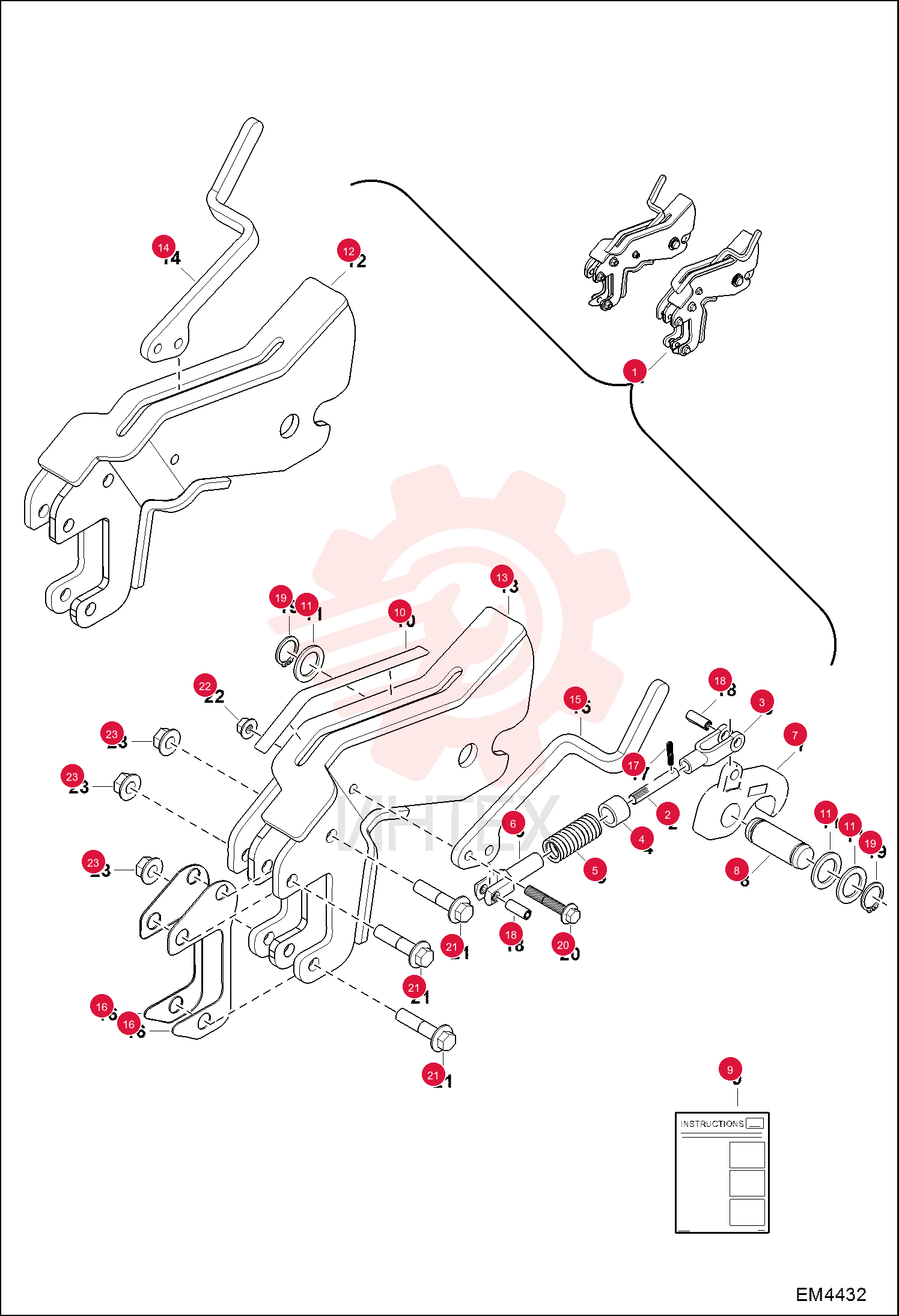

ROD 6533158 (2)

ROD 6533158 (2)

ROD 6533158 (2)

1 6533158

  • 6533158 - ROD

2 6533159

  • 6533159 - CLEVIS

3 6533160

  • 6533160 - BUSHING

4 6578253

  • 6578253 - SPRING
  • COMPRESSION

5 6704248

  • 6704248 - PIVOT
  • WEDGE

6 6816819

  • 6816819 - LATCH

7 6967959

  • 6967959 - Pin Pivot

8 6989504

  • 6989504 - INSTRUCTIONS
  • INSTALL

9 7127428

  • 7127428 - Decal MTG Arm

10 7136273

  • 7136273 - WASHER

11 7164268

  • 7164268 - MOUNT
  • ARM RH W/A

12 7164270

  • 7164270 - MOUNT
  • ARM LH W/A

13 7164367

  • 7164367 - HANDLE
  • ARM RH

14 7164368

  • 7164368 - HANDLE
  • ARM LH

15 7168299

  • 7168299 - SHIM

16 14J2520

  • 14J2520 - PIN

17 14J5020

  • 14J5020 - PIN
  • ROLL

18 22J20

  • 22J20 - SNAP RING

19 30CM1270

  • 30CM1270 - Screw Hex HD W/F10.9

20 30CM1670

  • 30CM1670 - Screw Hex HD W/F10.9

21 51DM12

  • 51DM12 - NUT

22 51DM16

  • 51DM16 - NUT HEX FLNG 10 W/T
