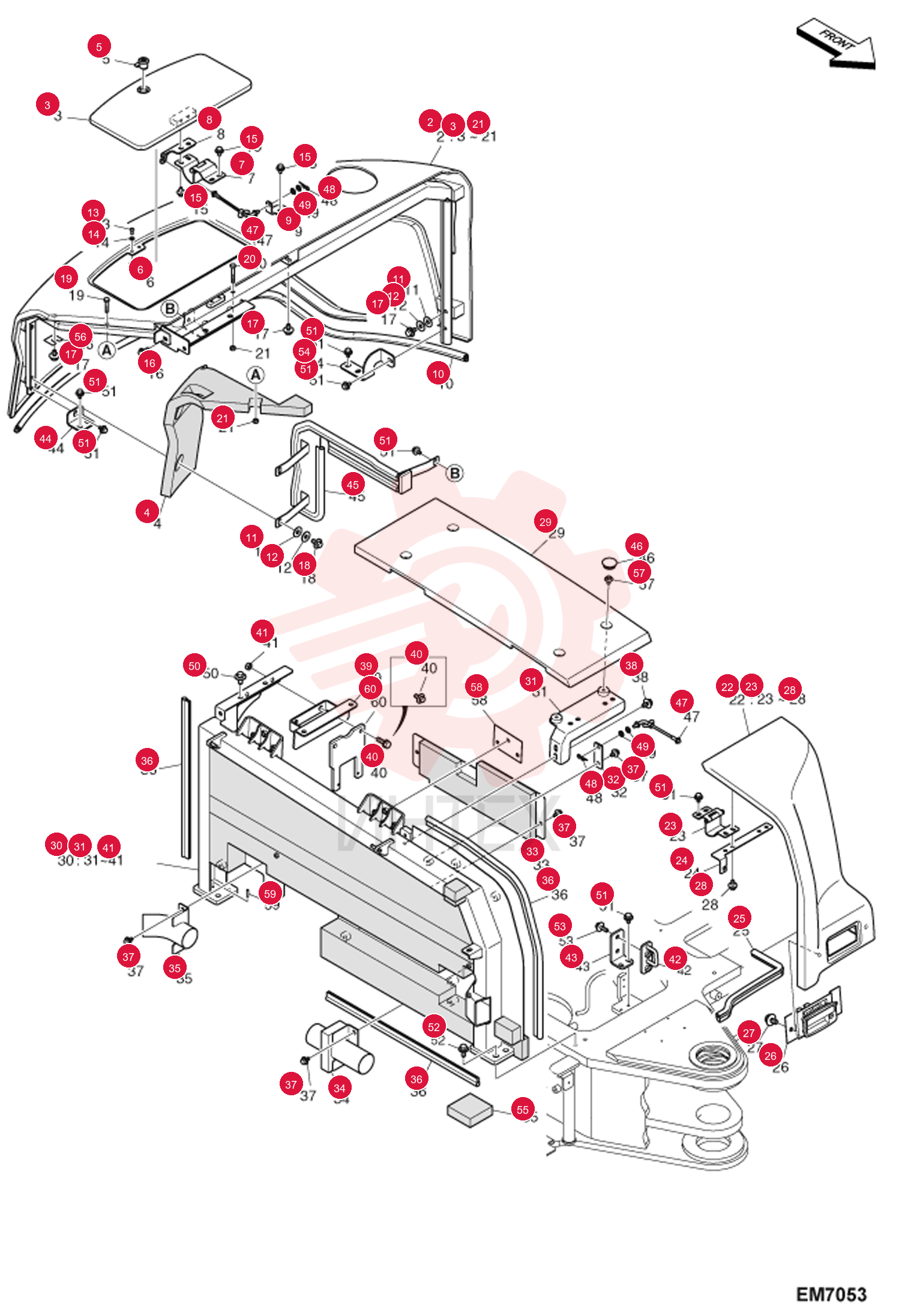

COVER ASSEMBLY 7017393

COVER ASSEMBLY 7017393

COVER ASSEMBLY 7017393

1 7017393

  • 7017393 - COVER ASSEMBLY
  • W/Ref. 3-21

2 7008243

  • 7008243 - COVER
  • ROOF

3 7017394

  • 7017394 - SEAL

4 7006690

  • 7006690 - KEY LOCK

5 7006689

  • 7006689 - PLATE

6 7008255

  • 7008255 - HINGE

7 7017395

  • 7017395 - PLATE

8 7017396

  • 7017396 - PLATE

9 7006681

  • 7006681 - SEAL
  • EXTRUSION

10 7005597

  • 7005597 - SHIM

11 7005598

  • 7005598 - SHIM

12 7007786

  • 7007786 - BOLT

13 7007833

  • 7007833 - WASHER
  • SPRING

14 7005129

  • 7005129 - BOLT SET

15 7005128

  • 7005128 - BOLT SET

16 7005136

  • 7005136 - BOLT SET

17 7024745

  • 7024745 - BOLT

18 7005121

  • 7005121 - BOLT SET

19 7017397

  • 7017397 - BOLT

20 7007660

  • 7007660 - BOLT

21 7007796

  • 7007796 - NUT

22 7008241

  • 7008241 - COVER
  • BATTERY ASSY

23 7006644

  • 7006644 - HINGE

24 7008248

  • 7008248 - PLATE

25 7008253

  • 7008253 - STRIP
  • WEATHER

26 7012749

  • 7012749 - CATCH
  • Was 7005859

27 7005136

  • 7005136 - BOLT SET

28 7005129

  • 7005129 - BOLT SET

29 7017398

  • 7017398 - COVER
  • SIDE

30 7024746

  • 7024746 - SIDE
  • W/Ref. 31-41 & 60

31 7280945

  • 7280945 - FRAME

32 7017400

  • 7017400 - BRACKET

33 7006685

  • 7006685 - PLATE

34 7006678

  • 7006678 - BRACKET

35 7017401

  • 7017401 - BRACKET

36 7006678

  • 7006678 - BRACKET

37 7017402

  • 7017402 - STRIP
  • WEATHER

38 7005129

  • 7005129 - BOLT SET

39 7005136

  • 7005136 - BOLT SET

40 7017403

  • 7017403 - BRACKET

41 7005121

  • 7005121 - BOLT SET

42 7024745

  • 7024745 - BOLT

43 7007798

  • 7007798 - NUT M10X1.5

44 7006646

  • 7006646 - STRIKER

45 7006668

  • 7006668 - PLATE

46 7008247

  • 7008247 - PLATE

47 7017404

  • 7017404 - BAFFLE

48 7017405

  • 7017405 - PLUG

49 7006662

  • 7006662 - STRAP

50 7004569

  • 7004569 - PIN

51 7007816

  • 7007816 - WASHER

52 7005120

  • 7005120 - BOLT SET

53 7005129

  • 7005129 - BOLT SET

54 7005124

  • 7005124 - BOLT SET

55 7005132

  • 7005132 - BOLT SET

56 7006762

  • 7006762 - PLATE

57 7015409

  • 7015409 - SPONGE

58 7015416

  • 7015416 - SHIM

59 7012228

  • 7012228 - BOLT
  • FLANGE

60 7017406

  • 7017406 - SHIM

61 7017407

  • 7017407 - PIN
  • KNOCK

62 7024744

  • 7024744 - BRACKET
