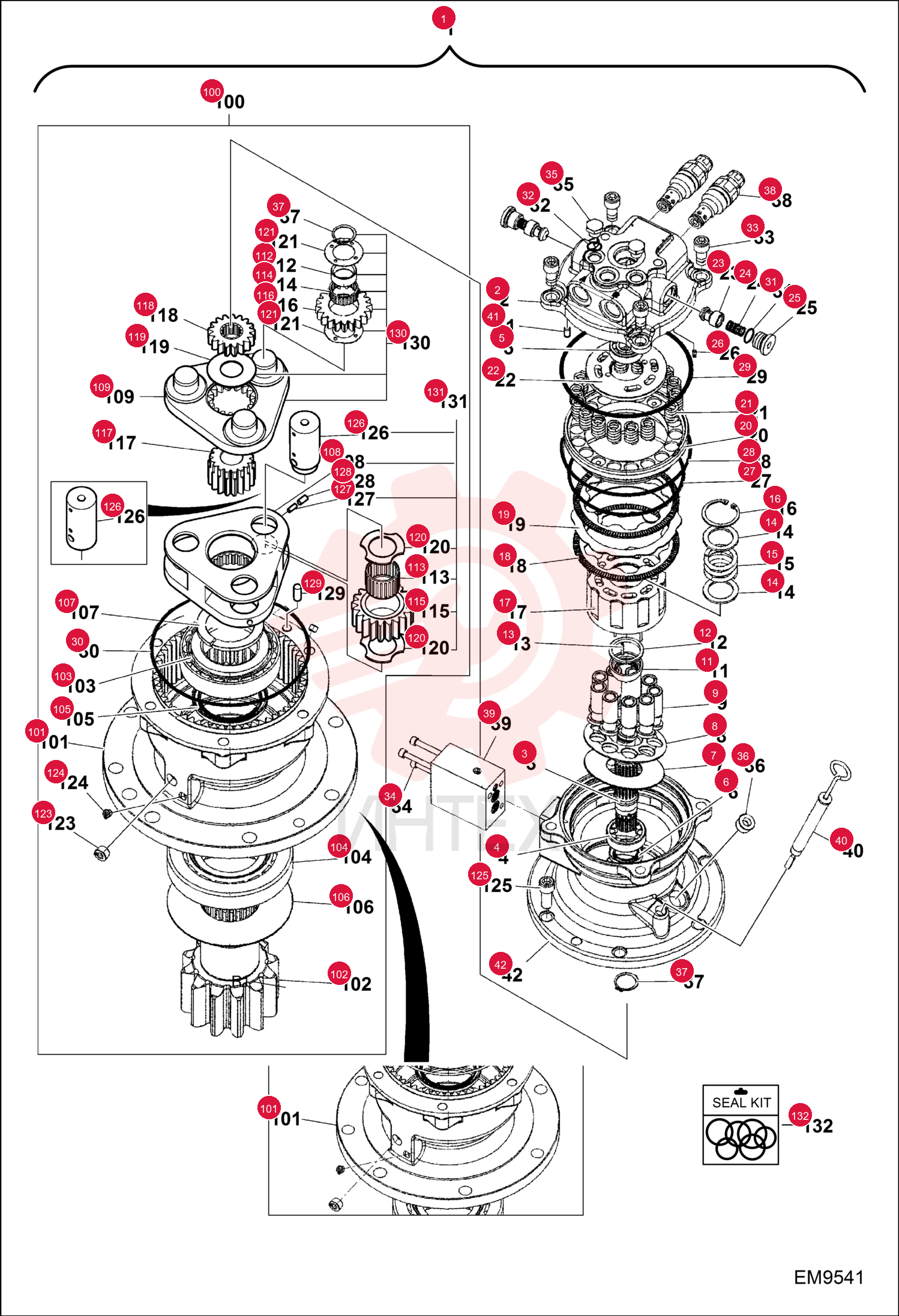

MOTOR, SLEW 7277979

MOTOR, SLEW 7277979

MOTOR, SLEW 7277979

1 7277979

  • 7277979 - MOTOR
  • SLEW

2 7277010

  • 7277010 - HOUSING
  • VALVE

3 7007392

  • 7007392 - SHAFT DRIVE

4 7007234

  • 7007234 - BEARING ROLLER

5 7007403

  • 7007403 - BEARING BALL

6 7007404

  • 7007404 - SEAL OIL

7 7024786

  • 7024786 - PLATE
  • SHOE

8 7007387

  • 7007387 - PLATE RETAINER

9 7007410

  • 7007410 - PISTON ASSEMBLY

10 7007388

  • 7007388 - BALL THRUST

11 7007054

  • 7007054 - WASHER

12 7007389

  • 7007389 - ROLLER

13 7004015

  • 7004015 - WASHER

14 7007390

  • 7007390 - SPRING

15 7007884

  • 7007884 - RING SNAP

16 7007411

  • 7007411 - BLOCK CYLINDER

17 7003820

  • 7003820 - PLATE FRICTION

18 7003821

  • 7003821 - PLATE MATING

19 7007393

  • 7007393 - PISTON BRAKE

20 7007391

  • 7007391 - SPRING BRAKE

21 7029305

  • 7029305 - PLATE
  • VALVE
  • Was 7024787

22 7277011

  • 7277011 - PLUNGER

23 7007218

  • 7007218 - ROLLER PLUNGER

24 7007219

  • 7007219 - SPRING CHECK

25 7007199

  • 7007199 - PLUG

26 7007848

  • 7007848 - PIN PARALLEL

27 7004658

  • 7004658 - O-RING

28 7004659

  • 7004659 - O-RING

29 7004660

  • 7004660 - O-RING

30 7004661

  • 7004661 - O-RING

31 7284557

  • 7284557 - O-RING
  • Was 7007911

32 7283267

  • 7283267 - O-RING
  • Was 7007906

33 7007757

  • 7007757 - BOLT SOCKET

34 7007731

  • 7007731 - BOLT SOCKET

35 7004732

  • 7004732 - PLUG

36 7004675

  • 7004675 - PLUG

37 7007873

  • 7007873 - RING SNAP

38 7024789

  • 7024789 - VALVE
  • RELIEF

39 7029472

  • 7029472 - VALVE
  • BRAKE
  • Was 7024788

40 7277014

  • 7277014 - GAUGE
  • OIL

41 7007409

  • 7007409 - GAUGE OIL LEVEL

42 7024790

  • 7024790 - PIN
  • PARALLEL

43 7276972

  • 7276972 - KIT GEAR AND SHAFT
  • Ref. 101-131

44 7024791

  • 7024791 - SHAFT

45 7007451

  • 7007451 - BEARING TAPER ROLLER

46 7007405

  • 7007405 - BEARING TAPER ROLLER

47 7007406

  • 7007406 - SEAL OIL

48 7007396

  • 7007396 - COVER BEARING

49 7007203

  • 7007203 - COLLAR HALF

50 7028872

  • 7028872 - CARRIER
  • PINION

51 7024793

  • 7024793 - CARRIER

52 7028871

  • 7028871 - CARRIER
  • PINION

53 7024792

  • 7024792 - CARRIER

54 7024794

  • 7024794 - RING
  • INNER

55 7024795

  • 7024795 - BEARING
  • NEEDLE

56 7007233

  • 7007233 - BEARING NEEDLE

57 7024796

  • 7024796 - GEAR

58 7024797

  • 7024797 - GEAR

59 7007400

  • 7007400 - GEAR SUN NO.2

60 7007210

  • 7007210 - GEAR NO.1 SUN

61 7007212

  • 7007212 - WASHER NO.1 THRUST

62 7024798

  • 7024798 - PLATE

63 7007325

  • 7007325 - WASHER THRUST

64 7004674

  • 7004674 - PLUG PT3/8

65 7004671

  • 7004671 - PLUG PT 1/8

66 7007760

  • 7007760 - BOLT SOCKET

67 7024799

  • 7024799 - PIN

68 7029253

  • 7029253 - PIN

69 7024800

  • 7024800 - PIN
  • SPRING

70 7277015

  • 7277015 - PIN
  • SPRING

71 7277016

  • 7277016 - PIN

72 7024872

  • 7024872 - CARRIER
  • MOTOR
  • Ref. 37
  • 109
  • 112
  • 114
  • 116
  • 119 & 121

73 7028870

  • 7028870 - GEAR
  • IDLE ASSY
  • Ref. 108
  • 113
  • 115
  • 120
  • 126 & 127 - Was 7024873

74 7007415

  • 7007415 - KIT
  • SEAL
  • Ref. 6
  • 27-32 & 105
